Viking MR4082.2 - Dashboard - Parts Diagram

Viking MR4082.2 - Dashboard - Parts Diagram

Part No. mr4082_2_dashboard-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

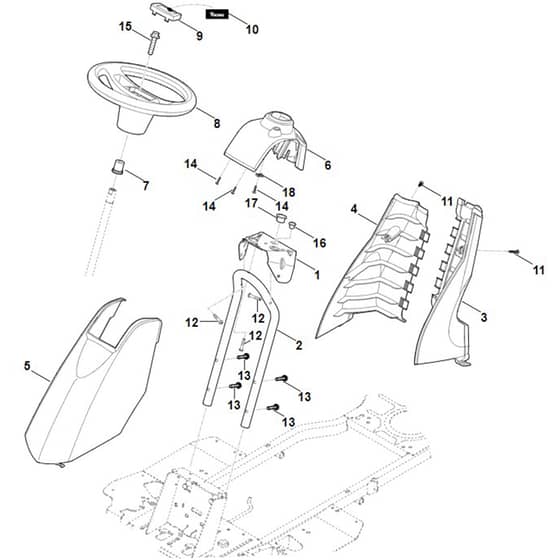

Viking MR4082.2 - Dashboard - Parts Diagram

Viking MR4082.2 - Dashboard - Parts Diagram

Description

Viking MR4082.2 - Dashboard - Parts Diagram

Ref.		Img.	Part No.	Details
	1		ST6140 703 6210 Available to backorder	Bracket		£50.75 £42.29
	2		ST6140 703 9111 Available to backorder	Tube		£98.40 £82.00
	3		ST6140 706 0720 Available to backorder	Cover left		£38.34 £31.95
	4		ST6140 706 0725 Available to backorder	Cover right		£38.34 £31.95
	6		ST6140 706 6200 Available to backorder	Instrument panel		£40.63 £33.86
	7		ST6170 703 5800 Available to backorder	Connecting piece		£13.66 £11.38
	8		ST6170 760 0200 Available to backorder	Steering wheel		£47.46 £39.55
	9		ST6170 760 2600 Available to backorder	Cap (Contains 10)		£23.32 £19.43
	10		ST6170 967 4410 Available to backorder	Sticker VIKING		£2.15 £1.79
	11		ST9039 488 1287 Available to backorder	Self-tapping screw M6x22		£1.03 £0.86
	12		ST9039 488 1380 Available to backorder	Self-tapping screw M6x35		£1.16 £0.97
	13		ST9039 488 1846 Available to backorder	Self-tapping screw M8x35		£1.46 £1.22
	14		ST9104 007 4289 In stock	Self-tapping screw P5x20		£0.95 £0.79
	15		ST9018 318 3071 Available to backorder	Hexagon head screw M12x55		£2.51 £2.09
	16		ST9533 003 9223 Available to backorder	Collar bushing		£2.96 £2.47
	17		ST9533 003 9246 Available to backorder	Flange sleeve		£7.51 £6.26
	18		ST9991 003 0712 Available to backorder	Slip-on nut 48		£1.14 £0.95

Description

Viking MR4082.2 - Dashboard - Parts Diagram
