Viking MR4082.1 - Steering, Front Wheel - Parts Diagram

Name: Viking MR4082.1 - Steering, Front Wheel - Parts Diagram
SKU: mr4082_1_steering_front_wheel-group
Price: 0.28 GBP
Availability: InStock

Part No. mr4082_1_steering_front_wheel-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Viking MR4082.1 - Steering, Front Wheel - Parts Diagram

Description

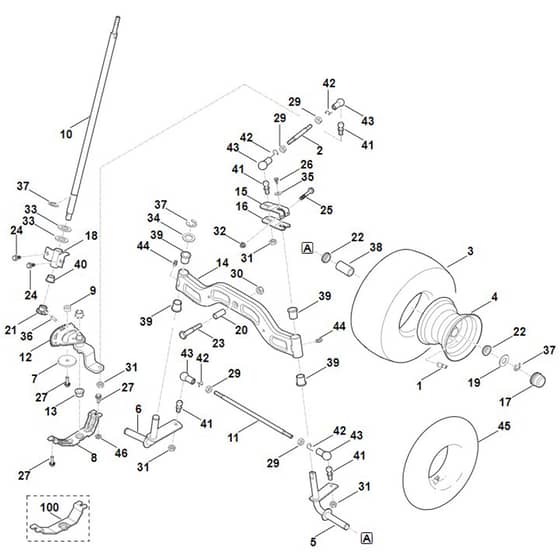

Viking MR4082.1 - Steering, Front Wheel - Parts Diagram

	Part No.	Details
1	ST0000 731 7700 Available to backorder	Valve	£7.97 £6.64
0	ST6140 700 0400 Available to backorder	Wheel assy. 13" (Contains 1+3+4+22+38)	£83.04 £69.20
3	ST6140 704 9510 Available to backorder	Tyre 13x5.0-6	£76.44 £63.70
4	ST6140 760 3910 Available to backorder	Rim	£59.75 £49.79
5	ST6140 760 5000 Available to backorder	Axle stub left	£55.54 £46.28
6	ST6140 760 5005 Available to backorder	Axle stub right	£55.54 £46.28
7	ST6140 763 0900 Available to backorder	Washer	£9.79 £8.16
8	ST6140 760 5201 Available to backorder	Mounting (Contains 13)	£45.52 £37.93
9	ST6140 763 3400 Available to backorder	Bushing	£5.57 £4.64
12	ST6140 780 3600 Available to backorder	Toothed section	£54.62 £45.52
13	ST6170 162 3700 Available to backorder	Bearing bushing	£6.04 £5.03
14	ST6170 700 2405 Available to backorder	Axle assy. (Contains 39+44)	£114.36 £95.30
15	ST6170 703 6711 Available to backorder	Lever	£13.32 £11.10
16	ST6170 703 6716 Available to backorder	Lever	£13.20 £11.00
17	ST6170 708 7420 Available to backorder	Cap	£4.45 £3.71
18	ST6170 760 5200 Available to backorder	Mounting	£40.28 £33.57
19	ST6170 763 0910 Available to backorder	Washer 42	£4.88 £4.07
20	ST6170 763 3010 Available to backorder	Bearing bushing	£12.19 £10.16
21	ST6170 763 6100 In stock	Pinion	£24.65 £20.54
22	ST6170 764 2700 In stock	Collar bushing	£5.06 £4.22
23	ST9007 319 3080 Available to backorder	Hexagon head screw M12x60	£2.63 £2.19
24	ST9018 318 1801 Available to backorder	Hexagon head screw M8x20	£1.03 £0.86
25	ST9018 318 1960 Available to backorder	Hexagon head screw M8x55	£1.94 £1.62
26	ST9039 488 0996 Available to backorder	Self-tapping screw M6x12	£0.79 £0.66
27	ST9039 488 1839 Available to backorder	Self-tapping screw M8x25	£1.26 £1.05
29	ST9210 261 1300 Available to backorder	Hexagon nut M10	£0.91 £0.76
30	ST9212 263 1400 Available to backorder	Hexagon nut M12	£1.26 £1.05
31	ST9212 263 1301 Available to backorder	Hexagon nut M10x1	£0.91 £0.76
32	ST9216 261 1100 In stock	Hexagon nut M8	£0.79 £0.66
33	ST9296 021 1694 Available to backorder	Shim ring 20x28x15	£0.68 £0.57
34	ST9291 021 0330 Available to backorder	Washer 21	£0.91 £0.76
35	ST9307 021 0140 In stock	Washer 64	£0.34 £0.28
36	ST9384 620 3120 Available to backorder	Roll pin 6x24	£0.79 £0.66
37	ST9460 624 1500 Available to backorder	E-clip 15	£0.46 £0.38
38	ST9512 003 4660 In stock	Needle roller and cage 20x30x65	£7.46 £6.22
39	ST9533 003 0000 Available to backorder	Bushing	£13.43 £11.19
40	ST9533 003 9246 Available to backorder	Flange sleeve	£7.51 £6.26
41	ST9666 003 5114 Available to backorder	Ball stud M10x1 C16	£9.46 £7.88
42	ST9666 003 7016 Available to backorder	Circlip	£1.72 £1.43
43	ST9666 003 7024 Available to backorder	Ball socket B16	£12.74 £10.62
44	ST9794 003 1851 Available to backorder	Grease Nipple M6	£1.46 £1.22
45	ST0000 704 6790 Available to backorder	Hose 13x50 - 6	£24.25 £20.21
46	ST9220 263 1100 Available to backorder	Hexagon nut M8	£0.79 £0.66
