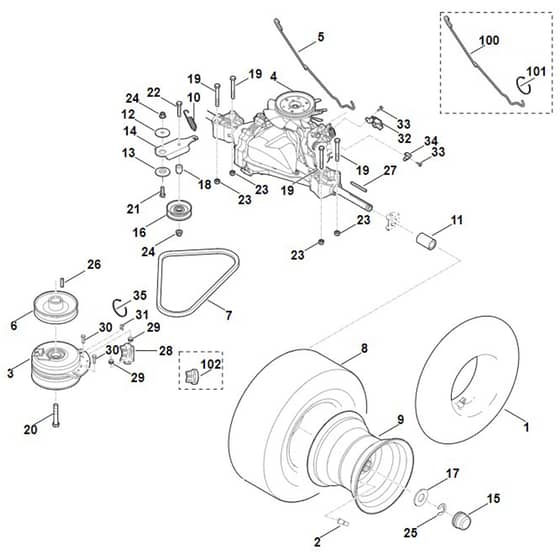

Viking MR4082.1 - Gearbox, Rear Wheel - Parts Diagram

Name: Viking MR4082.1 - Gearbox, Rear Wheel - Parts Diagram
SKU: mr4082_1_gearbox_rear_wheel-group
Price: 0.38 GBP
Availability: InStock

Part No. mr4082_1_gearbox_rear_wheel-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Viking MR4082.1 - Gearbox, Rear Wheel - Parts Diagram

Description

Viking MR4082.1 - Gearbox, Rear Wheel - Parts Diagram

	Part No.	Details
1	ST6152 704 6700 Available to backorder	Hose 16x65	£30.62 £25.52
0	ST6140 700 0410 Available to backorder	Wheel assy. 16" (Contains 2+8+9)	£118.80 £99.00
2	ST0000 731 7700 Available to backorder	Valve	£7.97 £6.64
3	ST6140 160 2002 Available to backorder	Blade clutch (Contains 28+29+30)	£265.08 £220.90
4	ST6140 640 0100 Available to backorder	T2-BDBF-2x3C-1Nx1	£799.13 £665.94
5	ST6140 647 3501 Available to backorder	Lever	£23.21 £19.34
6	ST6140 700 2500 In stock	V-belt pulley	Was £84.16 £70.13 Special Price £56.93 £47.44
7	ST6140 704 2100 Available to backorder	V-belt	£26.74 £22.28
8	ST6140 704 9500 Available to backorder	Tyre 16x6.5-8	£99.00 £82.50
9	ST6140 760 3900 Available to backorder	Rim	£89.16 £74.30
10	ST6140 764 1600 Available to backorder	Tension spring	£3.19 £2.66
11	ST6140 764 2800 Available to backorder	Distance sleeve	£6.14 £5.12
12	ST6140 958 0200 Available to backorder	Washer	£3.64 £3.03
13	ST6170 703 1920 Available to backorder	Collar bearing	£3.86 £3.22
14	ST6170 704 2200 Available to backorder	Bolt lever	£16.97 £14.14
15	ST6170 708 7420 Available to backorder	Cap	£4.45 £3.71
16	ST6170 007 1003 In stock	Conversion kit (idler wheel)	£46.79 £38.99
17	ST6170 763 0910 Available to backorder	Washer 42	£4.88 £4.07
18	ST6170 764 2801 Available to backorder	Distance sleeve	£5.46 £4.55
19	ST9007 318 1980 Available to backorder	Hexagon head screw M8x65	£2.05 £1.71
20	ST9007 345 9236 Available to backorder	Hexagon head screw 7/16"x21/2"	£9.11 £7.59
21	ST9008 318 1830 Available to backorder	Hexagon head screw M8x25	£1.26 £1.05
22	ST9008 318 1900 Available to backorder	Hexagon head screw M8x40	£1.46 £1.22
23	ST9212 260 1100 In stock	Hexagon nut M8	£0.72 £0.60
24	ST9216 261 1100 In stock	Hexagon nut M8	£0.79 £0.66
25	ST9460 624 1500 Available to backorder	E-clip 15	£0.46 £0.38
26	ST9471 435 1602 Available to backorder	Key B1/4"SQx1"	£2.40 £2.00
27	ST9471 435 1622 Available to backorder	Key 3/16"SQx21/4"	£2.51 £2.09
31	ST6140 162 4500 Available to backorder	Clip	£2.05 £1.71
32	ST6170 403 2310 Available to backorder	Support	£4.45 £3.71
33	ST9039 488 0958 In stock	Self-tapping screw M5x10	£0.83 £0.69
34	ST6170 647 1100 Available to backorder	Angle piece	£1.72 £1.43
100	ST6140 647 3500 Available to backorder	Lever	£26.46 £22.05
101	ST0751 010 7232 Available to backorder	Cable tie	£2.63 £2.19
102	ST6140 007 1800 Available to backorder	Repair kit (brake lining) (Contains 29+30)	£70.44 £58.70
102	ST6140 007 1010 Available to backorder	Repair kit (brake lining) (Contains 29+30)	£28.00 £23.33
