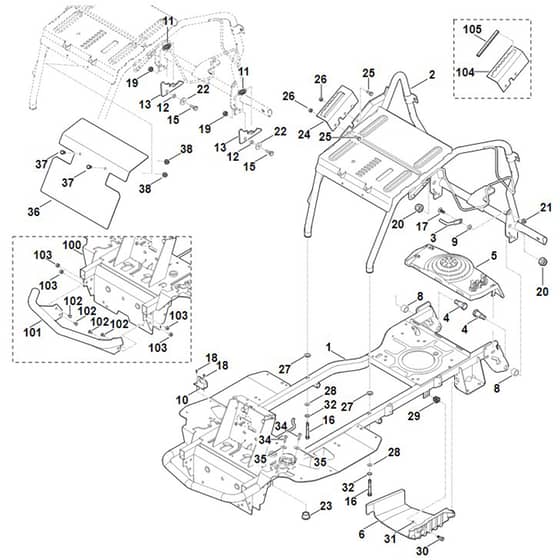

Viking MR4082.1 - Frame - Parts Diagram

Name: Viking MR4082.1 - Frame - Parts Diagram
SKU: mr4082_1_frame-group
Price: 0.4 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Viking MR4082.1 - Frame - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	ST6140 700 3122 Available to backorder	Frame (Contains 23)	£390.00 £325.00
2	ST6140 700 3125 Available to backorder	Frame upper section	£227.40 £189.50
3	ST6140 703 6730 Available to backorder	Lever	£11.00 £9.17
4	ST6140 703 9020 Available to backorder	Bolt	£4.18 £3.48
5	ST6140 706 0800 Available to backorder	Guard	£21.22 £17.68
6	ST6140 706 2110 Available to backorder	Shroud	£28.82 £24.02
8	ST6140 763 3000 Available to backorder	Bearing bushing	£6.04 £5.03
9	ST6140 763 3200 Available to backorder	Flange sleeve	£3.96 £3.30
11	ST6170 703 5120 Available to backorder	Tension spring	£1.88 £1.57
12	ST6170 763 0720 Available to backorder	Distance sleeve	£1.42 £1.18
13	ST6170 763 6010 Available to backorder	Interlock lever	£9.68 £8.07
15	ST9008 318 1800 Available to backorder	Hexagon head screw M8x20	£1.00 £0.83
16	ST0000 703 3720 Available to backorder	Hexagon bolt with machined grooves M8x65	£1.98 £1.65
17	ST9027 068 1830 Available to backorder	Flat head screw M8x25	£1.22 £1.02
18	ST9039 488 0661 Available to backorder	Self-tapping screw M4x10	£0.76 £0.63
20	ST9212 260 1500 Available to backorder	Hexagon nut M14	£1.42 £1.18
21	ST9216 261 1100 Available to backorder	Hexagon nut M8	£0.76 £0.63
22	ST9307 021 0180 Available to backorder	Washer 84	£0.48 £0.40
23	ST6170 162 3700 Available to backorder	Bearing bushing	£5.84 £4.87
24	ST6140 703 9511 Available to backorder	Notched plate	£45.10 £37.58
27	ST0000 958 7201 Available to backorder	E-clip	£2.08 £1.73
28	ST9310 021 0180 Available to backorder	Washer 8.4	£0.48 £0.40
29	ST0000 952 0201 Available to backorder	Snap-in detent counterpart	£3.30 £2.75
30	ST0000 952 0202 Available to backorder	Plug	£3.30 £2.75
31	ST0000 952 0203 Available to backorder	Push-on retaining ring	£1.98 £1.65
32	ST9330 630 0180 Available to backorder	Shakeproof washer 8.4	£0.48 £0.40

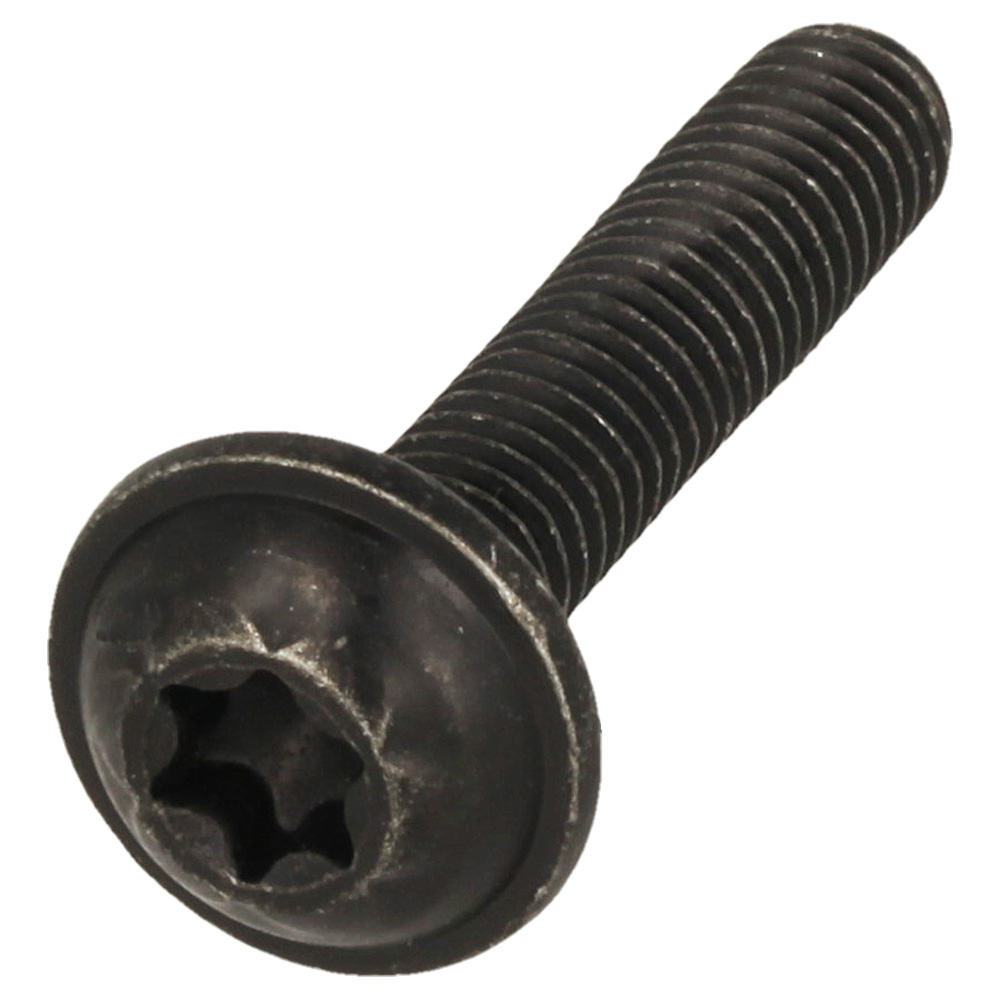

34	ST9039 488 1290 Available to backorder	Self-tapping screw M6x30	£1.22 £1.02
35	ST9307 010 0140 Available to backorder	Washer 64	£0.48 £0.40
36	ST6140 145 3700 Available to backorder	Guard plate	£41.92 £34.93
37	ST9008 318 1270 Available to backorder	Hexagon head screw M6x14	£0.88 £0.73
38	ST9216 261 0901 Available to backorder	Hexagon nut M6	£0.66 £0.55
102	ST9008 318 1780 Available to backorder	Hexagon head screw M8x16	£1.00 £0.83
103	ST9212 260 1100 In stock	Hexagon nut M8	£0.66 £0.55
