Viking MR4082.1 - Blade Drive - Parts Diagram

Name: Viking MR4082.1 - Blade Drive - Parts Diagram
SKU: mr4082_1_blade_drive-group
Price: 0.4 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Viking MR4082.1 - Blade Drive - Parts Diagram

Description

Viking MR4082.1 - Blade Drive - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	ST0000 702 6600 In stock	Washer	£4.18 £3.48
0	ST6140 007 1030 Available to backorder	Tensioner arm set (Contains 2+6+18+26)	£36.86 £30.72
1	ST6140 700 3501 Available to backorder	Shaft assy. (Contains 1+4+9+11+12+14+16+20+24+27-31)	£161.70 £134.75
2	ST6140 764 2821 Available to backorder	Distance sleeve	£9.14 £7.62
3	ST6140 702 0100 Available to backorder	Blade	£78.10 £65.08
4	ST6140 702 0700 Available to backorder	Shaft	£65.44 £54.53
5	ST6140 704 2110 In stock	V-belt	£54.22 £45.18
6	ST6140 764 2601 Available to backorder	Clamping arm	£24.42 £20.35
7	ST6140 760 6600 Available to backorder	Pulley	£33.88 £28.23
8	ST6140 764 2810 Available to backorder	Distance sleeve	£14.42 £12.02
9	ST6140 700 2520 Available to backorder	V-belt pulley with torsional damper (Contains 11+28-31)	£108.90 £90.75
10	ST6140 958 0200 Available to backorder	Washer	£3.52 £2.93
11	ST6140 764 0410 Available to backorder	Hub	£20.24 £16.87
12	ST6170 702 1800 Available to backorder	Washer	£1.88 £1.57
13	ST6170 702 2200 In stock	Protection disk	£2.98 £2.48
14	ST6170 702 2210 Available to backorder	Protection disk	£4.96 £4.13
15	ST6170 702 3800 In stock	Knife clip	£13.64 £11.37
16	ST6170 702 6910 Available to backorder	Bearing bracket	£90.20 £75.17

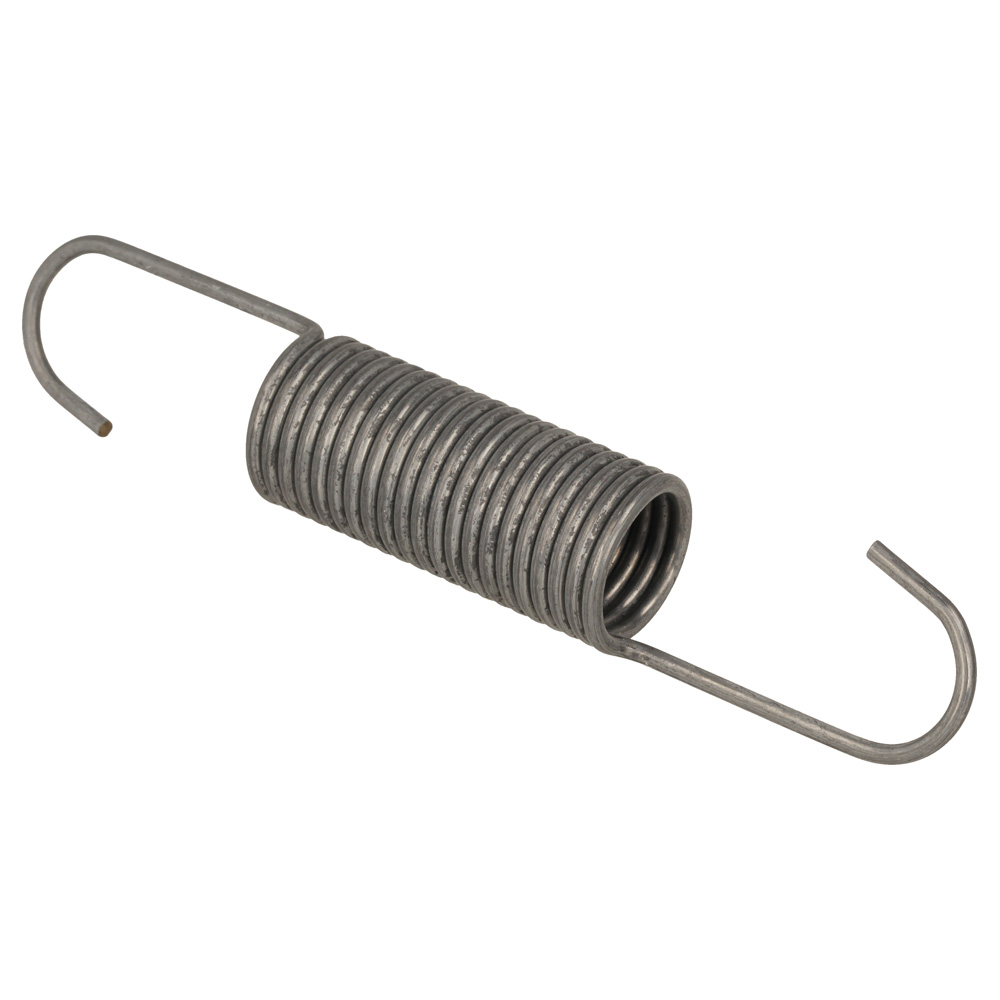

18	ST6140 764 1610 Available to backorder	Tension spring	£4.18 £3.48
19	ST9008 319 1970 Available to backorder	Hexagon head screw M8x60	£1.98 £1.65
20	ST9010 345 2431 In stock	Hexagon head screw M10x1x35	£1.54 £1.28
21	ST9039 488 1839 Available to backorder	Self-tapping screw M8x25	£1.22 £1.02
22	ST9212 260 1100 In stock	Hexagon nut M8	£0.66 £0.55
23	ST9310 021 0180 Available to backorder	Washer 8.4	£0.48 £0.40
24	ST9503 003 6841 Available to backorder	Grooved ball bearing 6205-2RS	£14.08 £11.73
26	ST9007 318 1980 Available to backorder	Hexagon head screw M8x65	£1.98 £1.65
27	ST9645 945 7699 Available to backorder	O-ring 23x15	£0.66 £0.55
28	ST6140 704 7000 Available to backorder	Carrier	£32.90 £27.42
29	ST6140 708 8900 Available to backorder	Intermediate ring	£2.54 £2.12
30	ST6140 708 2800 Available to backorder	Buffer	£2.08 £1.73
31	ST9074 477 4420 Available to backorder	Screw IS P6x30	£1.22 £1.02
101	ST6170 702 0600 Available to backorder	Carrier	£10.66 £8.88
103	ST6170 703 5150 Available to backorder	Tension spring	£5.84 £4.87
104	ST6140 764 2820 Available to backorder	Distance sleeve	£11.00 £9.17
105	ST9008 319 2000 Available to backorder	Hexagon head screw M8x75	£2.32 £1.93
