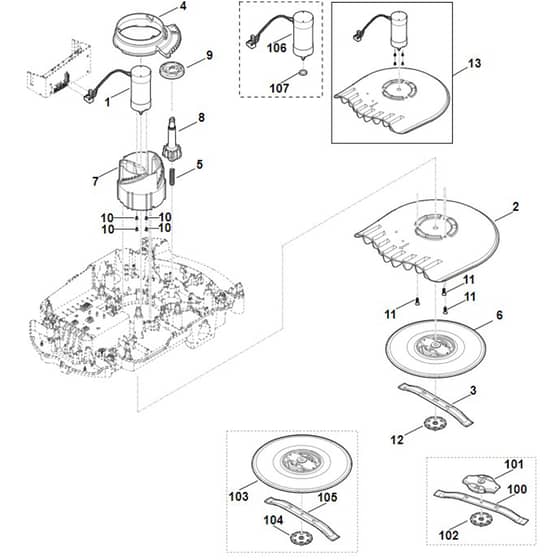

Viking MI632.0 P - Mowing Deck, Height Adjustment - Parts Diagram

Name: Viking MI632.0 P - Mowing Deck, Height Adjustment - Parts Diagram
SKU: mi632_0_p_mowing_deck_height_adjustment-group
Price: 0.76 GBP
Availability: InStock

Part No. mi632_0_p_mowing_deck_height_adjustment-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Viking MI632.0 P - Mowing Deck, Height Adjustment - Parts Diagram

Description

Viking MI632.0 P - Mowing Deck, Height Adjustment - Parts Diagram

	Part No.	Details
1	ST6309 600 0202 Available to backorder	Electric motor (Contains 10)	£179.28 £149.40
2	ST6309 701 1011 Available to backorder	Housing	£43.37 £36.14
3	ST6309 702 0102 In stock	Blade 280 / 11"	£27.02 £22.52
3	ST6309 007 1022 Available to backorder	Set of blades (10 pieces)	£191.40 £159.50
4	ST6309 703 4800 Available to backorder	Toothed disc	£12.52 £10.43
5	ST6309 703 6400 Available to backorder	Compression spring	£1.94 £1.62
7	ST6309 763 4200 Available to backorder	Adjusting device	£33.46 £27.88
8	ST6309 763 6100 Available to backorder	Pinion	£22.08 £18.40
9	ST6309 763 6400 Available to backorder	Rotary handle	£7.18 £5.98
11	ST9104 003 4430 Available to backorder	Self-tapping screw P6x20	£0.91 £0.76
13	ST6309 007 1002 Available to backorder	Mowing motor conversion kit (Contains 1+2+10)	£152.88 £127.40

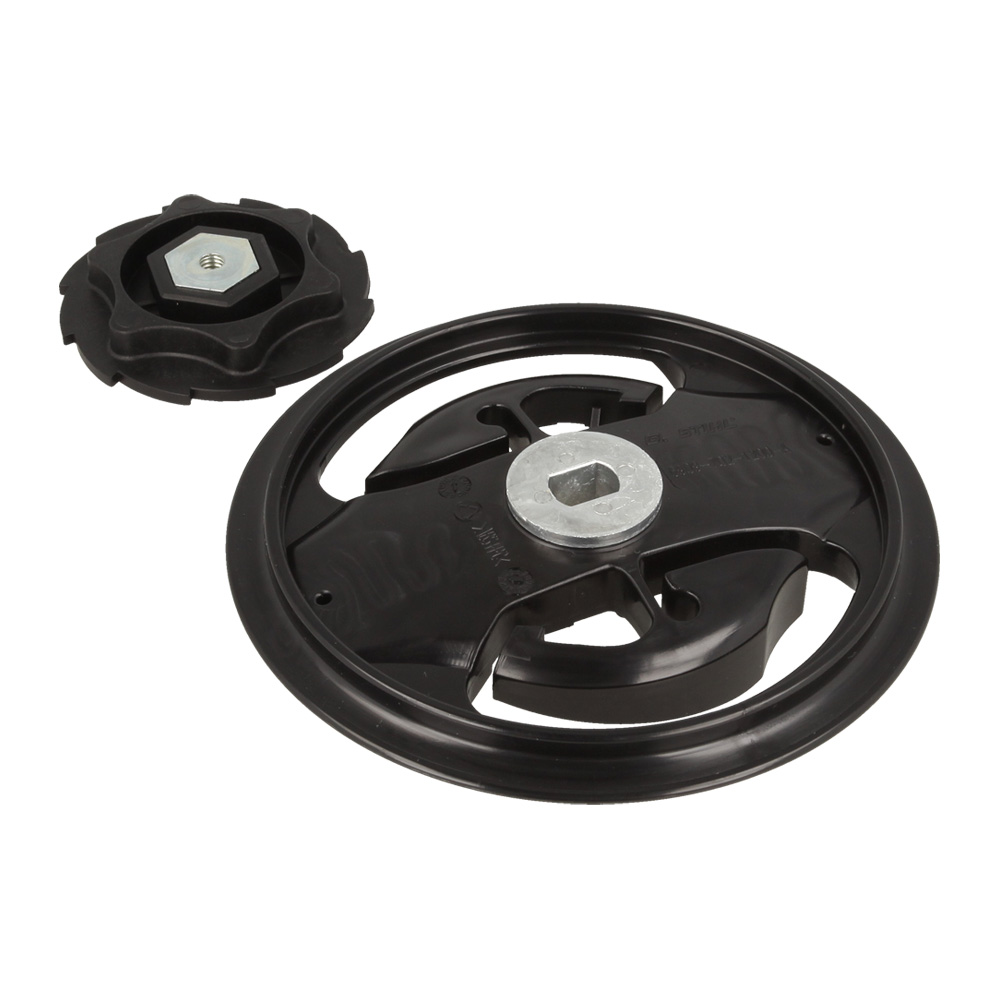

101	ST6309 760 9701 Available to backorder	Coupler assy. (Contains 102)	£25.16 £20.97
103	ST6909 760 9700 In stock	Coupler assy. (Contains 104)	£32.44 £27.03
106	ST6309 600 0210 Available to backorder	Electric motor (Contains 107)	£176.28 £146.90
107	ST6309 609 0200 Available to backorder	Seal ring (felt)	£2.40 £2.00
