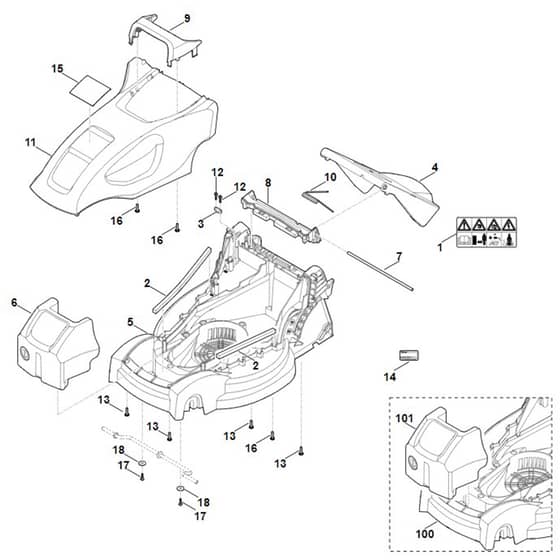

Viking ME235.0 - Housing - Parts Diagram

Description

	Part No.	Details
1	ST0000 967 7309 Available to backorder	Warning note	£2.08 £1.73
2	ST6311 007 1090 Available to backorder	Filter set	£1.32 £1.10
3	ST6311 430 0800 Available to backorder	Strain relief	£1.10 £0.92
4	ST6311 700 2700 Available to backorder	Flap (Contains 1)	£23.44 £19.53
5	ST6311 700 8595 Available to backorder	Housing (Contains 2)	£114.40 £95.33
6	ST6311 701 9901 Available to backorder	Additional weight	£51.38 £42.82
7	ST6311 703 0900 Available to backorder	Axle	£10.56 £8.80
8	ST6311 706 0700 Available to backorder	Cover	£8.02 £6.68
9	ST6311 706 2200 Available to backorder	Knob	£15.74 £13.12
10	ST6311 708 0805 Available to backorder	Spring	£3.08 £2.57
11	ST6311 760 2290 Available to backorder	Engine hood assy. (Contains 9+15+16)	£42.24 £35.20
12	ST6311 951 3505 Available to backorder	Screw 4x16	£0.76 £0.63
13	ST6311 951 3515 Available to backorder	Screw 5x20	£0.88 £0.73
14	ST0000 967 3453 Available to backorder	Warning sign with machine number	£2.08 £1.73
15	ST6311 967 3800 Available to backorder	Name plate ME 235	£4.52 £3.77
18	ST9307 021 0140 In stock	Washer 64	£0.34 £0.28
100	ST6311 700 8590 Available to backorder	Housing (Contains 2)	£116.26 £96.88
101	ST6311 701 9900 Available to backorder	Additional weight	£52.86 £44.05
