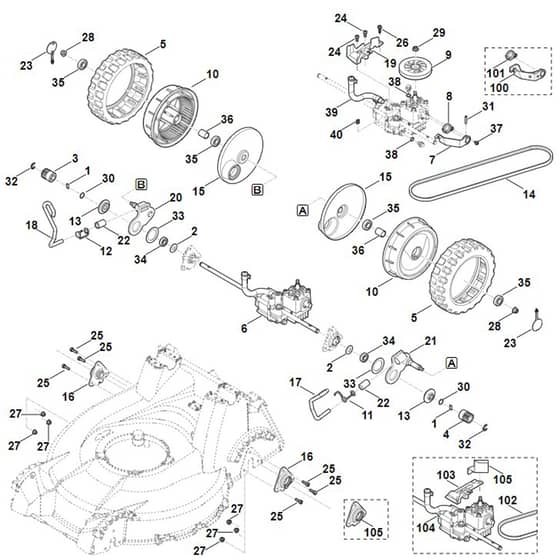

Viking MB756.0 YC - Rear Height Adjustment, Drive - Parts Diagram

Name: Viking MB756.0 YC - Rear Height Adjustment, Drive - Parts Diagram
SKU: mb756_0_yc_rear_height_adjustment_drive-group
Price: 0.28 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Viking MB756.0 YC - Rear Height Adjustment, Drive - Parts Diagram

Description

Viking MB756.0 YC - Rear Height Adjustment, Drive - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
-1	ST6378 700 0400 Available to backorder	Wheel assy. (Contains 5+10+35+36)	£61.60 £51.33
0	ST6378 007 1092 Available to backorder	Conversion kit (drive)	£134.20 £111.83
1	ST0000 704 8300 In stock	Freewheel key	£1.66 £1.38
2	ST6378 007 1091 Available to backorder	Gearbox component set (Contains 8+31+40)	£129.12 £107.60
2	ST6103 704 7910 Available to backorder	Protection disk	£1.10 £0.92
3	ST6105 704 7400 In stock	Pinion	£13.76 £11.47
4	ST6105 704 7410 In stock	Pinion	£13.96 £11.63
5	ST6375 704 9500 Available to backorder	Tyre	£41.92 £34.93
6	ST6378 640 0102 Available to backorder	Hydrostatic gearbox (Contains 7+8+19+24+26+31+37-39)	£396.00 £330.00
7	ST6378 640 6401 Available to backorder	Lever	£41.58 £34.65
8	ST6378 641 3102 Available to backorder	Spring	£2.74 £2.28
8	ST6378 641 3101 Available to backorder	Spring	£18.60 £15.50
9	ST6378 643 1500 Available to backorder	V-belt pulley	£36.52 £30.43
11	ST6378 703 4900 Available to backorder	Torsion spring left	£2.32 £1.93
12	ST6378 703 4905 Available to backorder	Torsion spring right	£2.32 £1.93
13	ST6378 703 7500 Available to backorder	Locking screw	£20.36 £16.97
14	ST6378 704 2101 Available to backorder	V-belt	£26.84 £22.37
15	ST6378 704 3600 Available to backorder	Cover inside	£18.16 £15.13
17	ST6378 763 2901 Available to backorder	Left adjustment lever	£34.98 £29.15
18	ST6378 763 2906 Available to backorder	Right adjustment lever	£34.98 £29.15
19	ST6378 764 6701 Available to backorder	Counterholder	£23.32 £19.43
20	ST6378 780 4900 Available to backorder	Swivel plate	£53.24 £44.37
21	ST6378 780 4905 Available to backorder	Swivel plate	£53.24 £44.37
22	ST6383 706 7000 Available to backorder	Rubber buffer	£2.42 £2.02
23	ST6395 706 3410 Available to backorder	Cover	£3.20 £2.67
24	ST9022 341 1270 Available to backorder	Screw IS M6x14	£0.88 £0.73
25	ST9022 341 1300 In stock	Pan head screw IS M6x20	£0.88 £0.73
26	ST9070 010 4430 Available to backorder	Bolt with inner hex TT6x20	£0.88 £0.73
27	ST9216 261 0901 Available to backorder	Hexagon nut M6	£0.66 £0.55
28	ST9216 261 1100 Available to backorder	Hexagon nut M8	£0.76 £0.63
29	ST9220 263 1100 Available to backorder	Hexagon nut M8	£0.76 £0.63
30	ST9296 021 1608 Available to backorder	Washer 12x18x0.5	£0.66 £0.55
31	ST9380 620 2621 Available to backorder	Roll pin 5x22	£0.66 £0.55
31	ST9380 620 2660 Available to backorder	Roll pin 5x26	£0.83 £0.69
32	ST9460 624 1001 In stock	E-clip 10	£0.34 £0.28
33	ST9485 648 4175 Available to backorder	Cup spring 9x5.3x1	£1.54 £1.28
34	ST9503 003 5297 In stock	Grooved ball bearing 6001-2TRS	£5.38 £4.48
35	ST9503 003 5295 In stock	Grooved ball bearing 6002-2RS	£5.84 £4.87
37	ST0013 950 9600 Available to backorder	Screw with washer M4x8	£33.22 £27.68
38	ST0013 649 0204 Available to backorder	Sealing ring	£0.48 £0.40
39	ST0013 640 9400 Available to backorder	Hose (gearbox ventilation)	£23.32 £19.43
40	ST6378 643 5100 Available to backorder	Spring (bypass)	£1.10 £0.92
100	ST6378 640 6400 Available to backorder	Lever	£23.32 £19.43
101	ST6378 641 3100 Available to backorder	Spring	£4.38 £3.65
102	ST6378 704 2100 Available to backorder	V-belt	£28.06 £23.38
103	ST6378 764 6700 Available to backorder	Counterholder	£49.46 £41.22
104	ST6378 640 0100 Available to backorder	Hydrostatic gearbox (Contains 7+8+24+26+31+37-39+103)	£404.40 £337.00
105	ST6378 704 9400 Available to backorder	Belt guide	£10.12 £8.43
105	ST6392 760 4900 Available to backorder	Bearing bracket	£79.76 £66.47
