Viking MB756.0 GS - Rear Height Adjustment, Drive - Parts Diagram

Description

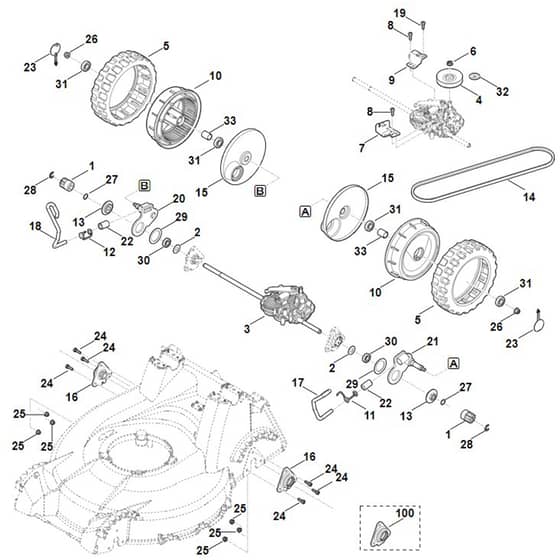

Viking MB756.0 GS - Rear Height Adjustment, Drive - Parts Diagram

	Part No.	Details
1	ST0000 704 7400 Available to backorder	Pinion	£14.34 £11.95
0	ST6378 700 0400 Available to backorder	Wheel assy. (Contains 5+10+31+32)	£61.56 £51.30
2	ST6103 704 7910 In stock	Protection disk	£1.19 £0.99
3	ST6378 640 0110 Available to backorder	Gear box (Contains 4+6+32)	£227.16 £189.30
4	ST6378 007 1000 Available to backorder	V-belt pulley set (Contains 6+32)	£38.59 £32.16
5	ST6375 704 9500 Available to backorder	Tyre	£43.37 £36.14
7	ST6378 764 6710 Available to backorder	Counterholder	£12.52 £10.43
8	ST9039 488 1288 Available to backorder	Self-tapping screw M6x20	£0.91 £0.76
9	ST6378 704 2710 Available to backorder	Support	£7.28 £6.07
11	ST6378 703 4900 Available to backorder	Torsion spring left	£2.40 £2.00
12	ST6378 703 4905 Available to backorder	Torsion spring right	£2.50 £2.08
13	ST6378 703 7500 Available to backorder	Locking screw	£21.06 £17.55
14	ST6378 704 2110 Available to backorder	V-belt	£26.52 £22.10
15	ST6378 704 3600 Available to backorder	Cover inside	£18.79 £15.66
17	ST6378 763 2901 Available to backorder	Left adjustment lever	£36.19 £30.16
18	ST6378 763 2906 Available to backorder	Right adjustment lever	£36.19 £30.16
19	ST9076 478 4430 Available to backorder	Screw IS AP6x20	£1.03 £0.86
20	ST6378 780 4900 Available to backorder	Swivel plate	£55.08 £45.90
21	ST6378 780 4905 Available to backorder	Swivel plate	£55.08 £45.90
22	ST6383 706 7000 Available to backorder	Rubber buffer	£2.51 £2.09
23	ST6395 706 3410 Available to backorder	Cover	£3.31 £2.76
24	ST9022 341 1300 In stock	Pan head screw IS M6x20	£0.95 £0.79
25	ST9216 261 0901 Available to backorder	Hexagon nut M6	£0.68 £0.57
26	ST9216 261 1100 In stock	Hexagon nut M8	£0.79 £0.66
27	ST9296 021 1608 In stock	Washer 12x18x0.5	£0.72 £0.60
28	ST9455 621 1130 In stock	Circlip 12x1	£0.68 £0.57
29	ST9485 648 4175 Available to backorder	Cup spring 9x5.3x1	£1.60 £1.33
30	ST9503 003 5297 Available to backorder	Grooved ball bearing 6001-2TRS	£5.77 £4.81
31	ST9503 003 5295 In stock	Grooved ball bearing 6002-2RS	£6.25 £5.21
100	ST6392 760 4900 Available to backorder	Bearing bracket	£79.80 £66.50
