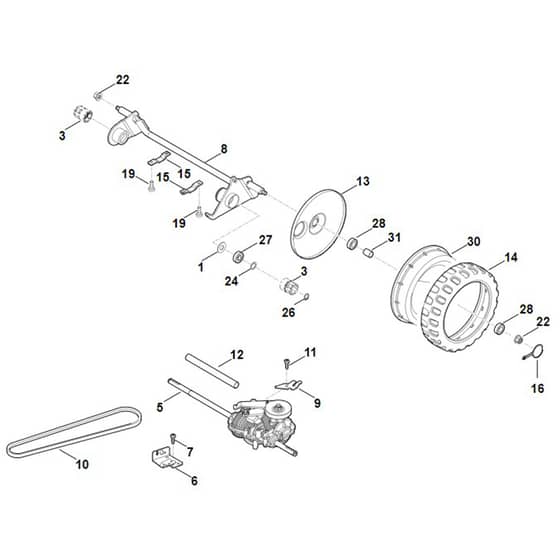

Viking MB755.2 KS - Shaft, Drive - Parts Diagram

Name: Viking MB755.2 KS - Shaft, Drive - Parts Diagram
SKU: mb755_2_ks_shaft_drive-group
Price: 0.57 GBP
Availability: InStock

Part No. mb755_2_ks_shaft_drive-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Viking MB755.2 KS - Shaft, Drive - Parts Diagram

Description

Viking MB755.2 KS - Shaft, Drive - Parts Diagram

	Part No.	Details
-1	ST6375 007 1083 Available to backorder	Conversion kit (Gear box) (Contains A 8+31 + F 3+5+6+7+9+11+12)	£210.96 £175.80
0	ST6378 700 0400 Available to backorder	Wheel assy. (Contains 14+28+30+31)	£61.56 £51.30
1	ST6375 700 0416 Available to backorder	Wheel assy. (Contains 14+28+30+31)	£53.11 £44.26
1	ST6103 704 7910 In stock	Protection disk	£1.19 £0.99
3	ST0000 704 7400 Available to backorder	Pinion	£14.34 £11.95
5	ST6375 640 0190 Available to backorder	Gear box	£218.52 £182.10
6	ST6378 764 6710 Available to backorder	Counterholder	£12.52 £10.43
8	ST6375 700 2432 Available to backorder	Axle	£64.32 £53.60
9	ST6375 704 2730 Available to backorder	Support	£3.19 £2.66
10	ST6375 704 2110 Available to backorder	V-belt	£25.26 £21.05
11	ST9076 478 4430 Available to backorder	Screw IS AP6x20	£1.03 £0.86
12	ST6375 706 3310 Available to backorder	Tube	£9.11 £7.59
13	ST6375 704 3615 Available to backorder	Cover	£16.61 £13.84
14	ST6375 704 9500 Available to backorder	Tyre	£43.37 £36.14
15	ST6375 763 2810 Available to backorder	Axle guard	£3.19 £2.66
16	ST6395 706 3410 Available to backorder	Cover	£3.31 £2.76
19	ST9075 478 4610 Available to backorder	Pan head screw IS D6x16	£0.91 £0.76
22	ST9216 261 1100 In stock	Hexagon nut M8	£0.79 £0.66
24	ST9296 021 1608 In stock	Washer 12x18x0.5	£0.72 £0.60
26	ST9455 621 1130 In stock	Circlip 12x1	£0.68 £0.57
27	ST9503 003 5297 Available to backorder	Grooved ball bearing 6001-2TRS	£5.77 £4.81
28	ST9503 003 5292 Available to backorder	Grooved ball bearing 6002-2RS	£6.04 £5.03
28	ST9503 003 5295 In stock	Grooved ball bearing 6002-2RS	£6.25 £5.21
