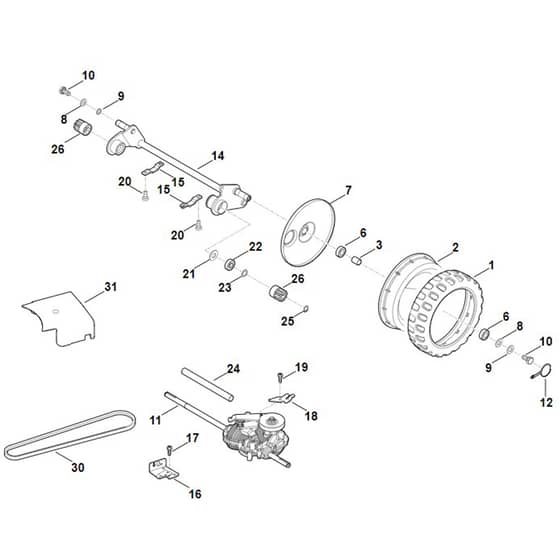

Viking MB755.1 KS - Shaft, Drive - Parts Diagram

Description

Viking MB755.1 KS - Shaft, Drive - Parts Diagram

	Part No.	Details
-1	ST6375 700 0416 Available to backorder	Wheel assy. (Contains 1-3+6)	£53.11 £44.26
0	ST6378 700 0400 Available to backorder	Wheel assy. (Contains 1-3+6)	£61.56 £51.30
1	ST6375 007 1082 Available to backorder	Conversion kit (Gear box) (Contains A 2+9+10+26+29+30 + F 11+16-19+24)	£253.20 £211.00
1	ST6375 704 9500 Available to backorder	Tyre	£43.37 £36.14
6	ST9503 003 5295 In stock	Grooved ball bearing 6002-2RS	£6.25 £5.21
7	ST6375 704 3600 Available to backorder	Cover	£15.12 £12.60
10	ST9008 318 2360 In stock	Hexagon head screw M10x20	£1.26 £1.05
11	ST6375 640 0190 Available to backorder	Gear box	£218.52 £182.10
12	ST6395 706 3410 Available to backorder	Cover	£3.31 £2.76
14	ST6375 700 2431 Available to backorder	Axle	£59.88 £49.90
15	ST6375 763 2810 Available to backorder	Axle guard	£3.19 £2.66
16	ST6378 764 6710 Available to backorder	Counterholder	£12.52 £10.43
17	ST9076 478 4430 Available to backorder	Screw IS AP6x20	£1.03 £0.86
18	ST6375 704 2730 Available to backorder	Support	£3.19 £2.66
20	ST9075 478 4610 Available to backorder	Pan head screw IS D6x16	£0.91 £0.76
20	ST9039 488 0993 Available to backorder	Self-tapping screw M6x16	£0.48 £0.40
21	ST6103 704 7910 In stock	Protection disk	£1.19 £0.99
22	ST9503 003 5297 Available to backorder	Grooved ball bearing 6001-2TRS	£5.77 £4.81
23	ST9296 021 1608 In stock	Washer 12x18x0.5	£0.72 £0.60
24	ST6375 706 3310 Available to backorder	Tube	£9.11 £7.59
25	ST9455 621 1130 In stock	Circlip 12x1	£0.68 £0.57
26	ST0000 704 7400 Available to backorder	Pinion	£14.34 £11.95
30	ST6375 704 2110 Available to backorder	V-belt	£25.26 £21.05
31	ST6375 706 0740 Available to backorder	Cover	£6.37 £5.31
