Viking MB755.1 KS - Frame, Height Adjustment - Parts Diagram

Description

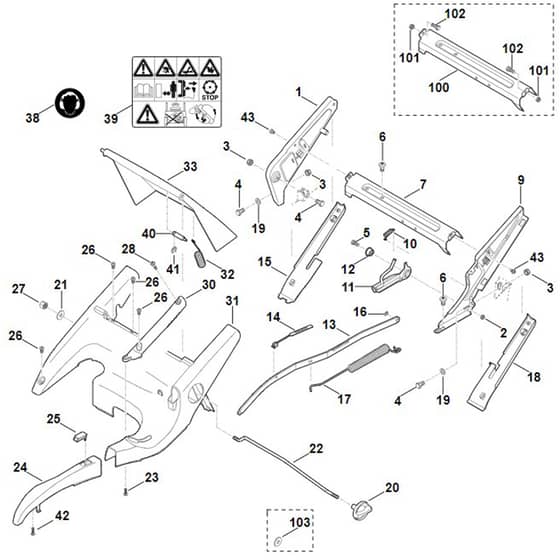

Viking MB755.1 KS - Frame, Height Adjustment - Parts Diagram

	Part No.	Details
1	ST6375 760 4205 Available to backorder	Bracket right	£59.17 £49.31
3	ST9212 260 1100 In stock	Hexagon nut M8	£0.72 £0.60
4	ST9008 318 1780 Available to backorder	Hexagon head screw M8x16	£1.03 £0.86
6	ST9039 488 1502 Available to backorder	Self-tapping screw M8x14	£0.91 £0.76
6	ST9039 488 1550 Available to backorder	Self-tapping screw M8x12	£0.91 £0.76
7	ST6375 763 4501 Available to backorder	Strud	£60.31 £50.26
9	ST6375 760 4291 Available to backorder	Bracket left (Contains 28)	£61.08 £50.90
10	ST6375 703 5111 Available to backorder	Tension spring	£2.15 £1.79
11	ST6375 780 3180 Available to backorder	Notched quadrant (Contains 12)	£29.26 £24.38
12	ST6375 763 3020 Available to backorder	Bearing bushing	£5.36 £4.47
13	ST6375 780 0401 Available to backorder	Translation lever	£51.79 £43.16
14	ST6375 763 2000 In stock	Pointer	£1.72 £1.43
15	ST6375 706 0730 Available to backorder	Cover	£8.51 £7.09
16	ST9460 624 0500 In stock	E-clip 5	£0.53 £0.44
17	ST6375 703 5105 Available to backorder	Tension spring	£27.20 £22.67
18	ST6375 706 0720 Available to backorder	Cover	£9.49 £7.91
19	ST9291 020 0180 Available to backorder	Washer 84	£0.35 £0.29
20	ST6375 760 1800 In stock	Rotary handle assy.	£11.08 £9.23
22	ST6375 703 1700 Available to backorder	Rod	£34.60 £28.83
23	ST9104 007 4270 In stock	Self-tapping screw P5x16	£0.95 £0.79
24	ST6375 780 2091 Available to backorder	Cover assy. (Contains 25)	£23.32 £19.43
25	ST6375 701 3500 Available to backorder	Inspection glass	£1.14 £0.95
26	ST9039 488 0974 In stock	Self-tapping screw M5x12	£0.79 £0.66
27	ST9241 288 1980 Available to backorder	Cap nut M8	£0.79 £0.66
28	ST9070 010 1050 Available to backorder	Screw TT-M5x28	£1.03 £0.86
30	ST6375 703 6601 Available to backorder	Knob	£17.98 £14.98
31	ST6375 706 0700 Available to backorder	Cover	£60.48 £50.40
32	ST6375 703 5120 Available to backorder	Tension spring	£5.81 £4.84
33	ST6375 700 2790 Available to backorder	Flap (Contains 38+39)	£61.45 £51.21
38	ST6002 967 3400 Available to backorder	Label	£2.15 £1.79
39	ST0000 967 4405 Available to backorder	Warning note	£2.15 £1.79
40	ST6375 703 0920 Available to backorder	Axle	£9.46 £7.88
41	ST9460 624 0800 Available to backorder	E-clip 8	£0.35 £0.29
42	ST9104 007 4289 In stock	Self-tapping screw P5x20	£0.95 £0.79
43	ST9039 488 1230 Available to backorder	Self-tapping screw M6x8	£0.77 £0.64
43	ST9039 488 1266 In stock	Self-tapping screw M6x12	£0.79 £0.66
101	ST9212 260 0900 In stock	Hexagon nut M6	£0.48 £0.40
102	ST9008 318 1280 Available to backorder	Hexagon head screw M6x16	£0.91 £0.76
103	ST9307 021 0180 Available to backorder	Washer 84	£0.35 £0.29
