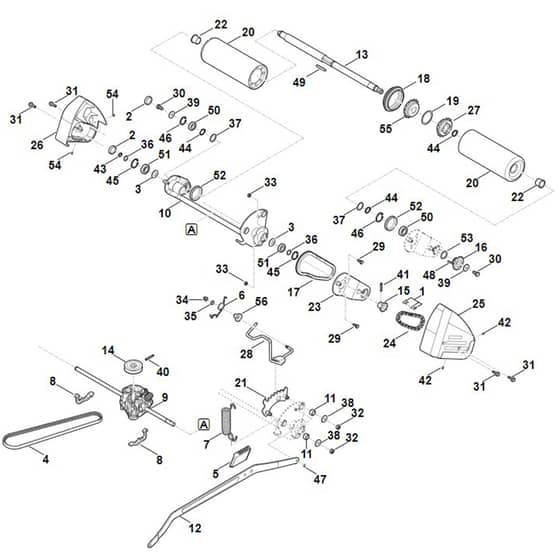

Viking MB655.3 RS - Shaft, Gear Box - Parts Diagram

Name: Viking MB655.3 RS - Shaft, Gear Box - Parts Diagram
SKU: mb655_3_rs_shaft_gear_box-group
Price: 0.39 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Viking MB655.3 RS - Shaft, Gear Box - Parts Diagram

Description

Viking MB655.3 RS - Shaft, Gear Box - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	ST0000 881 3895 Available to backorder	Chain connector 3/8"x7/32"	£4.06 £3.38
2	ST0771 262 2005 Available to backorder	Screw cap	£3.08 £2.57
3	ST6103 704 7910 Available to backorder	Protection disk	£1.10 £0.92
4	ST6360 704 2111 In stock	V-belt	£20.80 £17.33

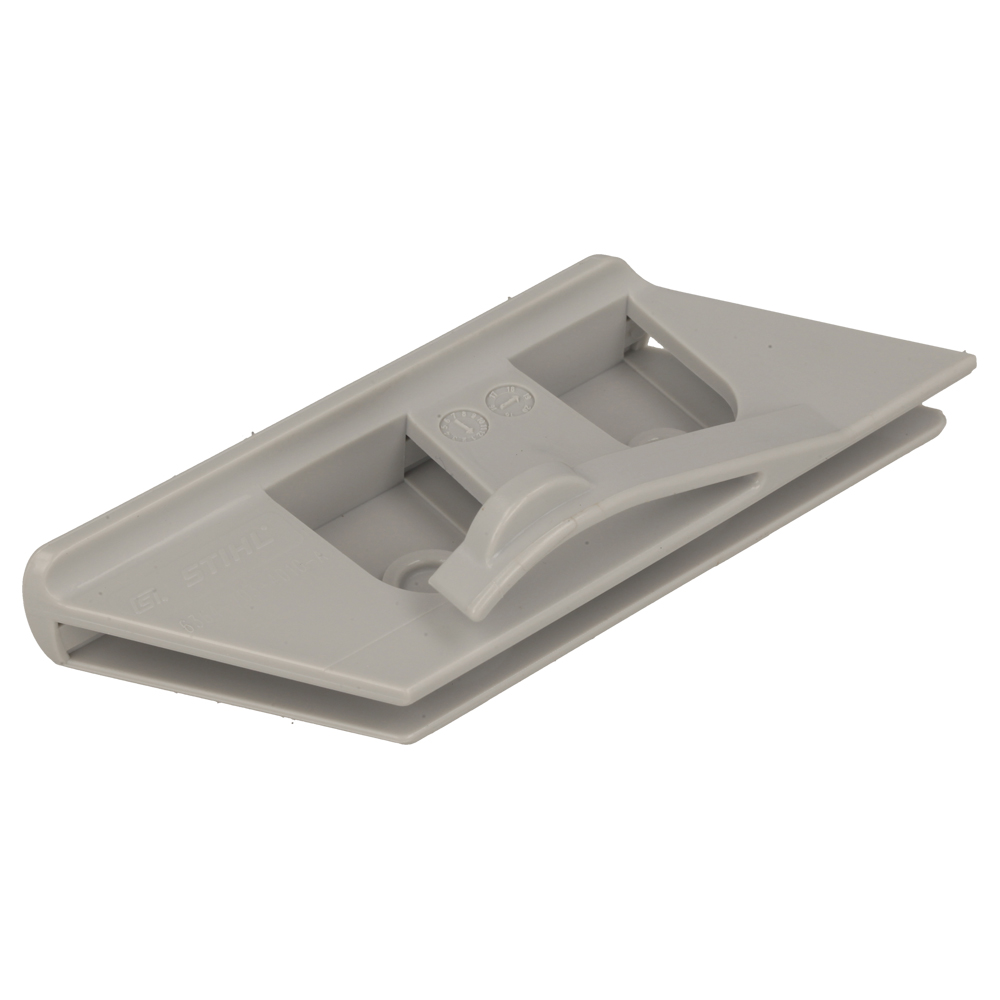

5	ST6364 703 4010 Available to backorder	Clips (cutting height indicator)	£5.06 £4.22
6	ST6364 703 4900 Available to backorder	Torsion spring	£2.08 £1.73
7	ST6364 703 5100 Available to backorder	Tension spring	£19.90 £16.58
8	ST6364 704 1210 Available to backorder	Rear axle bracket	£3.86 £3.22

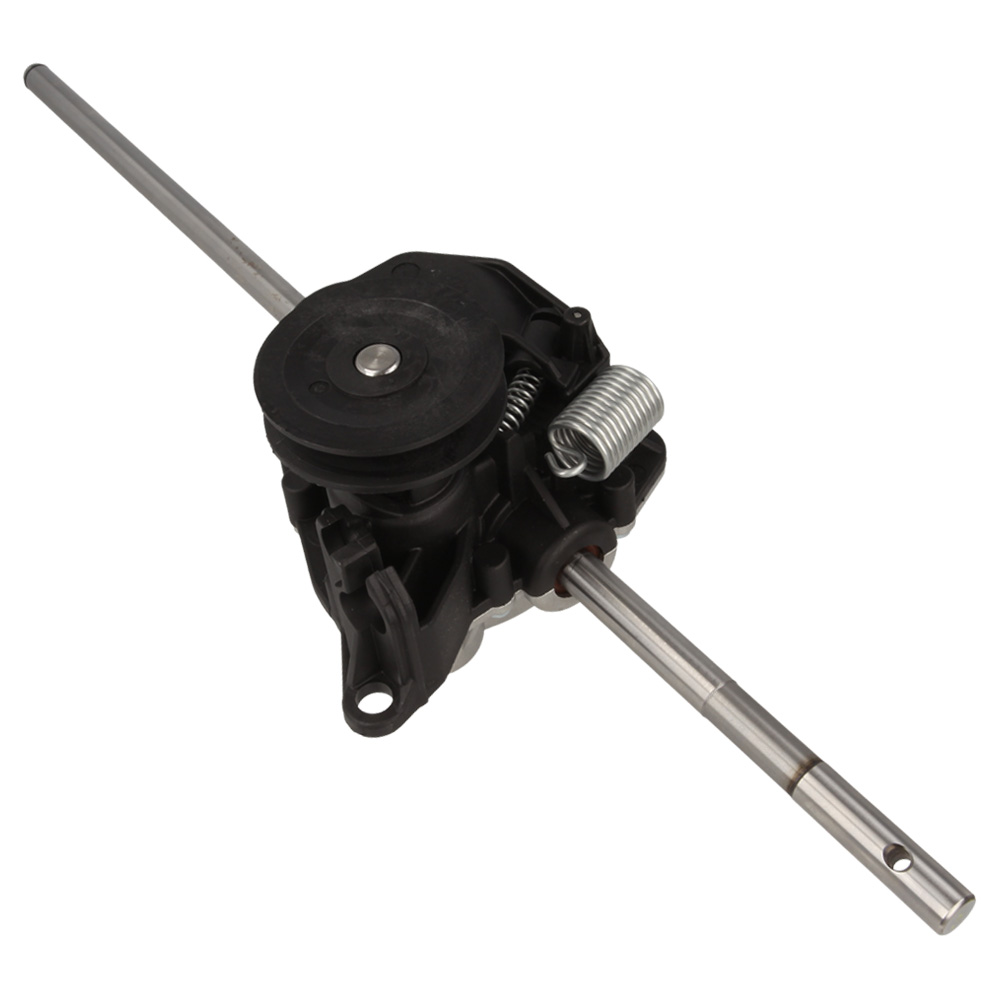

9	ST6374 640 0110 Available to backorder	Gear box assy. (Contains 14+40)	£132.00 £110.00
10	ST6374 700 2400 Available to backorder	Rear axle	£87.46 £72.88
11	ST6374 703 3800 Available to backorder	Sleeve	£1.66 £1.38
12	ST6374 703 8800 Available to backorder	Translation lever	£58.84 £49.03
13	ST6374 704 0500 Available to backorder	Shaft	£132.00 £110.00
14	ST6374 704 1000 Available to backorder	V-belt pulley	£11.88 £9.90

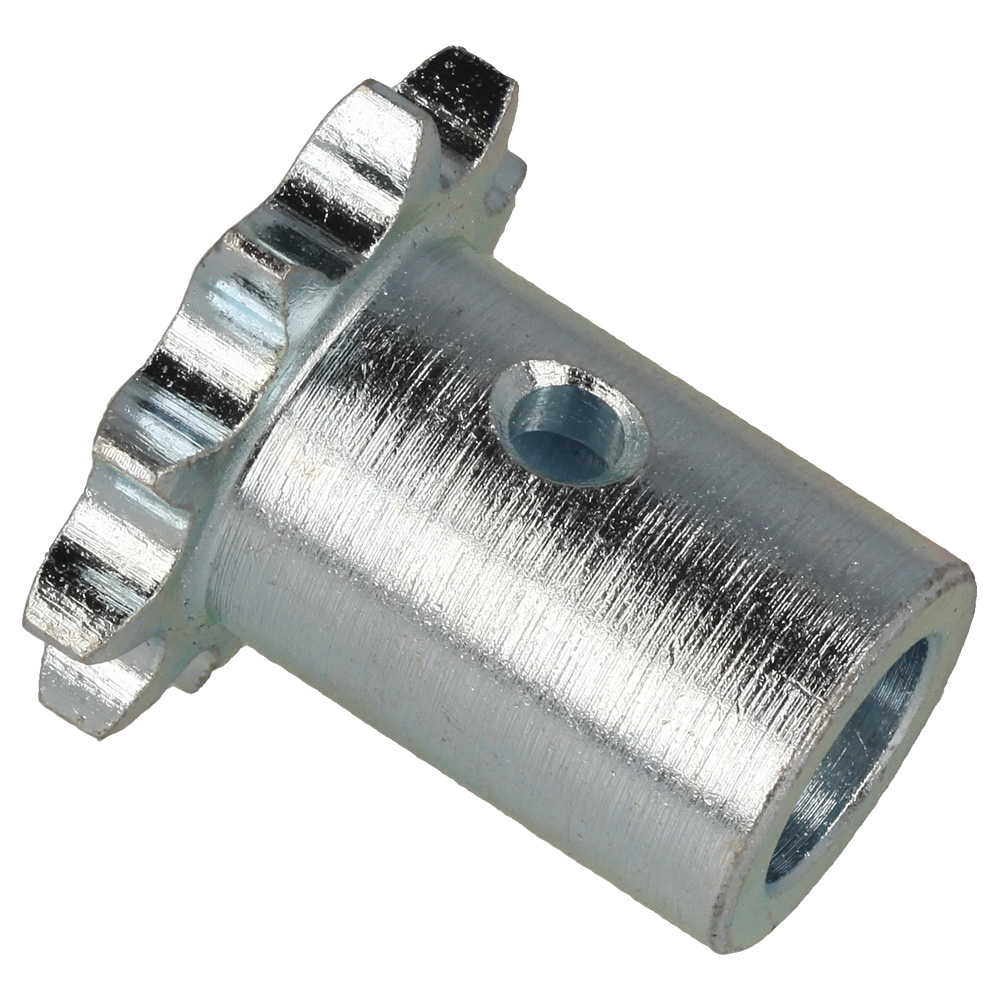

15	ST6374 704 5500 In stock	Spur sprocket	£20.36 £16.97

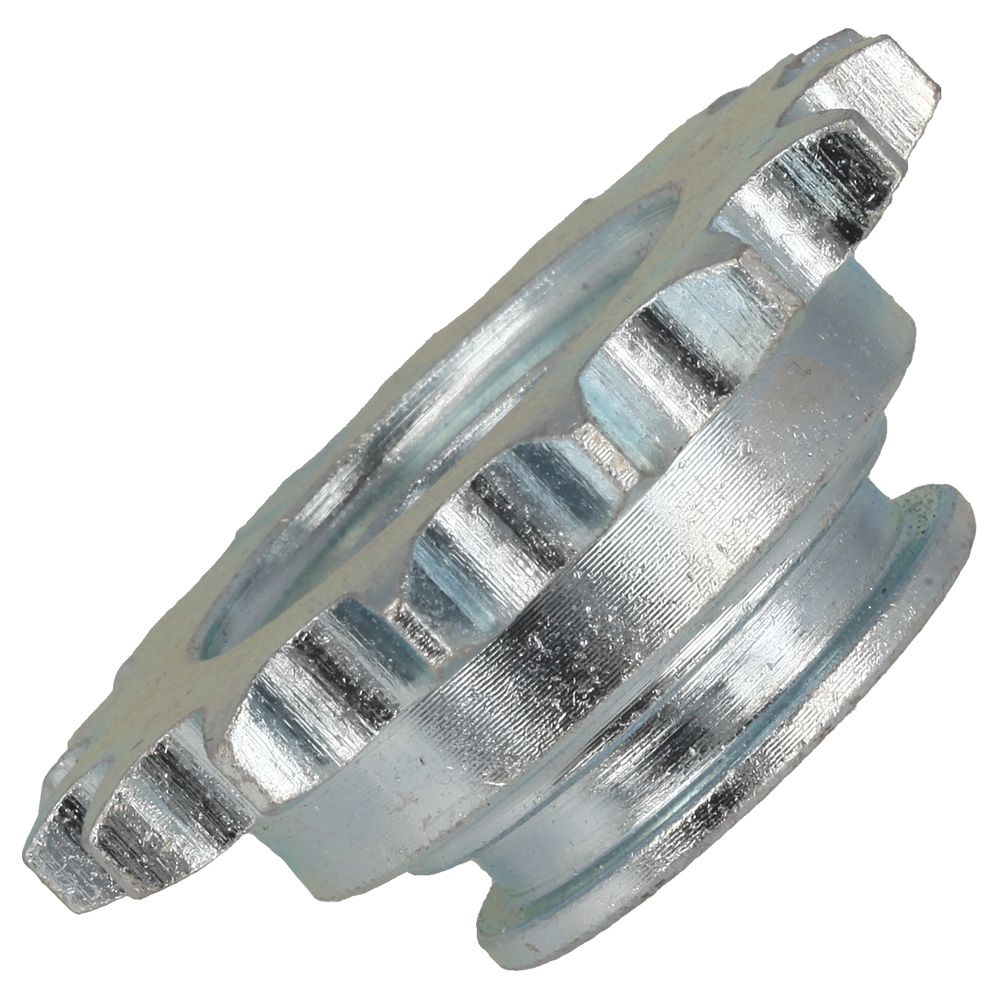

16	ST6374 704 5510 In stock	Spur sprocket	£31.58 £26.32

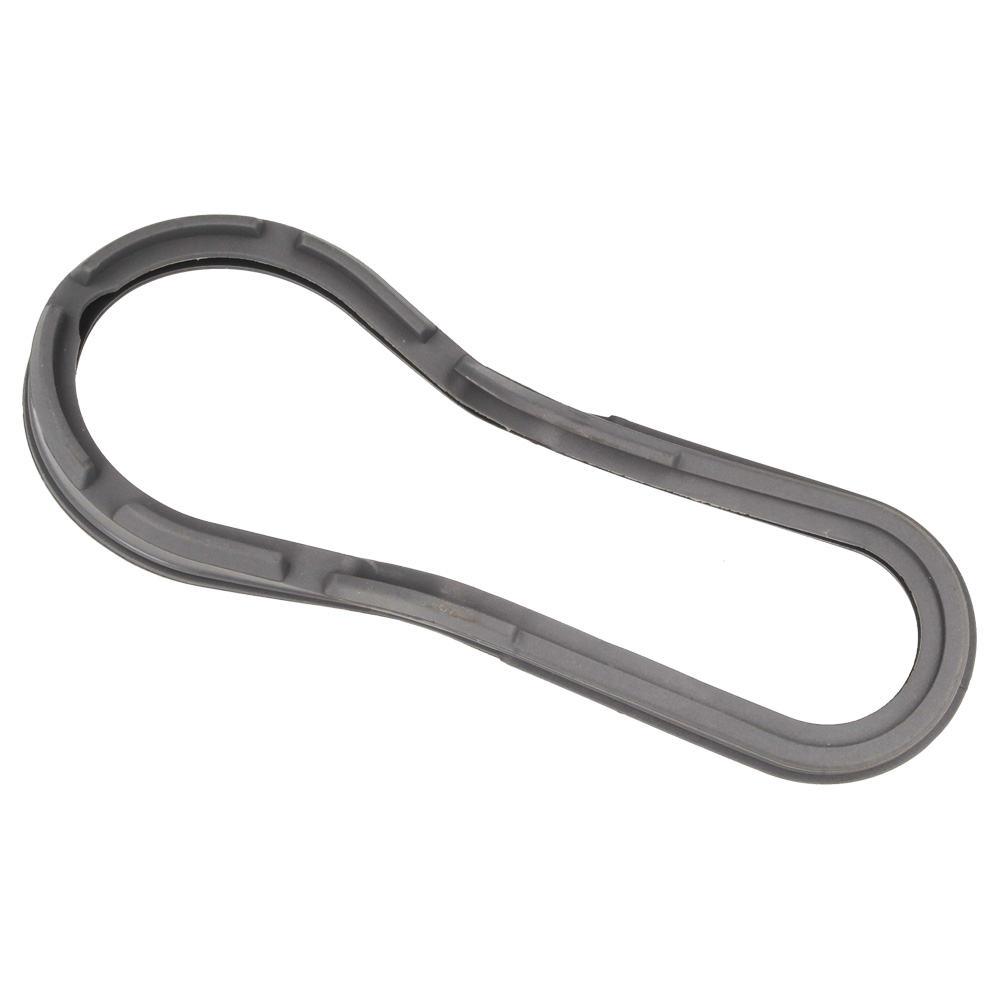

17	ST6374 709 0400 Available to backorder	Gasket	£7.60 £6.33
18	ST6374 709 2000 Available to backorder	Sealing ring	£1.42 £1.18

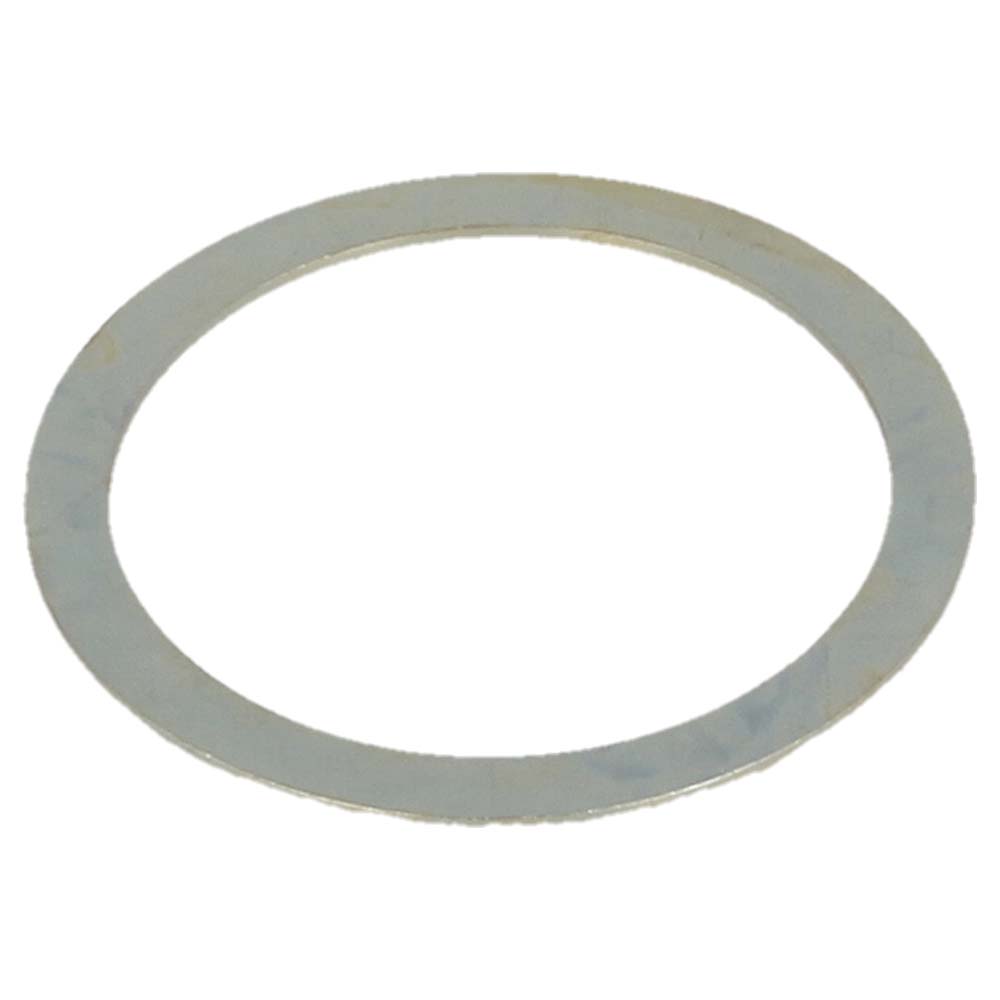

19	ST6374 709 2200 Available to backorder	Support ring (freewheel)	£6.50 £5.42
20	ST6374 760 3605 Available to backorder	Roller assembly (Contains 22)	£77.00 £64.17
21	ST6374 760 5600 Available to backorder	Notched plate	£42.24 £35.20

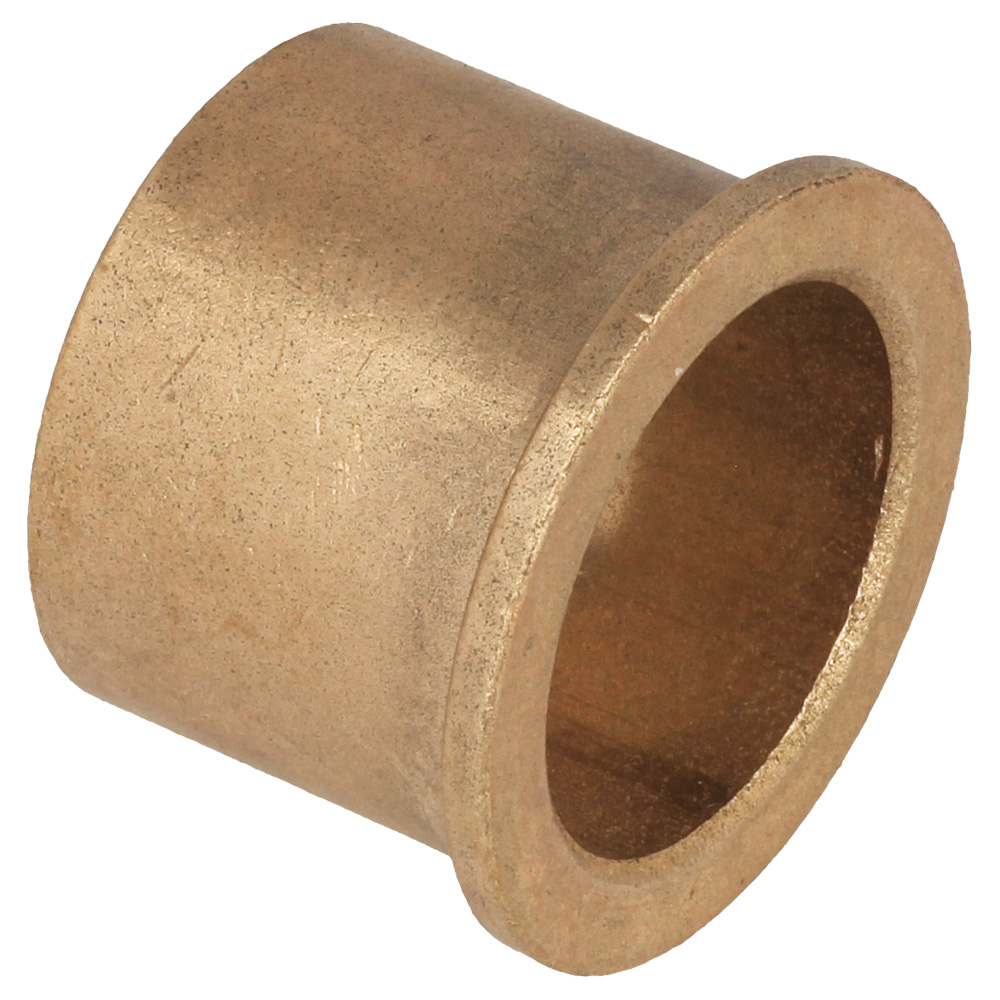

22	ST6374 764 2700 In stock	Flange sleeve	£8.48 £7.07
23	ST6374 780 0300 Available to backorder	Swivel lever	£54.68 £45.57

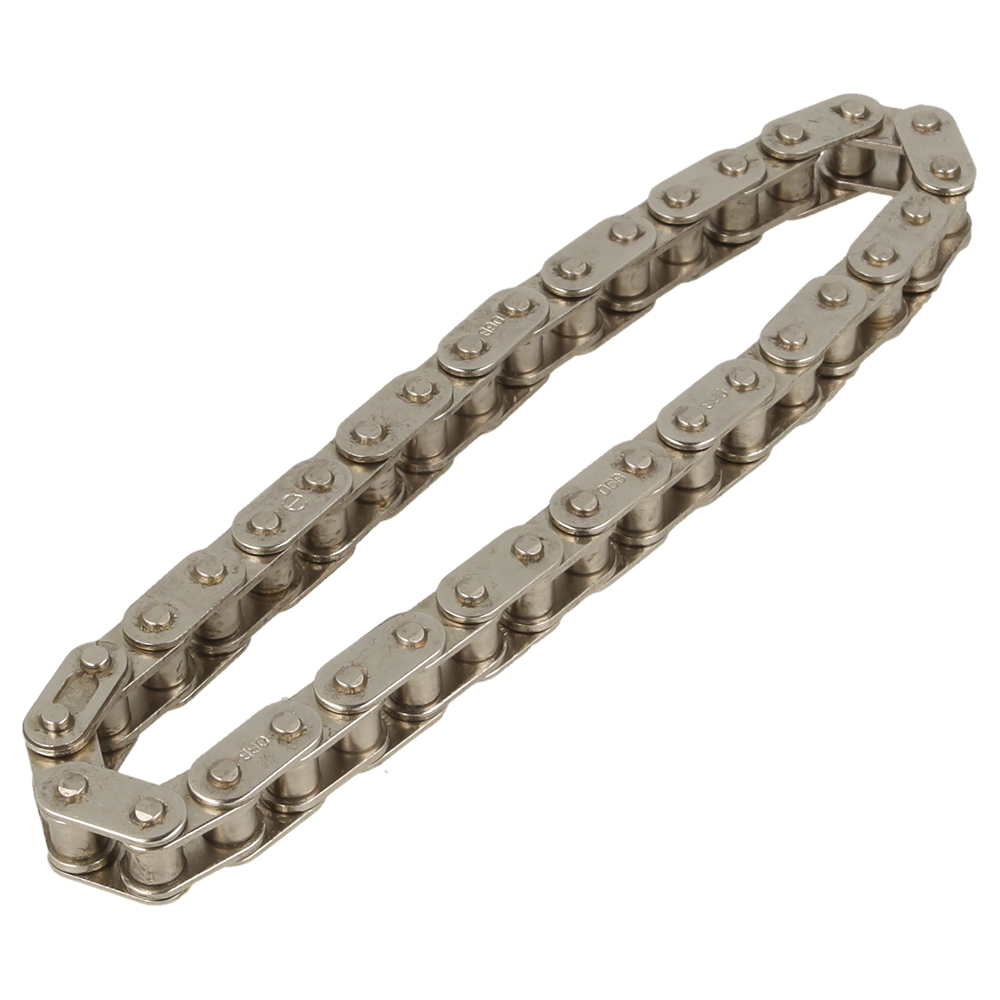

24	ST6374 780 0600 In stock	Roller chain (Contains 1)	£29.26 £24.38

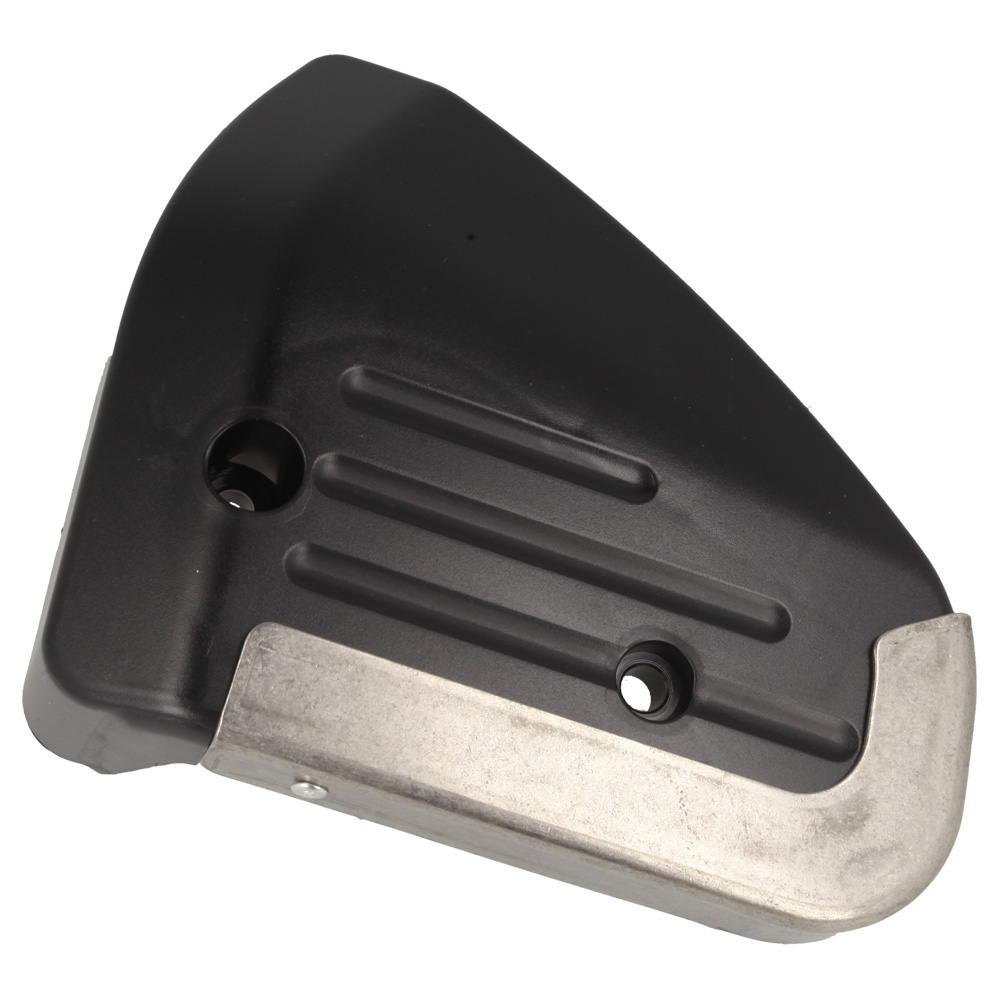

25	ST6374 780 2000 In stock	Cover left (Contains 42)	£44.66 £37.22

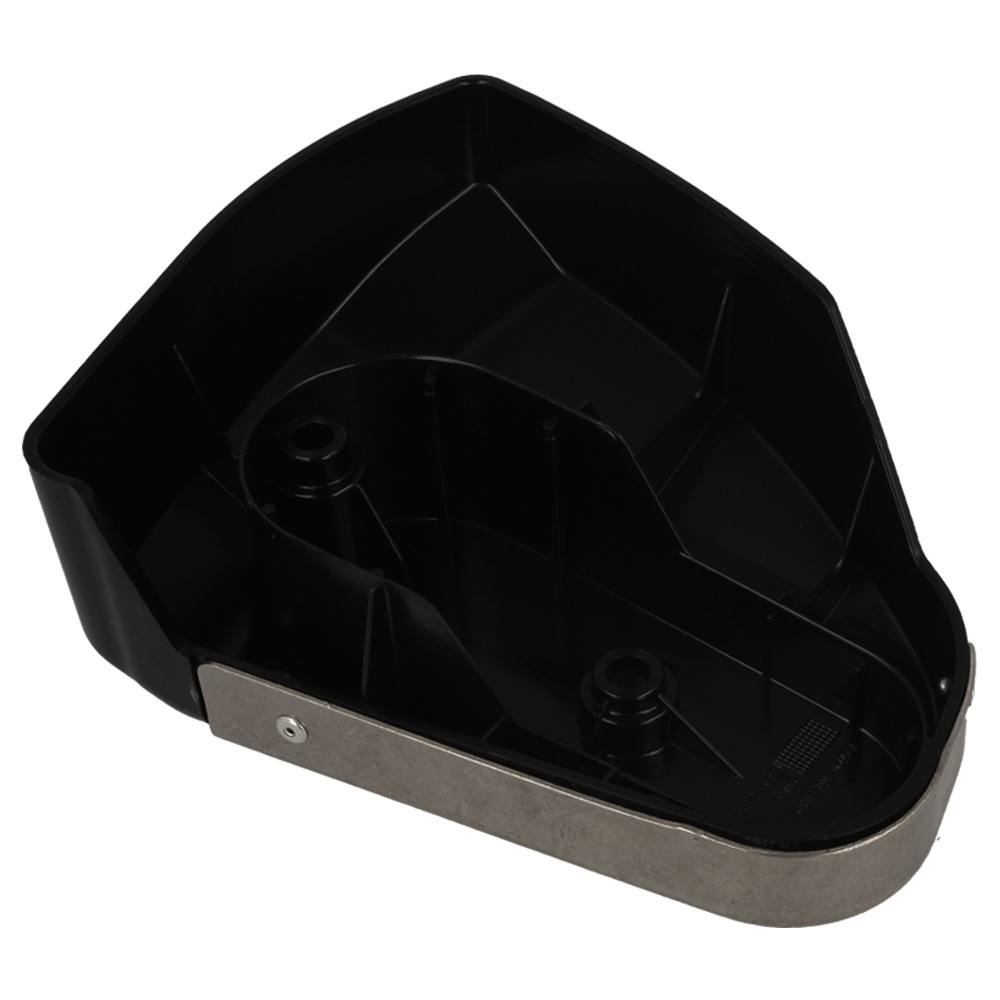

26	ST6374 780 2005 Available to backorder	Cover right (Contains 54)	£43.90 £36.58

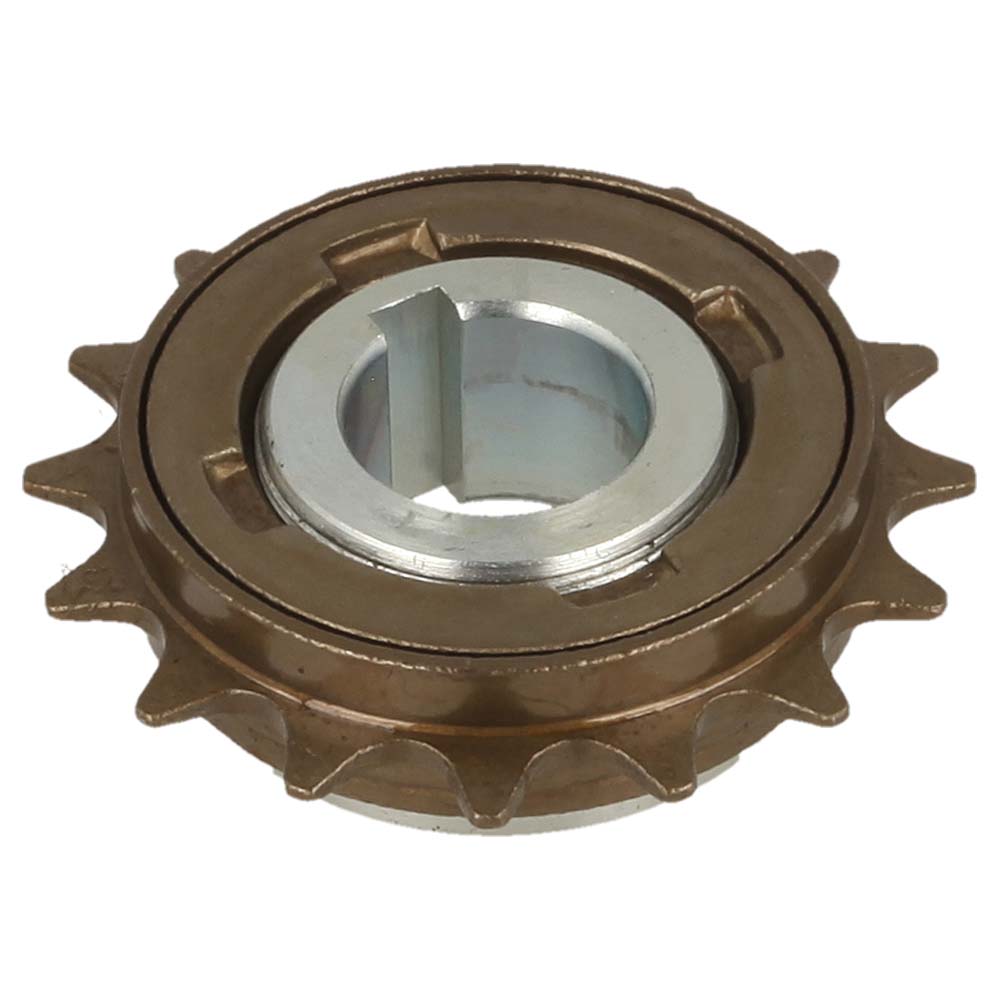

27	ST6374 780 2215 In stock	Right freewheel assembly	£25.30 £21.08
28	ST6374 780 3400 Available to backorder	Trigger interlock	£23.86 £19.88
29	ST9008 318 1280 Available to backorder	Hexagon head screw M6x16	£0.88 £0.73
30	ST9008 318 1780 Available to backorder	Hexagon head screw M8x16	£1.00 £0.83
31	ST9018 346 1330 Available to backorder	Hexagon head screw M6x20	£0.88 £0.73
32	ST9214 261 1105 In stock	Lock nut M8	£0.48 £0.40
33	ST9214 263 0900 Available to backorder	Lock nut M6	£0.48 £0.40
34	ST9216 261 0901 Available to backorder	Hexagon nut M6	£0.66 £0.55
35	ST9291 021 0160 Available to backorder	Washer 7.4	£0.48 £0.40
36	ST9296 021 1608 Available to backorder	Washer 12x18x0.5	£0.66 £0.55
37	ST9296 021 1687 Available to backorder	Shim ring 20x28x03	£0.66 £0.55
38	ST9307 021 0180 Available to backorder	Washer 84	£0.48 £0.40
40	ST9380 620 2730 Available to backorder	Roll pin 5x36	£0.88 £0.73
41	ST9386 620 2710 In stock	Roll pin 5x32	£0.76 £0.63
42	ST9438 424 3165 Available to backorder	Blind rivet 4x8	£0.88 £0.73
43	ST9455 621 1130 In stock	Circlip 12x1	£0.66 £0.55
44	ST9455 621 2150 In stock	Circlip 20x1.2	£0.89 £0.74
45	ST9456 621 3100 Available to backorder	Circlip 28x1.2	£1.22 £1.02
46	ST9456 621 3600 In stock	Circlips 32x12	£1.22 £1.02
47	ST9460 624 0500 In stock	E-clip 5	£0.47 £0.39

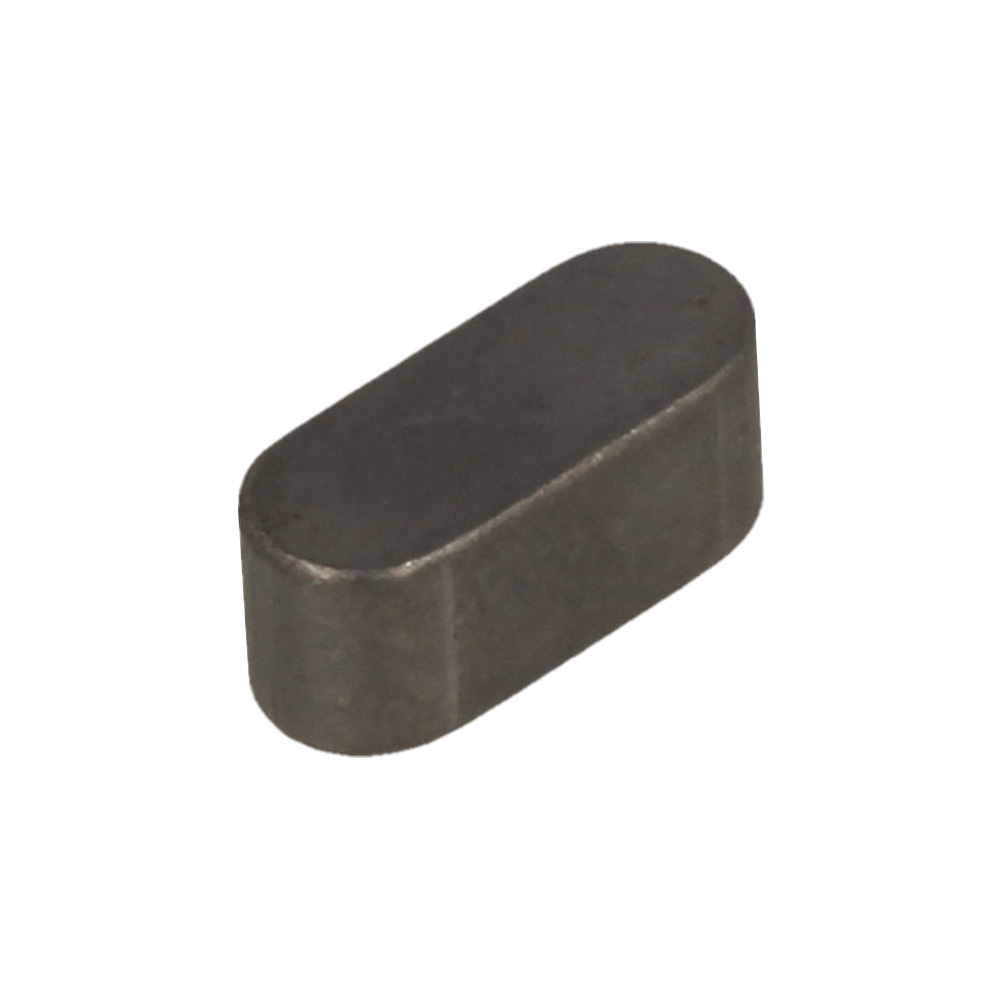

48	ST9470 435 1340 Available to backorder	Key 5x5x12	£0.88 £0.73
49	ST9470 435 2351 Available to backorder	Key 6x6x40	£2.54 £2.12
50	ST9503 003 5295 In stock	Grooved ball bearing 6002-2RS	£5.84 £4.87

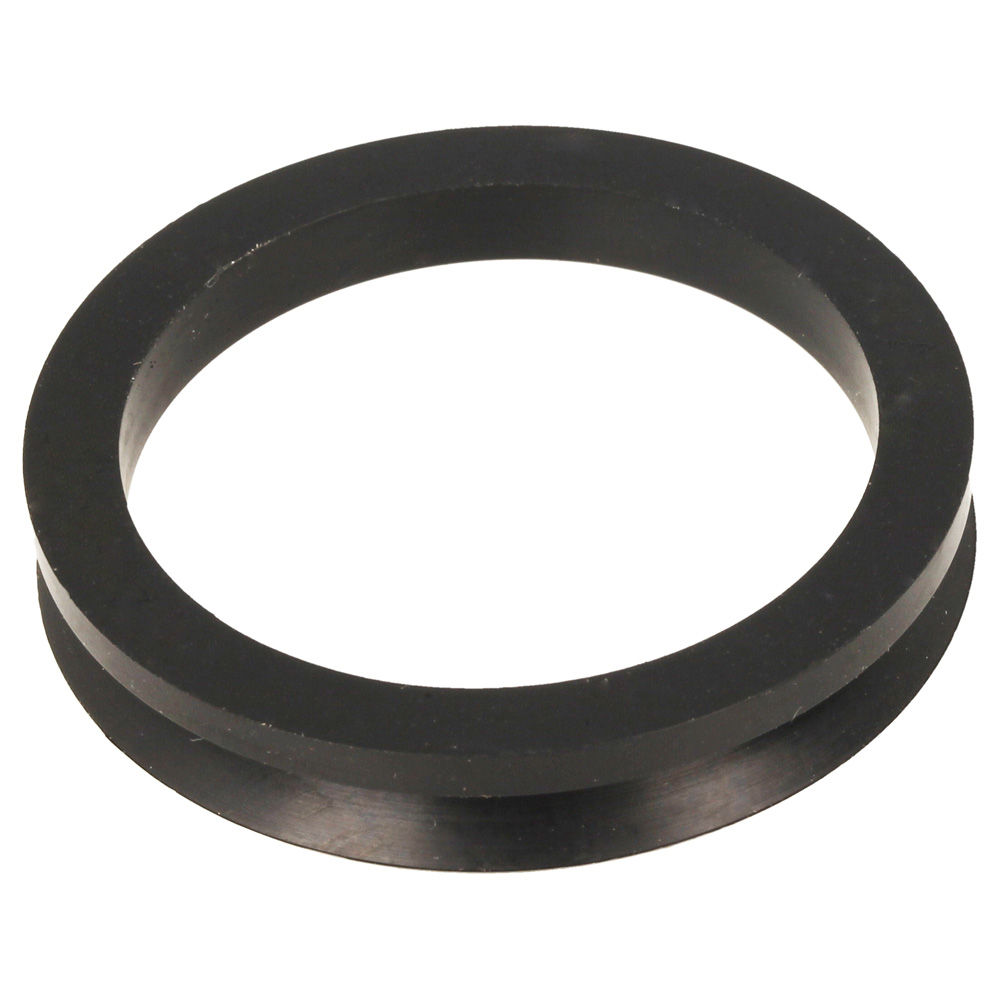

52	ST9642 005 0100 Available to backorder	Oil seal VA50-40-NBR	£15.40 £12.83
53	ST9645 945 7692 In stock	O-ring 22x3	£0.66 £0.55

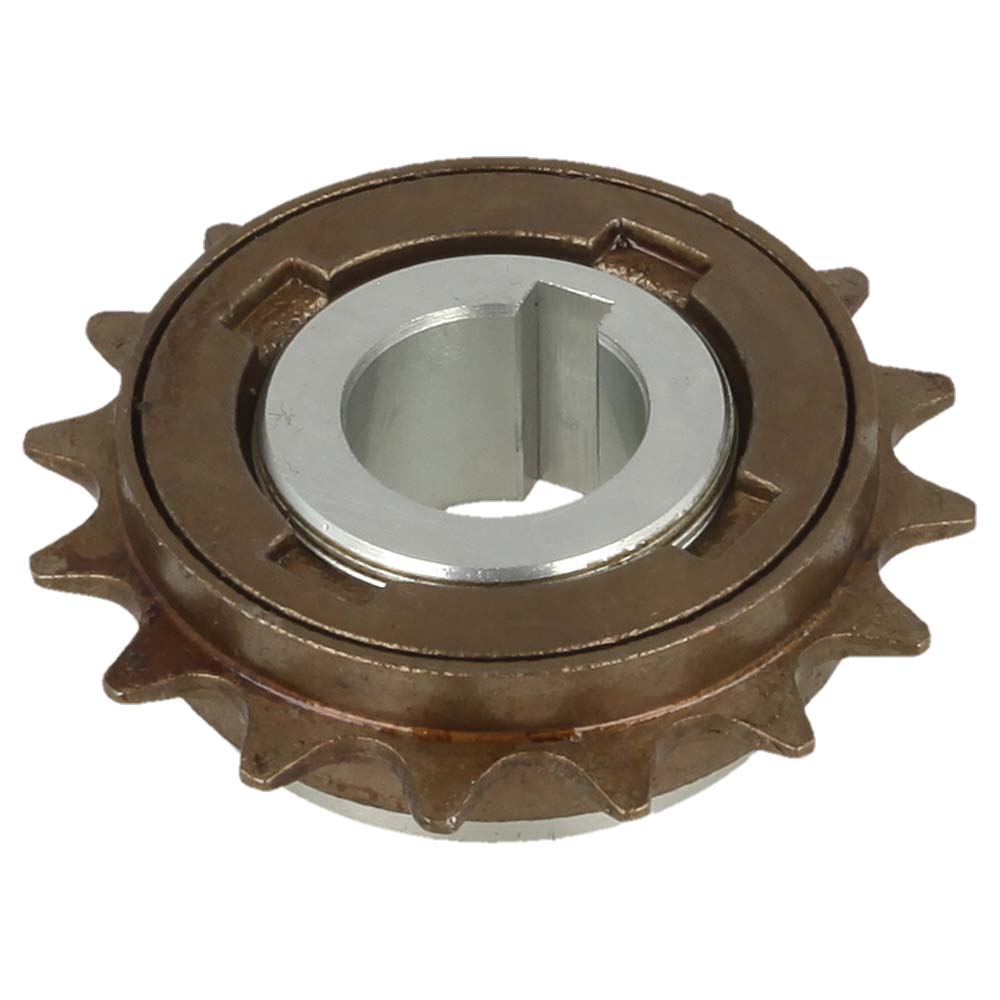

55	ST6374 780 2210 In stock	Left freewheel assembly	£25.08 £20.90
56	ST6364 763 3010 Available to backorder	Bearing bushing	£6.16 £5.13
