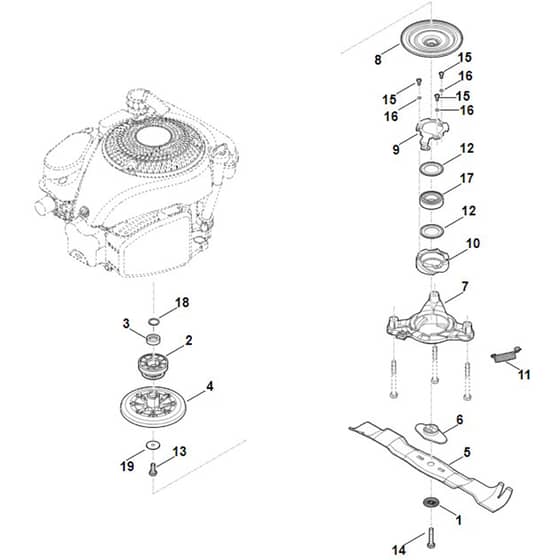

Viking MB655.3 RS - Blade, Blade Clutch - Parts Diagram

Description

Viking MB655.3 RS - Blade, Blade Clutch - Parts Diagram

	Part No.	Details
1	ST0000 702 6600 In stock	Washer	£4.48 £3.73
2	ST6364 700 2510 In stock	V-belt pulley assy.	£34.06 £28.38
3	ST6360 764 2801 In stock	Distance sleeve	£9.20 £7.67
4	ST6364 160 2905 Available to backorder	Clutch drum upper part	£77.52 £64.60
5	ST6374 702 0110 In stock	Blade	£47.50 £39.58
6	ST6364 702 0600 Available to backorder	Carrier	£10.01 £8.34
7	ST6378 160 0500 Available to backorder	Coupling flange	£59.17 £49.31
8	ST6378 160 2905 Available to backorder	Clutch drum lower part	£75.96 £63.30
9	ST6364 162 5000 Available to backorder	Lever	£8.20 £6.83
10	ST6378 162 5100 Available to backorder	Cam	£26.29 £21.91
11	ST6364 162 7900 Available to backorder	Tension spring	£3.64 £3.03
12	ST6378 162 8800 Available to backorder	Washer	£3.19 £2.66
13	ST9008 319 9066 Available to backorder	Hexagon head screw 3/8"x1"	£1.37 £1.14
14	ST9008 348 2440 Available to backorder	Hexagon head screw M10x40	£1.82 £1.52
15	ST9039 488 1266 In stock	Self-tapping screw M6x12	£0.79 £0.66
16	ST9460 624 4028 Available to backorder	E-clip 6.4	£0.35 £0.29
17	ST9503 003 7073 Available to backorder	Grooved ball bearing 6206-2RS1	£14.11 £11.76
18	ST9645 945 7692 In stock	O-ring 22x3	£0.72 £0.60
19	ST9485 648 1694 Available to backorder	Cup spring 28x102x125	£1.03 £0.86
