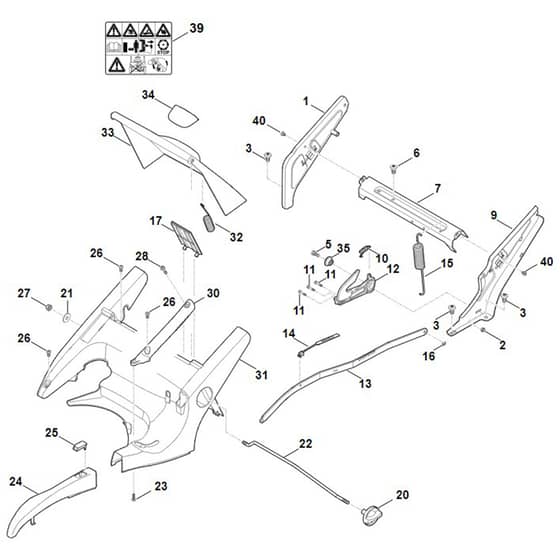

Viking MB655.2 RS - Frame, Height Adjustment - Parts Diagram

Description

Viking MB655.2 RS - Frame, Height Adjustment - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	ST6375 760 4215 Available to backorder	Bracket right	£56.10 £46.75
2	ST9212 260 0900 In stock	Hexagon nut M6	£0.48 £0.40
3	ST9039 488 1502 Available to backorder	Self-tapping screw M8x14	£0.88 £0.73
5	ST9008 318 1280 Available to backorder	Hexagon head screw M6x16	£0.88 £0.73
7	ST6375 763 4501 Available to backorder	Strud	£58.30 £48.58
9	ST6375 760 4210 Available to backorder	Bracket left	£58.30 £48.58
10	ST6375 703 5111 Available to backorder	Tension spring	£2.08 £1.73
11	ST6375 708 8400 Available to backorder	Screw M4x20	£1.66 £1.38
12	ST6375 780 3193 Available to backorder	Notched quadrant (Contains 11+35)	£15.28 £12.73
13	ST6375 703 8800 Available to backorder	Translation lever	£48.94 £40.78
14	ST6375 763 2000 Available to backorder	Pointer	£1.66 £1.38
15	ST6375 703 5101 Available to backorder	Tension spring	£17.72 £14.77
16	ST9460 624 0400 In stock	E-clip 4	£0.47 £0.39
17	ST6360 706 3400 Available to backorder	Cover	£4.62 £3.85
20	ST6375 760 1800 Available to backorder	Rotary handle assy.	£10.34 £8.62
21	ST9307 021 0180 Available to backorder	Washer 84	£0.48 £0.40
22	ST6375 703 1700 Available to backorder	Rod	£33.44 £27.87
23	ST9104 007 4270 In stock	Self-tapping screw P5x16	£0.88 £0.73
24	ST6375 780 2091 Available to backorder	Cover assy. (Contains 25)	£22.54 £18.78
25	ST6375 701 3500 Available to backorder	Inspection glass	£1.10 £0.92
26	ST9039 488 0974 In stock	Self-tapping screw M5x12	£0.76 £0.63
27	ST9241 288 1980 Available to backorder	Cap nut M8	£0.76 £0.63
28	ST9070 010 1050 Available to backorder	Screw TT-M5x28	£1.00 £0.83
30	ST6375 703 6601 Available to backorder	Knob	£17.38 £14.48
31	ST6375 706 0701 Available to backorder	Cover	£49.50 £41.25
32	ST6375 703 5120 Available to backorder	Tension spring	£5.62 £4.68
33	ST6375 700 2715 Available to backorder	Flap assy. (Contains 34+39)	£45.32 £37.77
34	ST6375 706 6700 Available to backorder	Handle molding	£13.54 £11.28
35	ST6375 763 3020 Available to backorder	Bearing bushing	£5.18 £4.32
39	ST0000 967 4405 Available to backorder	Warning note	£2.08 £1.73
40	ST9039 488 0996 Available to backorder	Self-tapping screw M6x12	£0.76 £0.63
