Viking MB655.2 RS - Blade, Blade Clutch - Parts Diagram

Description

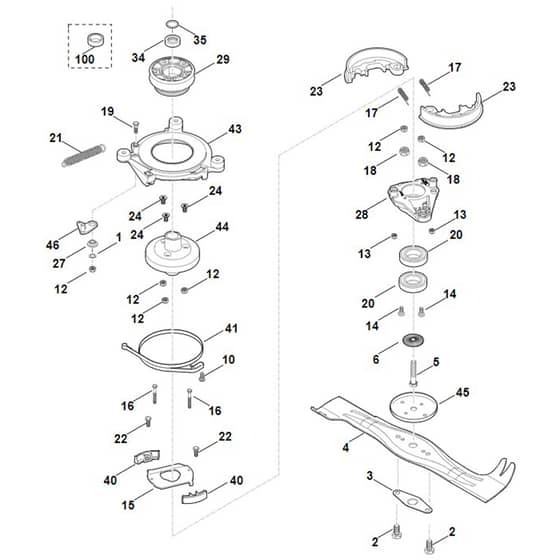

Viking MB655.2 RS - Blade, Blade Clutch - Parts Diagram

	Part No.	Details
-1	ST6375 007 1040 Available to backorder	Repair kit BBC (Contains 1+3+6+12+15+17+19+21+23+24+27+28+41+44+51)	£101.16 £84.30
1	ST9296 021 1569 Available to backorder	Washer 10x16x0.5	£0.35 £0.29
3	ST6107 706 8210 Available to backorder	Guard plate	£5.00 £4.17
4	ST6375 760 9991 In stock	Blade (Contains 3)	£38.23 £31.86
5	ST9007 319 9029 Available to backorder	Hexagon head screw 3/8"x2 1/4"	£2.15 £1.79
6	ST0000 702 6600 In stock	Washer	£4.48 £3.73
10	ST9075 478 4117 Available to backorder	Pan head screw IS D5x16	£0.91 £0.76
12	ST9214 263 0900 Available to backorder	Lock nut M6	£0.35 £0.29
13	ST9212 260 0705 In stock	Hexagon nut M5	£0.34 £0.28
14	ST9039 488 0974 In stock	Self-tapping screw M5x12	£0.79 £0.66
15	ST6375 162 2000 Available to backorder	Stop plate	£21.74 £18.12
16	ST9007 319 1090 Available to backorder	Hexagon head screw M5x40	£1.26 £1.05
17	ST6107 162 7700 Available to backorder	Compression spring	£1.37 £1.14
18	ST9212 260 1300 Available to backorder	Hexagon nut M10	£0.91 £0.76
19	ST9008 318 1320 Available to backorder	Hexagon head screw M6x20	£0.91 £0.76
20	ST9503 003 5632 Available to backorder	Grooved ball bearing 6006-2RSD EMQ	£9.91 £8.26
21	ST6107 162 7900 Available to backorder	Tension spring	£3.86 £3.22
22	ST9008 345 1280 Available to backorder	Hexagon head screw M6x16	£0.91 £0.76
23	ST6375 007 1050 Available to backorder	Set Clutch shoe (Contains 40)	£61.56 £51.30
24	ST9064 345 1260 Available to backorder	Countersunk screw M6x12	£0.79 £0.66
27	ST6107 162 8200 Available to backorder	Bushing	£9.56 £7.97
28	ST6107 160 2601 Available to backorder	Mounting device (Contains 13+14+16+18+20)	£31.40 £26.17
29	ST6360 700 2501 Available to backorder	V-belt pulley	£31.76 £26.47
35	ST9645 945 7692 In stock	O-ring 22x3	£0.72 £0.60
40	ST6107 007 1035 Available to backorder	Set clutch facing (Contains 12+22)	£27.89 £23.24
43	ST6107 162 3510 Available to backorder	Coupling flange	£26.40 £22.00
44	ST6360 160 2901 Available to backorder	Clutch drum (Contains 12+24)	£54.52 £45.43
45	ST6375 702 6800 In stock	Thrust washer	£24.86 £20.72
46	ST6107 160 5000 Available to backorder	Lever	£9.91 £8.26
100	ST6360 764 2801 In stock	Distance sleeve	£9.20 £7.67
