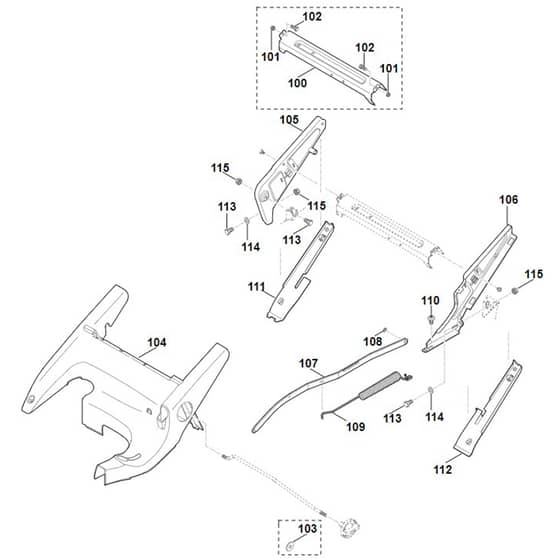

Viking MB655.1 VR - Frame, Height Adjustment 2 - Parts Diagram

Name: Viking MB655.1 VR - Frame, Height Adjustment 2 - Parts Diagram
SKU: mb655_1_vr_frame_height_adjustment_2-group
Price: 0.29 GBP
Availability: InStock

Part No. mb655_1_vr_frame_height_adjustment_2-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Viking MB655.1 VR - Frame, Height Adjustment 2 - Parts Diagram

Description

Viking MB655.1 VR - Frame, Height Adjustment 2 - Parts Diagram

	Part No.	Details
101	ST9212 260 0900 In stock	Hexagon nut M6	£0.48 £0.40
102	ST9008 318 1280 Available to backorder	Hexagon head screw M6x16	£0.91 £0.76
103	ST9307 021 0180 Available to backorder	Washer 84	£0.35 £0.29
104	ST6375 706 0700 Available to backorder	Cover	£60.48 £50.40
105	ST6375 760 4205 Available to backorder	Bracket right	£59.17 £49.31
106	ST6375 760 4291 Available to backorder	Bracket left	£61.08 £50.90
107	ST6375 780 0401 Available to backorder	Translation lever	£51.79 £43.16
108	ST9460 624 0500 In stock	E-clip 5	£0.53 £0.44
109	ST6375 703 5100 Available to backorder	Tension spring	£30.14 £25.12
110	ST9039 488 1550 Available to backorder	Self-tapping screw M8x12	£0.91 £0.76
111	ST6375 706 0730 Available to backorder	Cover	£8.51 £7.09
112	ST6375 706 0720 Available to backorder	Cover	£9.49 £7.91
113	ST9008 318 1780 Available to backorder	Hexagon head screw M8x16	£1.03 £0.86
114	ST9291 020 0180 Available to backorder	Washer 84	£0.35 £0.29
115	ST9212 260 1100 In stock	Hexagon nut M8	£0.72 £0.60
