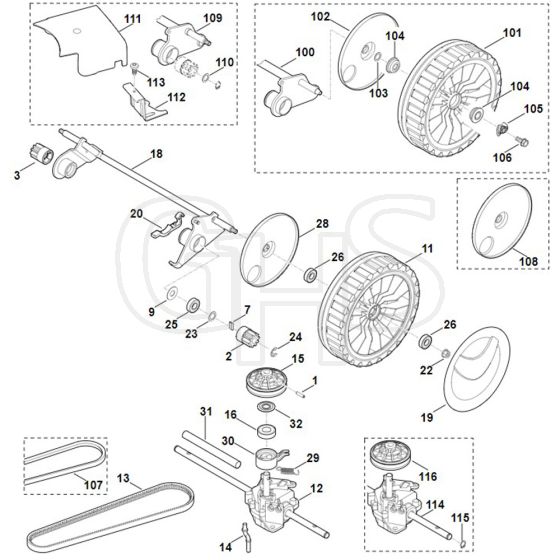

Viking MB655.1 VM - Shaft, Gear Box - Parts Diagram

Name: Viking MB655.1 VM - Shaft, Gear Box - Parts Diagram
SKU: mb655_1_vm_shaft_gear_box-group
Price: 0.36 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Viking MB655.1 VM - Shaft, Gear Box - Parts Diagram

Description

Viking MB655.1 VM - Shaft, Gear Box - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	ST9380 620 2620 Out of stock	Roll pin 5x20	£0.84 £0.70
2	ST6105 704 7410 In stock	Pinion	£15.24 £12.70
3	ST6105 704 7400 In stock	Pinion	£15.12 £12.60
7	ST0000 704 8300 In stock	Freewheel key	£1.90 £1.58
9	ST6103 704 7910 Out of stock	Protection disk	£1.26 £1.05
11	ST6375 700 0402 Out of stock	Wheel assy. 230 (Contains 26+28)	£52.94 £44.12
12	ST6360 640 0112 Out of stock	Gear box assy. (Contains 1+15+16+29+30)	£120.24 £100.20
13	ST6360 704 2111 In stock	V-belt	£22.06 £18.38
14	ST6360 704 2702 Out of stock	Support	£6.04 £5.03

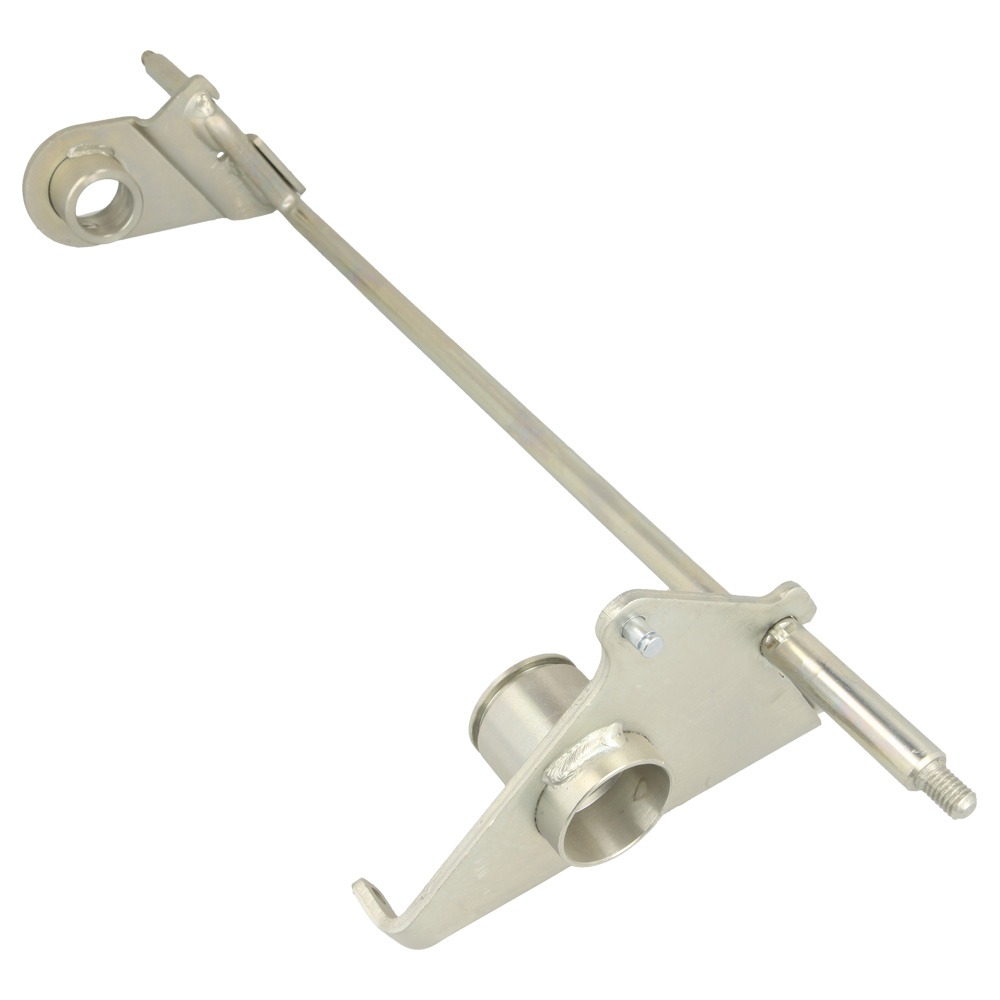

18	ST6375 700 2417 Out of stock	Axle	£62.39 £51.99
19	ST6375 704 0310 Out of stock	Wheel cap	£1.48 £1.23
19	ST6375 704 0311 Out of stock	Wheel cap	£10.69 £8.91
20	ST6375 763 2800 Out of stock	Axle guard	£3.02 £2.52
22	ST9216 261 1100 Out of stock	Hexagon nut M8	£0.86 £0.72
24	ST9460 624 1001 In stock	E-clip 10	£0.43 £0.36
25	ST9503 003 5297 Out of stock	Grooved ball bearing 6001-2TRS	£5.75 £4.79
28	ST6375 704 3611 Out of stock	Cover	£13.20 £11.00
29	ST6360 643 3800 Out of stock	Tension spring	£1.76 £1.47
31	ST6103 703 9111 Out of stock	Tube	£2.36 £1.97
102	ST6105 704 0320 Out of stock	Cover	£11.28 £9.40
103	ST9296 021 1608 Out of stock	Washer 12x18x0.5	£0.61 £0.51
105	ST0000 708 7000 Out of stock	Clamping ring	£0.48 £0.40
106	ST9039 488 0994 Out of stock	Self-tapping screw M6x16	£1.00 £0.83
109	ST6375 700 2411 Out of stock	Axle	£56.44 £47.03
111	ST6375 706 0740 Out of stock	Cover	£6.80 £5.67
112	ST6375 704 2720 Out of stock	Clamp	£9.52 £7.93
113	ST9039 488 0974 Out of stock	Self-tapping screw M5x12	£0.83 £0.69
115	ST9455 621 1130 In stock	Circlip 12x1	£0.84 £0.70
116	ST6360 700 2513 Out of stock	V-belt pulley assy. (Contains 16+30)	£39.36 £32.80
