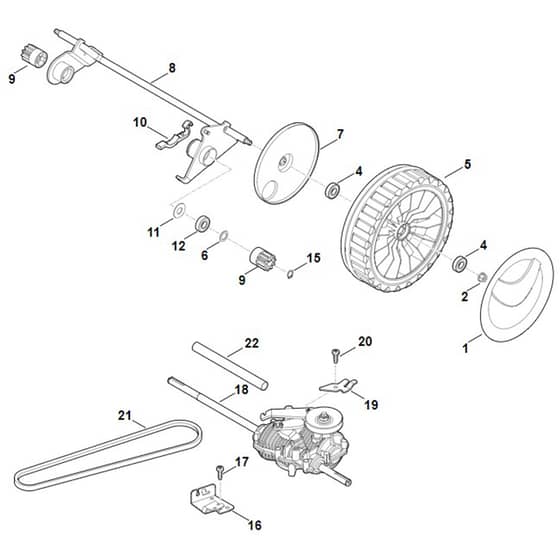

Viking MB655.1 GS - Shaft, Drive - Parts Diagram

Description

	Part No.	Details
-1	ST6375 007 1081 Available to backorder	Conversion kit (Gear box) (Contains A 23+25 + E 9+16-20+22)	£198.00 £165.00
1	ST6375 704 0310 Available to backorder	Wheel cap	£1.48 £1.23
1	ST6375 704 0311 Available to backorder	Wheel cap	£9.58 £7.98
2	ST9216 261 1100 Available to backorder	Hexagon nut M8	£0.76 £0.63
5	ST6375 700 0402 Available to backorder	Wheel assy. 230 (Contains 4+7)	£47.52 £39.60
6	ST9296 021 1608 Available to backorder	Washer 12x18x0.5	£0.66 £0.55
7	ST6375 704 3611 Available to backorder	Cover	£12.44 £10.37
8	ST6375 700 2417 Available to backorder	Axle	£56.10 £46.75
9	ST0000 704 7400 Available to backorder	Pinion	£13.86 £11.55
10	ST6375 763 2800 Available to backorder	Axle guard	£2.64 £2.20
11	ST6103 704 7910 Available to backorder	Protection disk	£1.10 £0.92
12	ST9503 003 5297 In stock	Grooved ball bearing 6001-2TRS	£5.38 £4.48
15	ST9455 621 1130 In stock	Circlip 12x1	£0.66 £0.55
16	ST6378 764 6710 Available to backorder	Counterholder	£12.10 £10.08
17	ST9076 478 4430 Available to backorder	Screw IS AP6x20	£1.00 £0.83
18	ST6375 640 0110 Available to backorder	Gear box	£223.44 £186.20
19	ST6375 704 2730 Available to backorder	Support	£3.08 £2.57
21	ST6375 704 2100 Available to backorder	V-belt	£24.42 £20.35
22	ST6375 706 3310 Available to backorder	Tube	£8.80 £7.33
