Viking MB655.1 GS - Housing - Front Axle 2 - Parts Diagram

Description

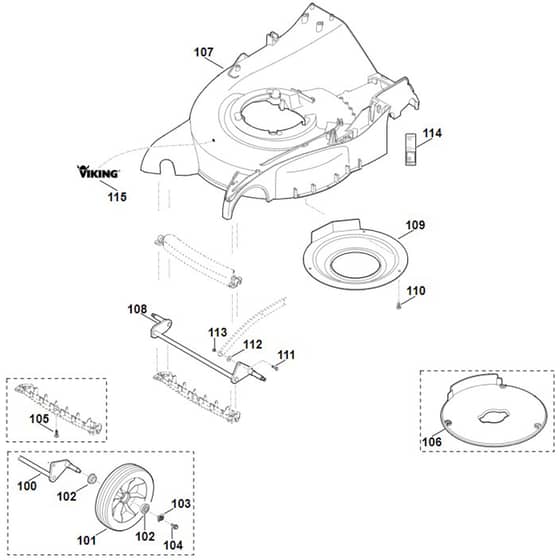

Viking MB655.1 GS - Housing - Front Axle 2 - Parts Diagram

	Part No.	Details
102	ST9503 003 9011 Available to backorder	Grooved ball bearing 27M-36x12	£6.25 £5.21
103	ST0000 708 7000 Available to backorder	Clamping ring	£0.48 £0.40
104	ST9039 488 0994 Available to backorder	Self-tapping screw M6x16	£0.91 £0.76
105	ST9104 007 4270 In stock	Self-tapping screw P5x16	£0.95 £0.79
106	ST6375 706 0750 Available to backorder	Cover	£20.96 £17.47
108	ST6375 700 2402 Available to backorder	Axle assy. (Contains 111)	£45.64 £38.03
109	ST6375 701 4100 Available to backorder	Support	£66.96 £55.80
110	ST9039 488 0974 In stock	Self-tapping screw M5x12	£0.79 £0.66
112	ST9307 021 0140 In stock	Washer 64	£0.34 £0.28
113	ST9212 260 0705 In stock	Hexagon nut M5	£0.34 £0.28
115	ST0000 967 4484 Available to backorder	Sticker VIKING	£2.15 £1.79
