Viking MB655.0 G - Shaft Drive 2 - Parts Diagram

Viking MB655.0 G - Shaft Drive 2 - Parts Diagram

Part No. mb655_0_g_shaft_drive_2-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

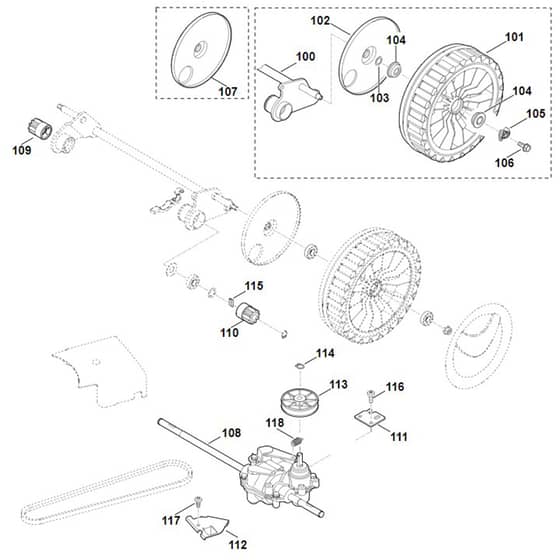

Viking MB655.0 G - Shaft Drive 2 - Parts Diagram

Viking MB655.0 G - Shaft Drive 2 - Parts Diagram

Description

Viking MB655.0 G - Shaft Drive 2 - Parts Diagram

Ref.		Img.	Part No.	Details
	102		ST6105 704 0320 Available to backorder	Cover		£12.86 £10.72
	103		ST9296 021 1608 In stock	Washer 12x18x0.5		£0.72 £0.60
	105		ST0000 708 7000 Available to backorder	Clamping ring		£0.48 £0.40
	106		ST9039 488 0994 Available to backorder	Self-tapping screw M6x16		£0.91 £0.76
	109		ST6105 704 7400 In stock	Pinion		£14.75 £12.29
	110		ST0000 640 2505 In stock	Pinion		£13.20 £11.00
	110		ST6105 704 7410 In stock	Pinion		£14.95 £12.46
	112		ST6375 704 2700 Available to backorder	Support		£8.09 £6.74
	113		ST6107 704 1010 Available to backorder	V-belt pulley		£13.76 £11.47
	114		ST9455 621 0850 In stock	Circlip 10x1		£0.72 £0.60
	115		ST6103 704 8300 Available to backorder	Freewheel key		£1.72 £1.43
	116		ST9075 478 4610 Available to backorder	Pan head screw IS D6x16		£0.91 £0.76
	116		ST9039 488 0993 Available to backorder	Self-tapping screw M6x16		£0.48 £0.40
	117		ST9039 488 0974 In stock	Self-tapping screw M5x12		£0.79 £0.66
	118		ST6105 708 0800 Available to backorder	Tension spring		£1.37 £1.14
