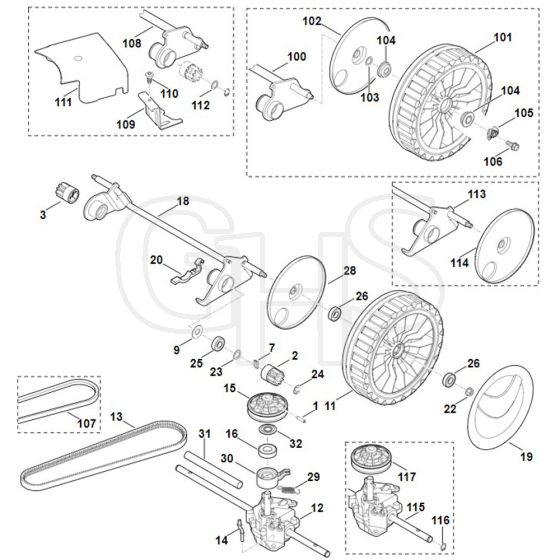

Viking MB650.0 VM - Shaft, Gear Box - Parts Diagram

Viking MB650.0 VM - Shaft, Gear Box - Parts Diagram
Viking MB650.0 VM - Shaft, Gear Box - Parts Diagram

Description

Viking MB650.0 VM - Shaft, Gear Box - Parts Diagram

Ref. Img. Part No. Details
  1 Roll pin 5x20
Roll pin 5x20
ST9380 620 2620
Available to backorder
Roll pin 5x20
£0.66 £0.55

  2 Pinion
Pinion
ST0000 640 2505
In stock
Pinion
£12.32 £10.27

  2 Pinion
Pinion
ST6105 704 7410
In stock
Pinion
£13.96 £11.63

  3 Pinion
Pinion
ST6105 704 7400
In stock
Pinion
£13.76 £11.47

  7 Freewheel key
Freewheel key
ST0000 704 8300
In stock
Freewheel key
£1.66 £1.38

  9 Protection disk
Protection disk
ST6103 704 7910
Available to backorder
Protection disk
£1.10 £0.92

  11 Wheel assy. 230 (Contains 26+28)
Wheel assy. 230 (Contains 26+28)
ST6375 700 0402
Available to backorder
Wheel assy. 230 (Contains 26+28)
£47.52 £39.60

  12 Gear box assy. (Contains 1+15+16+29+30)
Gear box assy. (Contains 1+15+16+29+30)
ST6360 640 0112
Available to backorder
Gear box assy. (Contains 1+15+16+29+30)
£116.60 £97.17

  13 V-belt
V-belt
ST6360 704 2111
In stock
V-belt
£20.80 £17.33

  14 Support
Support
ST6360 704 2702
Available to backorder
Support
£5.28 £4.40

  18 Axle
Axle
ST6375 700 2417
Available to backorder
Axle
£56.10 £46.75

  19 Wheel cap
Wheel cap
ST6375 704 0311
Available to backorder
Wheel cap
£9.58 £7.98

  19 Wheel cap
Wheel cap
ST6375 704 0310
Available to backorder
Wheel cap
£1.48 £1.23

  20 Axle guard
Axle guard
ST6375 763 2800
Available to backorder
Axle guard
£2.64 £2.20

  22 Hexagon nut M8
Hexagon nut M8
ST9216 261 1100
Available to backorder
Hexagon nut M8
£0.76 £0.63

  24 E-clip 10
E-clip 10
ST9460 624 1001
In stock
E-clip 10
£0.34 £0.28

  25 Grooved ball bearing 6001-2Z
Grooved ball bearing 6001-2Z
ST9503 003 5151
Available to backorder
Grooved ball bearing 6001-2Z
£14.86 £12.38

  25 Grooved ball bearing 6001-2TRS
Grooved ball bearing 6001-2TRS
ST9503 003 5297
In stock
Grooved ball bearing 6001-2TRS
£5.38 £4.48

  28 Cover
Cover
ST6375 704 3611
Available to backorder
Cover
£12.44 £10.37

  29 Tension spring
Tension spring
ST6360 643 3800
Available to backorder
Tension spring
£1.54 £1.28

  31 Tube
Tube
ST6103 703 9111
Available to backorder
Tube
£2.08 £1.73

  102 Cover
Cover
ST6105 704 0320
Available to backorder
Cover
£12.44 £10.37

  103 Washer 12x18x0.5
Washer 12x18x0.5
ST9296 021 1608
Available to backorder
Washer 12x18x0.5
£0.66 £0.55

  105 Clamping ring
Clamping ring
ST0000 708 7000
Available to backorder
Clamping ring
£0.48 £0.40

  106 Self-tapping screw M6x16
Self-tapping screw M6x16
ST9039 488 0994
Available to backorder
Self-tapping screw M6x16
£0.88 £0.73

  108 Axle
Axle
ST6375 700 2411
Available to backorder
Axle
£56.44 £47.03

  110 Self-tapping screw M5x12
Self-tapping screw M5x12
ST9039 488 0974
In stock
Self-tapping screw M5x12
£0.76 £0.63

  111 Cover
Cover
ST6375 706 0740
Available to backorder
Cover
£6.16 £5.13

  116 Circlip 12x1
Circlip 12x1
ST9455 621 1130
In stock
Circlip 12x1
£0.66 £0.55

  117 V-belt pulley assy. (Contains 16+30)
V-belt pulley assy. (Contains 16+30)
ST6360 700 2513
Available to backorder
V-belt pulley assy. (Contains 16+30)
£36.86 £30.72
