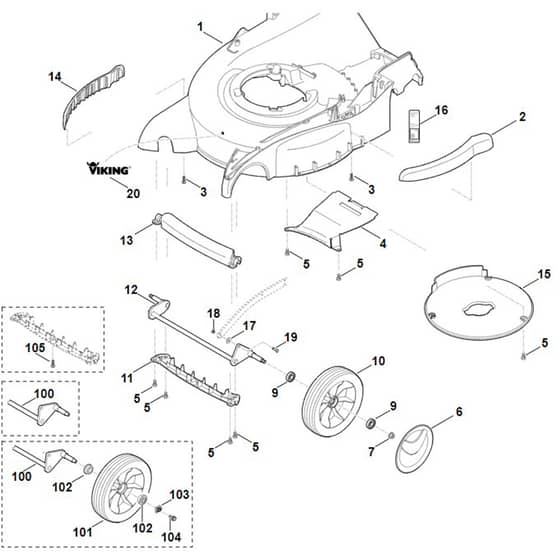

Viking MB650.0 OS - Housing - Front Axle - Parts Diagram

Name: Viking MB650.0 OS - Housing - Front Axle - Parts Diagram
SKU: mb650_0_os_housing_front_axle-group
Price: 0.28 GBP
Availability: InStock

Part No. mb650_0_os_housing_front_axle-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Viking MB650.0 OS - Housing - Front Axle - Parts Diagram

Description

Viking MB650.0 OS - Housing - Front Axle - Parts Diagram

	Part No.	Details
-1	ST6375 790 1901 Available to backorder	Carrying handle assy. (Contains 11+13)	£20.48 £17.07
1	ST6360 700 8500 Available to backorder	Housing	£350.88 £292.40
2	ST6375 706 7300 Available to backorder	Protection strip	£11.15 £9.29
3	ST9104 007 4289 In stock	Self-tapping screw P5x20	£0.95 £0.79
4	ST6360 701 4500 Available to backorder	Guiding plate	£33.35 £27.79
5	ST9039 488 0974 In stock	Self-tapping screw M5x12	£0.79 £0.66
6	ST6375 704 0301 In stock	Wheel cap	£7.08 £5.90
7	ST9216 261 1100 In stock	Hexagon nut M8	£0.79 £0.66
9	ST9503 003 5297 Available to backorder	Grooved ball bearing 6001-2TRS	£5.77 £4.81
10	ST6364 700 0400 In stock	Wheel assy. 200 (Contains 9)	£22.30 £18.58
12	ST6375 700 2402 Available to backorder	Axle assy. (Contains 19)	£45.64 £38.03
14	ST6375 706 7305 Available to backorder	Protection strip	£11.83 £9.86
15	ST6375 706 0750 Available to backorder	Cover	£20.96 £17.47
17	ST9307 021 0140 In stock	Washer 64	£0.34 £0.28
18	ST9212 260 0705 In stock	Hexagon nut M5	£0.34 £0.28
20	ST0000 967 4484 Available to backorder	Sticker VIKING	£2.15 £1.79
102	ST9503 003 9011 Available to backorder	Grooved ball bearing 27M-36x12	£6.25 £5.21
103	ST0000 708 7000 Available to backorder	Clamping ring	£0.48 £0.40
104	ST9039 488 0994 Available to backorder	Self-tapping screw M6x16	£0.91 £0.76
105	ST9104 007 4270 In stock	Self-tapping screw P5x16	£0.95 £0.79
