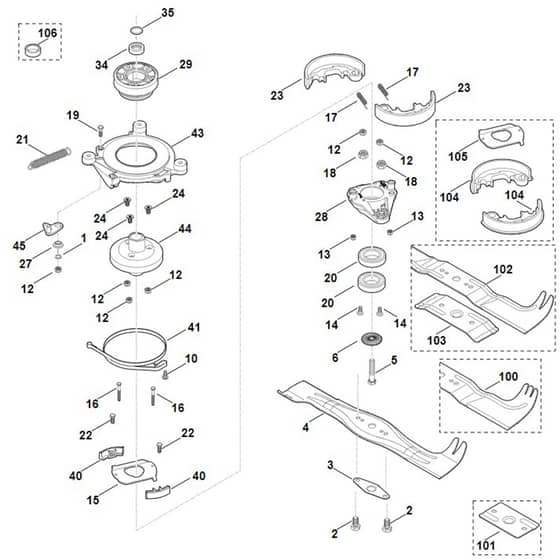

Viking MB650.0 OS - Blade, Blade Clutch - Parts Diagram

Description

Viking MB650.0 OS - Blade, Blade Clutch - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	ST9296 021 1569 Available to backorder	Washer 10x16x0.5	£0.48 £0.40
0	ST6375 007 1040 Available to backorder	Repair kit BBC (Contains 1+6+12+17+19+21+24+27+28+41+44+51+103-105)	£101.20 £84.33
3	ST6107 706 8210 Available to backorder	Guard plate	£4.84 £4.03
5	ST9007 319 9024 Available to backorder	Hexagon head screw 3/8"x2 1/4"	£0.80 £0.67
5	ST9007 319 9029 Available to backorder	Hexagon head screw 3/8"x2 1/4"	£2.08 £1.73
6	ST0000 702 6600 In stock	Washer	£4.18 £3.48
10	ST9075 478 4117 Available to backorder	Pan head screw IS D5x16	£0.88 £0.73
12	ST9214 263 0900 Available to backorder	Lock nut M6	£0.48 £0.40
13	ST9212 260 0705 In stock	Hexagon nut M5	£0.34 £0.28
14	ST9039 488 0974 In stock	Self-tapping screw M5x12	£0.76 £0.63
15	ST6375 162 2000 Available to backorder	Stop plate	£21.02 £17.52
16	ST9007 319 1090 Available to backorder	Hexagon head screw M5x40	£1.22 £1.02
17	ST6107 162 7700 Available to backorder	Compression spring	£1.32 £1.10
18	ST9212 260 1300 Available to backorder	Hexagon nut M10	£0.88 £0.73
19	ST9008 318 1320 Available to backorder	Hexagon head screw M6x20	£0.88 £0.73
20	ST9503 003 5632 Available to backorder	Grooved ball bearing 6006-2RSD EMQ	£9.58 £7.98
21	ST6107 162 7900 Available to backorder	Tension spring	£3.74 £3.12
22	ST9008 345 1280 Available to backorder	Hexagon head screw M6x16	£0.88 £0.73
24	ST9064 345 1260 Available to backorder	Countersunk screw M6x12	£0.76 £0.63
27	ST6107 162 8200 Available to backorder	Bushing	£9.24 £7.70
28	ST6107 160 2601 Available to backorder	Mounting device (Contains 13+14+16+18+20)	£30.36 £25.30
29	ST6360 700 2501 Available to backorder	V-belt pulley	£30.70 £25.58
35	ST9645 945 7692 In stock	O-ring 22x3	£0.66 £0.55
40	ST6107 007 1035 Available to backorder	Set clutch facing (Contains 12+22)	£26.96 £22.47
43	ST6107 162 3510 Available to backorder	Coupling flange	£25.52 £21.27
44	ST6360 160 2901 Available to backorder	Clutch drum (Contains 12+24)	£52.70 £43.92
45	ST6107 160 5000 Available to backorder	Lever	£9.58 £7.98
102	ST6360 760 9992 Available to backorder	Blade (Contains 103)	£34.22 £28.52
103	ST6375 706 8200 Available to backorder	Guard plate	£34.54 £28.78
104	ST6375 007 1050 Available to backorder	Set Clutch shoe (Contains 40)	£61.60 £51.33
106	ST6360 764 2801 Available to backorder	Distance sleeve	£8.58 £7.15
