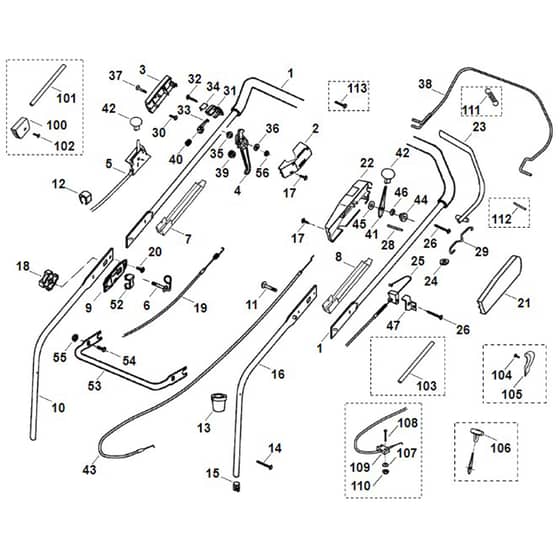

Viking MB555 C - Handle - Parts Diagram

Name: Viking MB555 C - Handle - Parts Diagram
SKU: mb555_c_handle-group
Price: 0.33 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Viking MB555 C - Handle - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	ST6105 700 9455 Out of stock	Upper handlebar	£89.64 £74.70
2	ST6105 182 1306 Out of stock	Housing left	£7.26 £6.05
3	ST6105 182 1301 Out of stock	Housing right	£7.40 £6.17
3	ST6105 182 1300 Out of stock	Housing right	£4.10 £3.42
5	ST6105 180 1110 Out of stock	Throttle cable	£15.28 £12.73
6	ST6105 703 5200 Out of stock	Cable guide	£3.17 £2.64
7	ST6105 706 6615 Out of stock	Guide right	£1.76 £1.47
9	ST6105 706 6600 Out of stock	Guide	£1.02 £0.85
11	ST6105 703 3706 Out of stock	Screw M8x35	£0.48 £0.40
11	ST9027 068 1880 Out of stock	Screw M8x35	£1.63 £1.36
12	ST6100 703 3100 Out of stock	Cable Clips	£4.02 £3.35
13	ST6103 708 7500 Out of stock	Insert	£2.04 £1.70
14	ST9039 488 1400 Out of stock	Self-tapping screw M6x40	£0.70 £0.58
15	ST6118 703 2800 Out of stock	Plug	£1.26 £1.05
21	ST6103 764 0600 Out of stock	Housing left	£2.34 £1.95
23	ST6103 760 1501 Out of stock	Switch lever	£19.38 £16.15
24	ST6101 704 4700 Out of stock	Rope pulley	£3.13 £2.61
26	ST9104 007 4295 Out of stock	Self-tapping screw P5x35	£1.39 £1.16
29	ST6103 703 5100 Out of stock	Tension spring	£2.15 £1.79
30	ST9104 007 4260 Out of stock	Self-tapping screw P5x12	£0.96 £0.80
32	ST9104 007 4294 Out of stock	Self-tapping screw P5x30	£1.15 £0.96
34	ST6105 162 7800 Out of stock	Flat spring	£1.50 £1.25
36	ST9291 020 0140 Out of stock	Washer 64	£0.40 £0.33
37	ST9027 068 1090 Out of stock	Flat head screw M5x40	£0.48 £0.40
38	ST6105 760 1506 Out of stock	Switch lever	£25.31 £21.09
40	ST6105 708 0805 Out of stock	Compression spring 9x11x26	£0.48 £0.40
41	ST6105 764 0210 Out of stock	Switch lever	£1.02 £0.85
42	ST0000 989 8100 Out of stock	Handle	£8.06 £6.72
44	ST6105 704 8200 Out of stock	Bearing bushing	£1.07 £0.89
46	ST9485 648 1534 Out of stock	Cup spring 25x12.2x0.9	£1.07 £0.89
47	ST6105 704 2750 Out of stock	Bracket	£0.76 £0.63
54	ST9027 068 1280 Out of stock	Flat head screw M6x16	£1.00 £0.83
55	ST9212 260 0900 In stock	Hexagon nut M6	£0.55 £0.46
102	ST9104 007 4270 In stock	Self-tapping screw P5x16	£1.00 £0.83
107	ST9307 020 0120 Out of stock	Washer 53	£0.40 £0.33
111	ST6105 708 0800 Out of stock	Tension spring	£1.50 £1.25
112	ST6105 704 2740 Out of stock	Support	£2.92 £2.43
113	ST9104 007 4291 Out of stock	Self-tapping screw P5x25	£2.29 £1.91
