Viking MB555 C - Chassis - Parts Diagram

Description

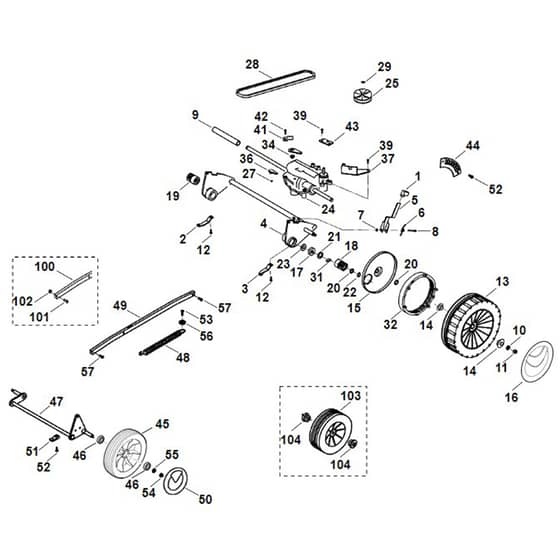

Viking MB555 C - Chassis - Parts Diagram

	Part No.	Details
1	ST6103 703 6601 Available to backorder	Knob	£6.60 £5.50
2	ST6103 704 1200 Available to backorder	Axle bracket right	£2.14 £1.78
3	ST6103 704 1201 Available to backorder	Axle bracket left	£2.14 £1.78
5	ST6105 703 6745 Available to backorder	Adjusting lever	£12.94 £10.78
8	ST9007 319 1090 Available to backorder	Hexagon head screw M5x40	£1.26 £1.05
9	ST6103 703 9111 Available to backorder	Tube	£2.15 £1.79
10	ST9291 020 0180 Available to backorder	Washer 84	£0.35 £0.29
11	ST9212 260 1100 In stock	Hexagon nut M8	£0.72 £0.60
12	ST9104 007 4270 In stock	Self-tapping screw P5x16	£0.95 £0.79
15	ST6105 704 0320 Available to backorder	Cover	£12.86 £10.72
16	ST6375 704 0311 Available to backorder	Wheel cap	£9.91 £8.26
16	ST6375 704 0310 Available to backorder	Wheel cap	£9.89 £8.24
17	ST9503 003 5297 Available to backorder	Grooved ball bearing 6001-2TRS	£5.77 £4.81
17	ST9503 003 5151 Available to backorder	Grooved ball bearing 6001-2Z	£15.37 £12.81
18	ST6105 704 7400 In stock	Pinion	£14.75 £12.29
19	ST6105 704 7410 In stock	Pinion	£14.95 £12.46
20	ST9296 021 1280 Available to backorder	Washer 12x18x1	£0.46 £0.38
21	ST9296 021 1608 In stock	Washer 12x18x0.5	£0.72 £0.60
22	ST9455 621 1130 In stock	Circlip 12x1	£0.68 £0.57
23	ST6103 704 7910 In stock	Protection disk	£1.19 £0.99
25	ST6107 704 1010 Available to backorder	V-belt pulley	£13.76 £11.47
27	ST9645 945 1390 Available to backorder	O-ring 14x2.5	£0.58 £0.48
28	ST6105 704 2111 Available to backorder	V-belt	£25.26 £21.05
29	ST9455 621 0850 In stock	Circlip 10x1	£0.72 £0.60
31	ST6103 704 8300 Available to backorder	Freewheel key	£1.72 £1.43
34	ST6105 160 5700 Available to backorder	Clutch lever	£15.91 £13.26
36	ST6105 643 3600 Available to backorder	Switch lever	£14.11 £11.76
37	ST6105 704 2760 Available to backorder	Support	£2.14 £1.78
39	ST9075 478 4610 Available to backorder	Pan head screw IS D6x16	£0.91 £0.76
39	ST9039 488 0993 Available to backorder	Self-tapping screw M6x16	£0.48 £0.40
44	ST6103 703 9500 Available to backorder	Notched plate	£12.36 £10.30
45	ST6364 700 0400 In stock	Wheel assy. 200 (Contains 46)	£22.30 £18.58
50	ST6375 704 0301 In stock	Wheel cap	£7.08 £5.90
51	ST6118 704 1200 Available to backorder	Axle bracket	£3.17 £2.64
56	ST9307 020 0120 Available to backorder	Washer 53	£0.35 £0.29
104	ST9503 003 9011 Available to backorder	Grooved ball bearing 27M-36x12	£6.25 £5.21
