Viking MB545.1 VM - Shaft, Gear Box - Parts Diagram

Viking MB545.1 VM - Shaft, Gear Box - Parts Diagram

Part No. mb545_1_vm_shaft_gear_box-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Viking MB545.1 VM - Shaft, Gear Box - Parts Diagram

Viking MB545.1 VM - Shaft, Gear Box - Parts Diagram

Description

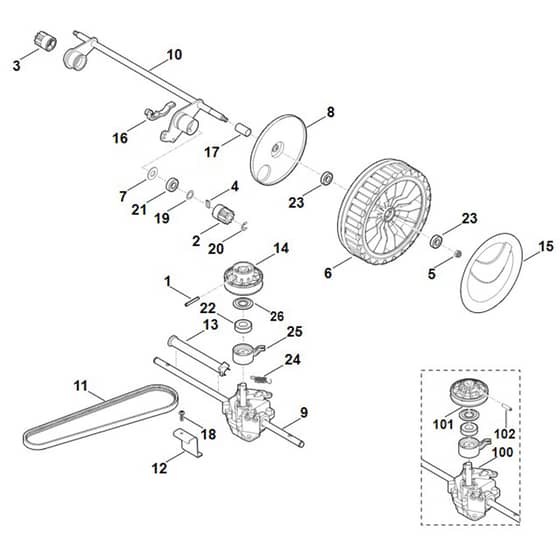

Viking MB545.1 VM - Shaft, Gear Box - Parts Diagram

Ref.		Img.	Part No.	Details
	1		ST9380 620 2730 Available to backorder	Roll pin 5x36		£0.91 £0.76
	2		ST6105 704 7400 In stock	Pinion		£14.75 £12.29
	3		ST6105 704 7410 In stock	Pinion		£14.95 £12.46
	4		ST0000 704 8300 In stock	Freewheel key		£1.76 £1.47
	5		ST9212 260 1100 In stock	Hexagon nut M8		£0.72 £0.60
	6		ST0000 700 0425 In stock	Wheel assy. 200 (Contains 8+23)		£27.47 £22.89
	7		ST6103 704 7910 In stock	Protection disk		£1.19 £0.99
	8		ST6375 704 3611 Available to backorder	Cover		£12.86 £10.72
	10		ST6340 700 2411 Available to backorder	Axle		£48.48 £40.40
	11		ST6340 704 2101 In stock	V-belt		£19.69 £16.41
	12		ST6340 704 2700 Available to backorder	Support		£9.23 £7.69
	13		ST6340 706 8100 Available to backorder	Protecting shell		£5.00 £4.17
	14		ST6364 700 2500 In stock	V-belt pulley assy.		£38.14 £31.78
	15		ST6375 704 0301 In stock	Wheel cap		£7.08 £5.90
	16		ST6375 763 2800 In stock	Axle guard		£2.84 £2.37
	17		ST6340 708 3700 Available to backorder	Spacer tube		£6.49 £5.41
	18		ST9104 007 4289 In stock	Self-tapping screw P5x20		£0.95 £0.79
	19		ST9296 021 1608 In stock	Washer 12x18x0.5		£0.72 £0.60
	20		ST9460 624 1001 In stock	E-clip 10		£0.37 £0.31
	21		ST9503 003 5297 Available to backorder	Grooved ball bearing 6001-2TRS		£5.77 £4.81
	24		ST6360 643 3800 Available to backorder	Tension spring		£1.60 £1.33
	100		ST6340 640 0113 Available to backorder	Gear box assy.		£115.56 £96.30
	101		ST6360 700 2513 Available to backorder	V-belt pulley assy. (Contains 22+25+26)		£38.14 £31.78
	102		ST9380 620 2620 Available to backorder	Roll pin 5x20		£0.68 £0.57
