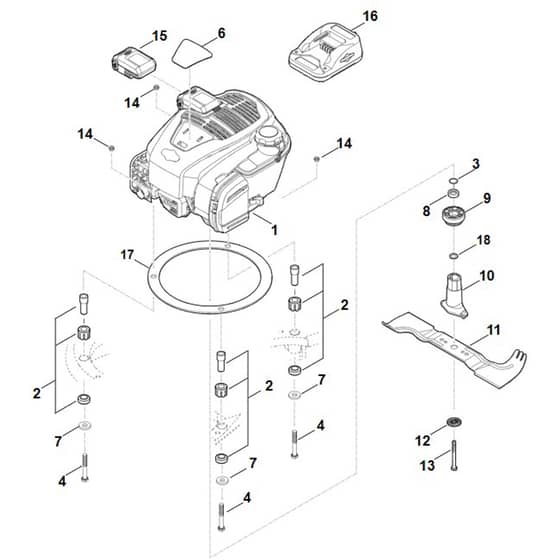

Viking MB545.1 VE - Engine - Blade - Parts Diagram

Description

	Part No.	Details
-1	ST6360 007 1080 In stock	Blade bushing set with V-belt pulley	£48.94 £40.78
2	ST6340 007 1026 Available to backorder	Silencer	£14.42 £12.02
3	ST9645 945 7692 In stock	O-ring 22x3	£0.66 £0.55
4	ST9007 319 2010 Available to backorder	Hexagon head screw M8x80	£2.42 £2.02
7	ST9307 021 0180 Available to backorder	Washer 84	£0.48 £0.40
8	ST6360 764 2801 Available to backorder	Distance sleeve	£8.58 £7.15
9	ST6364 700 2510 In stock	V-belt pulley assy.	£31.78 £26.48
9	ST6360 700 2501 Available to backorder	V-belt pulley	£30.70 £25.58
10	ST6364 702 5000 In stock	Blade bushing	£20.36 £16.97
10	ST6360 702 5001 Available to backorder	Blade bushing	£20.56 £17.13
11	ST6340 702 0100 In stock	Blade	£29.92 £24.93
12	ST0000 702 6600 Available to backorder	Washer	£4.18 £3.48
13	ST9008 319 9075 Available to backorder	Hexagon head screw 3/8"x85	£2.86 £2.38
14	ST9214 320 1105 Available to backorder	Lock nut M8	£0.66 £0.55
17	ST6340 701 4000 Available to backorder	Intermediate ring	£22.34 £18.62
18	ST6336 702 1800 Available to backorder	Washer 13x196x2	£1.32 £1.10
