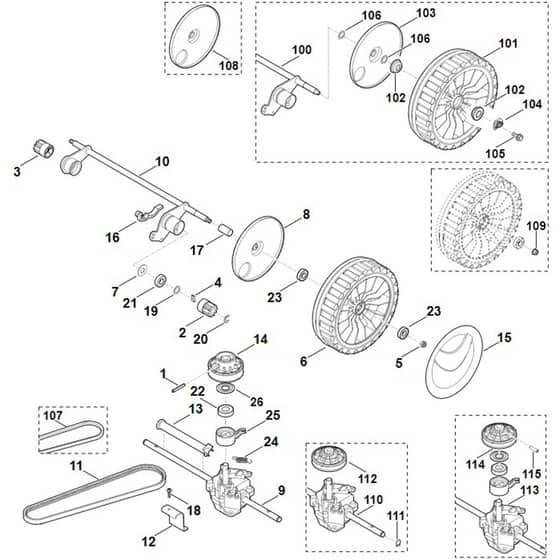

Viking MB545.0VE - Shaft, Gear Box - Parts Diagram

Ref. Img. Part No. Details
  1 Roll pin 5x36
Roll pin 5x36
ST9380 620 2730
Available to backorder
Roll pin 5x36
£0.88 £0.73

  2 Pinion
Pinion
ST6105 704 7400
In stock
Pinion
£13.76 £11.47

  3 Pinion
Pinion
ST6105 704 7410
In stock
Pinion
£13.96 £11.63

  4 Freewheel key
Freewheel key
ST0000 704 8300
In stock
Freewheel key
£1.66 £1.38

  5 Hexagon nut M8
Hexagon nut M8
ST9212 260 1100
In stock
Hexagon nut M8
£0.66 £0.55

  6 Wheel assy. 200 (Contains 8+23)
Wheel assy. 200 (Contains 8+23)
ST0000 700 0425
In stock
Wheel assy. 200 (Contains 8+23)
£25.64 £21.37

  7 Protection disk
Protection disk
ST6103 704 7910
Available to backorder
Protection disk
£1.10 £0.92

  8 Cover
Cover
ST6375 704 3611
Available to backorder
Cover
£12.44 £10.37

  10 Axle
Axle
ST6340 700 2411
Available to backorder
Axle
£46.86 £39.05

  11 V-belt
V-belt
ST6340 704 2101
Available to backorder
V-belt
£18.38 £15.32

  12 Support
Support
ST6340 704 2700
Available to backorder
Support
£8.92 £7.43

  13 Protecting shell
Protecting shell
ST6340 706 8100
Available to backorder
Protecting shell
£4.84 £4.03

  14 V-belt pulley assy.
V-belt pulley assy.
ST6364 700 2500
In stock
V-belt pulley assy.
£36.86 £30.72

  15 Wheel cap
Wheel cap
ST6375 704 0301
In stock
Wheel cap
£6.60 £5.50

  16 Axle guard
Axle guard
ST6375 763 2800
Available to backorder
Axle guard
£2.64 £2.20

  17 Spacer tube
Spacer tube
ST6340 708 3700
Available to backorder
Spacer tube
£6.28 £5.23

  18 Self-tapping screw P5x20
Self-tapping screw P5x20
ST9104 007 4289
In stock
Self-tapping screw P5x20
£0.88 £0.73

  18 Self-tapping screw P5x16
Self-tapping screw P5x16
ST9104 007 4270
In stock
Self-tapping screw P5x16
£0.88 £0.73

  20 E-clip 10
E-clip 10
ST9460 624 1001
In stock
E-clip 10
£0.34 £0.28

  21 Grooved ball bearing 6001-2TRS
Grooved ball bearing 6001-2TRS
ST9503 003 5297
In stock
Grooved ball bearing 6001-2TRS
£5.38 £4.48

  21 Grooved ball bearing 6001-2Z
Grooved ball bearing 6001-2Z
ST9503 003 5151
Available to backorder
Grooved ball bearing 6001-2Z
£14.86 £12.38

  24 Tension spring
Tension spring
ST6360 643 3800
Available to backorder
Tension spring
£1.54 £1.28

  103 Cover
Cover
ST6105 704 0320
Available to backorder
Cover
£12.44 £10.37

  104 Clamping ring
Clamping ring
ST0000 708 7000
Available to backorder
Clamping ring
£0.48 £0.40

  105 Self-tapping screw M6x16
Self-tapping screw M6x16
ST9039 488 0994
Available to backorder
Self-tapping screw M6x16
£0.88 £0.73

  106 Washer 12x18x0.5
Washer 12x18x0.5
ST9296 021 1608
Available to backorder
Washer 12x18x0.5
£0.66 £0.55

  109 Hexagon nut M8
Hexagon nut M8
ST9216 261 1100
Available to backorder
Hexagon nut M8
£0.76 £0.63

  111 Circlip 12x1
Circlip 12x1
ST9455 621 1130
In stock
Circlip 12x1
£0.66 £0.55

  112 V-belt pulley assy. (Contains 22+25)
V-belt pulley assy. (Contains 22+25)
ST6360 700 2513
Available to backorder
V-belt pulley assy. (Contains 22+25)
£36.86 £30.72

  113 Gear box assy. (Contains 22+24+25+114+115)
Gear box assy. (Contains 22+24+25+114+115)
ST6340 640 0113
Available to backorder
Gear box assy. (Contains 22+24+25+114+115)
£115.50 £96.25

  115 Roll pin 5x20
Roll pin 5x20
ST9380 620 2620
Available to backorder
Roll pin 5x20
£0.66 £0.55
