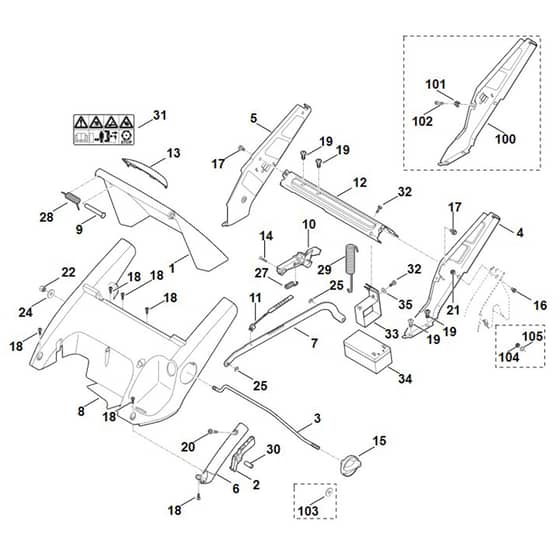

Viking MB545.0VE - Frame, Height Adjustment - Parts Diagram

Description

Viking MB545.0VE - Frame, Height Adjustment - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	ST6340 700 2700 Available to backorder	Flap assy. (Contains 13)	£36.64 £30.53
2	ST6340 700 7000 Available to backorder	Lever (Contains 30)	£6.04 £5.03
3	ST6340 703 1700 Available to backorder	Rod	£33.22 £27.68
4	ST6340 760 4291 Available to backorder	Bracket left (Contains 20)	£53.90 £44.92
5	ST6340 703 6205 Available to backorder	Bracket right	£50.92 £42.43
6	ST6340 703 6600 Available to backorder	Knob	£14.20 £11.83
7	ST6340 780 0400 Available to backorder	Translation lever assy.	£40.82 £34.02
8	ST6340 706 0703 Available to backorder	Cover	£57.76 £48.13
9	ST6340 706 5900 Available to backorder	Bolt	£5.50 £4.58
10	ST6340 780 3190 Available to backorder	Notched quadrant (Contains 14)	£8.58 £7.15
11	ST6340 763 2000 Available to backorder	Pointer	£1.66 £1.38
12	ST6340 763 4501 Available to backorder	Strud	£51.70 £43.08
13	ST6375 706 6700 Available to backorder	Handle molding	£13.54 £11.28
13	ST6375 706 6705 Available to backorder	Handle molding	£14.38 £11.98
14	ST6375 708 8400 Available to backorder	Screw M4x20	£1.66 £1.38
15	ST6375 760 1800 Available to backorder	Rotary handle assy.	£10.34 £8.62
16	ST9008 319 1260 Available to backorder	Hexagon head screw M6x12	£0.76 £0.63
17	ST9039 488 1266 Available to backorder	Self-tapping screw M6x12	£0.76 £0.63
17	ST9039 488 1230 Available to backorder	Self-tapping screw M6x8	£0.74 £0.62
18	ST9104 007 4270 In stock	Self-tapping screw P5x16	£0.88 £0.73
19	ST9104 007 9975 Available to backorder	Self-tapping screw P8x18	£1.00 £0.83
20	ST9070 010 1050 Available to backorder	Screw TT-M5x28	£1.00 £0.83
21	ST9216 261 0901 Available to backorder	Hexagon nut M6	£0.66 £0.55
22	ST9241 288 1980 Available to backorder	Cap nut M8	£0.76 £0.63
25	ST9460 624 0400 In stock	E-clip 4	£0.47 £0.39
27	ST6375 703 5111 Available to backorder	Tension spring	£2.08 £1.73
28	ST6340 708 4505 Available to backorder	Torsion spring	£4.18 £3.48
29	ST6340 703 5100 Available to backorder	Tension spring	£13.96 £11.63
31	ST0000 967 3679 Available to backorder	Warning note	£2.08 £1.73
32	ST9039 488 0994 Available to backorder	Self-tapping screw M6x16	£0.88 £0.73
33	ST6340 403 0400 Available to backorder	Battery holder	£31.46 £26.22
34	ST6340 400 1100 Available to backorder	Battery 12 V	£47.52 £39.60
35	ST9298 021 1528 Available to backorder	Washer 64x20x125	£0.48 £0.40
101	ST9991 003 1045 Available to backorder	Cage nut M6	£1.32 £1.10
103	ST9307 021 0180 Available to backorder	Washer 84	£0.48 £0.40
104	ST9212 260 0900 In stock	Hexagon nut M6	£0.48 £0.40
105	ST9291 020 0140 Available to backorder	Washer 64	£0.48 £0.40
