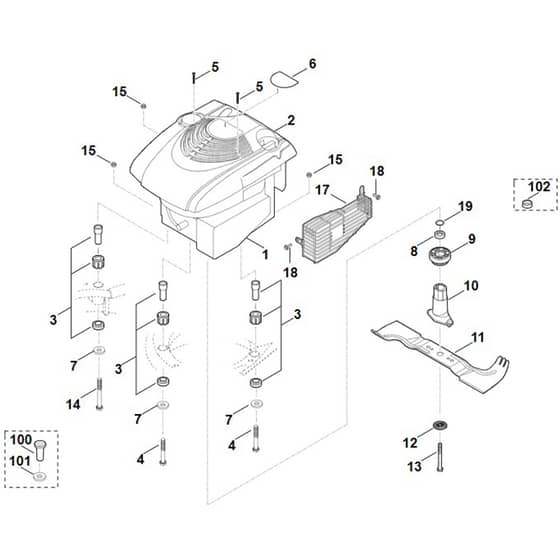

Viking MB545.0VE - Engine - Blade - Parts Diagram

Description

	Part No.	Details
-1	ST6360 007 1080 In stock	Blade bushing set with V-belt pulley (Contains 9+10)	£48.94 £40.78
2	ST0000 082 0413 Available to backorder	Cover assy.	£42.80 £35.67
3	ST6340 007 1025 Available to backorder	Silencer	£14.42 £12.02
4	ST9007 319 2010 Available to backorder	Hexagon head screw M8x80	£2.42 £2.02
5	ST9104 003 0820 Available to backorder	Screw IS P4x30	£0.88 £0.73
6	ST6340 967 3825 Available to backorder	Name plate MB 545 VE	£4.46 £3.72
7	ST9307 021 0180 Available to backorder	Washer 84	£0.48 £0.40
9	ST6364 700 2510 In stock	V-belt pulley assy.	£31.78 £26.48
9	ST6360 700 2501 Available to backorder	V-belt pulley	£30.70 £25.58
10	ST6364 702 5000 In stock	Blade bushing	£20.36 £16.97
10	ST6360 702 5001 Available to backorder	Blade bushing	£20.56 £17.13
11	ST6340 702 0100 In stock	Blade	£29.92 £24.93
12	ST0000 702 6600 Available to backorder	Washer	£4.18 £3.48
13	ST9008 319 9075 Available to backorder	Hexagon head screw 3/8"x85	£2.86 £2.38
14	ST9007 319 2060 Available to backorder	Hexagon head screw M8x110	£3.08 £2.57
15	ST9214 320 1105 Available to backorder	Lock nut M8	£0.66 £0.55
17	ST6375 140 7290 Available to backorder	Protective grating (Contains 18)	£35.42 £29.52
18	ST9039 488 9072 Available to backorder	Screw 10-32x3/8"	£1.42 £1.18
19	ST9645 945 7692 In stock	O-ring 22x3	£0.66 £0.55
100	ST6340 703 9200 Available to backorder	Bushing	£16.06 £13.38
101	ST9309 021 0200 Available to backorder	Washer 10.5	£0.48 £0.40
102	ST6360 764 2801 Available to backorder	Distance sleeve	£8.58 £7.15
