Viking MB545.0V - Shaft, Gear Box - Parts Diagram

Description

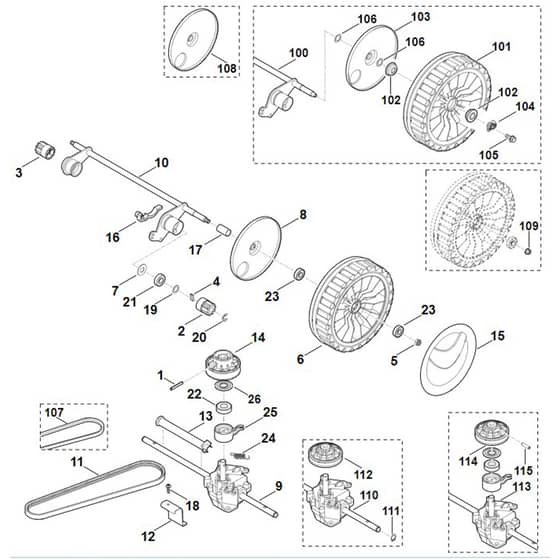

Viking MB545.0V - Shaft, Gear Box - Parts Diagram

	Part No.	Details
1	ST9380 620 2730 Available to backorder	Roll pin 5x36	£0.91 £0.76
2	ST6105 704 7400 In stock	Pinion	£14.75 £12.29
3	ST6105 704 7410 In stock	Pinion	£14.95 £12.46
4	ST0000 704 8300 In stock	Freewheel key	£1.76 £1.47
5	ST9212 260 1100 In stock	Hexagon nut M8	£0.72 £0.60
6	ST0000 700 0425 In stock	Wheel assy. 200 (Contains 8+23)	£27.47 £22.89
7	ST6103 704 7910 In stock	Protection disk	£1.19 £0.99
8	ST6375 704 3611 Available to backorder	Cover	£12.86 £10.72
10	ST6340 700 2411 Available to backorder	Axle	£48.48 £40.40
11	ST6340 704 2101 In stock	V-belt	£19.69 £16.41
12	ST6340 704 2700 Available to backorder	Support	£9.23 £7.69
13	ST6340 706 8100 Available to backorder	Protecting shell	£5.00 £4.17
14	ST6364 700 2500 In stock	V-belt pulley assy. (Contains 25+26)	£38.14 £31.78
15	ST6375 704 0301 In stock	Wheel cap	£7.08 £5.90
16	ST6375 763 2800 In stock	Axle guard	£2.84 £2.37
17	ST6340 708 3700 Available to backorder	Spacer tube	£6.49 £5.41
18	ST9104 007 4289 In stock	Self-tapping screw P5x20	£0.95 £0.79
18	ST9104 007 4270 In stock	Self-tapping screw P5x16	£0.95 £0.79
20	ST9460 624 1001 In stock	E-clip 10	£0.37 £0.31
21	ST9503 003 5297 Available to backorder	Grooved ball bearing 6001-2TRS	£5.77 £4.81
21	ST9503 003 5151 Available to backorder	Grooved ball bearing 6001-2Z	£15.37 £12.81
24	ST6360 643 3800 Available to backorder	Tension spring	£1.60 £1.33
103	ST6105 704 0320 Available to backorder	Cover	£12.86 £10.72
104	ST0000 708 7000 Available to backorder	Clamping ring	£0.48 £0.40
105	ST9039 488 0994 Available to backorder	Self-tapping screw M6x16	£0.91 £0.76
106	ST9296 021 1608 In stock	Washer 12x18x0.5	£0.72 £0.60
109	ST9216 261 1100 In stock	Hexagon nut M8	£0.79 £0.66
111	ST9455 621 1130 In stock	Circlip 12x1	£0.68 £0.57
112	ST6360 700 2513 Available to backorder	V-belt pulley assy. (Contains 22+25)	£38.14 £31.78
113	ST6340 640 0113 Available to backorder	Gear box assy.	£115.56 £96.30
115	ST9380 620 2620 Available to backorder	Roll pin 5x20	£0.68 £0.57
