Viking MB545.0 - Chassis - Parts Diagram

Viking MB545.0 - Chassis - Parts Diagram

Part No. mb545_0_chassis-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

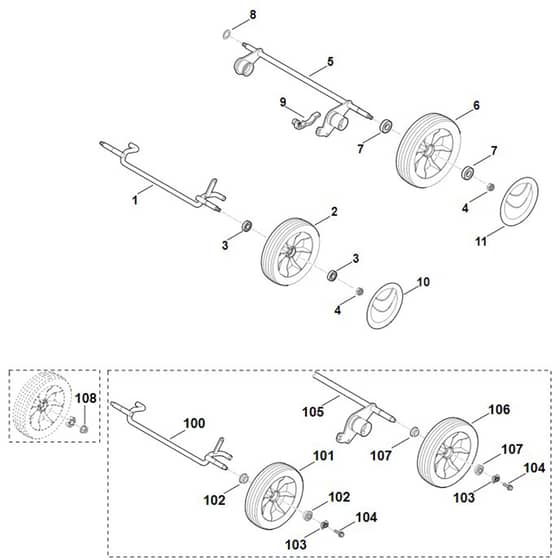

Viking MB545.0 - Chassis - Parts Diagram

Viking MB545.0 - Chassis - Parts Diagram

Description

Viking MB545.0 - Chassis - Parts Diagram

Ref.		Img.	Part No.	Details
	1		ST6340 700 2401 Available to backorder	Axle		£42.23 £35.19
	2		ST6360 700 0400 In stock	Wheel assy. 180 (Contains 3)		£19.46 £16.22
	3		ST9503 003 5297 Available to backorder	Grooved ball bearing 6001-2TRS		£5.77 £4.81
	4		ST9212 260 1100 In stock	Hexagon nut M8		£0.72 £0.60
	5		ST6340 700 2416 Available to backorder	Axle		£47.21 £39.34
	6		ST6364 700 0400 In stock	Wheel assy. 200 (Contains 7)		£22.30 £18.58
	8		ST9296 021 1608 In stock	Washer 12x18x0.5		£0.72 £0.60
	9		ST6375 763 2800 In stock	Axle guard		£2.84 £2.37
	10		ST6340 704 0301 Available to backorder	Wheel cap		£5.42 £4.52
	11		ST6375 704 0301 In stock	Wheel cap		£7.08 £5.90
	102		ST9503 003 9011 Available to backorder	Grooved ball bearing 27M-36x12		£6.25 £5.21
	103		ST0000 708 7000 Available to backorder	Clamping ring		£0.48 £0.40
	104		ST9039 488 0994 Available to backorder	Self-tapping screw M6x16		£0.91 £0.76
	108		ST9216 261 1100 In stock	Hexagon nut M8		£0.79 £0.66

Description

Viking MB545.0 - Chassis - Parts Diagram
