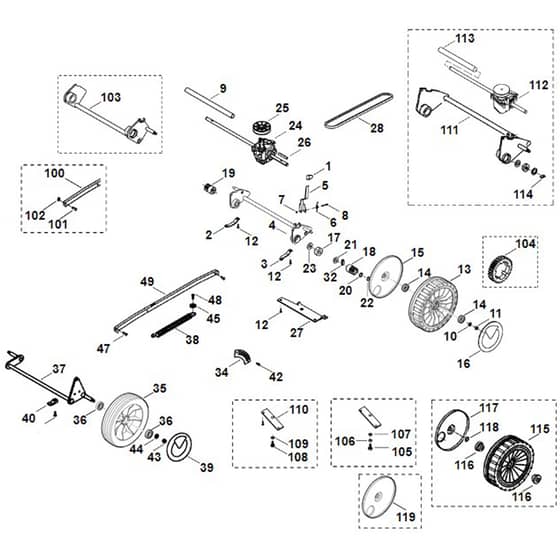

Viking MB505E - Chassis - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	ST6103 703 6601 Available to backorder	Knob	£6.38 £5.32
2	ST6103 704 1200 Available to backorder	Axle bracket right	£2.06 £1.72
3	ST6103 704 1201 Available to backorder	Axle bracket left	£2.06 £1.72
4	ST6107 700 2422 Available to backorder	Axle	£39.94 £33.28
5	ST6105 703 6745 Available to backorder	Adjusting lever	£13.57 £11.31
7	ST9212 260 0705 In stock	Hexagon nut M5	£0.34 £0.28
8	ST9007 319 1090 Available to backorder	Hexagon head screw M5x40	£1.22 £1.02
9	ST6105 703 9111 Available to backorder	Tube	£2.08 £1.73
10	ST9291 020 0180 Available to backorder	Washer 84	£0.48 £0.40
11	ST9212 260 1100 In stock	Hexagon nut M8	£0.66 £0.55
12	ST9104 007 4270 In stock	Self-tapping screw P5x16	£0.88 £0.73
13	ST0000 700 0425 In stock	Wheel assy. 200 (Contains 14+15)	£25.64 £21.37
14	ST9503 003 5297 In stock	Grooved ball bearing 6001-2TRS	£5.38 £4.48
15	ST6375 704 3611 Available to backorder	Cover	£12.44 £10.37
16	ST6375 704 0301 In stock	Wheel cap	£6.60 £5.50
17	ST9503 003 5151 Available to backorder	Grooved ball bearing 6001-2Z	£14.86 £12.38
18	ST6105 704 7400 Available to backorder	Pinion	£13.76 £11.47
19	ST0000 640 2505 In stock	Pinion	£12.32 £10.27
19	ST6105 704 7410 Available to backorder	Pinion	£13.96 £11.63
21	ST9296 021 1608 Available to backorder	Washer 12x18x0.5	£0.66 £0.55
22	ST9455 621 1130 In stock	Circlip 12x1	£0.66 £0.55
23	ST6103 704 7910 Available to backorder	Protection disk	£1.10 £0.92
24	ST6105 640 0106 Available to backorder	Gear box (Contains 25+26)	£67.68 £56.40
25	ST6103 704 1015 Available to backorder	V-belt pulley	£9.58 £7.98
26	ST9380 620 2700 Available to backorder	Roll pin 5x30	£0.76 £0.63
27	ST6105 704 2731 Available to backorder	Support	£2.90 £2.42
28	ST6105 704 2100 Available to backorder	V-belt	£20.80 £17.33
32	ST0000 704 8300 In stock	Freewheel key	£1.66 £1.38
34	ST6103 703 9500 Available to backorder	Notched plate	£13.08 £10.90
35	ST6364 700 0400 Available to backorder	Wheel assy. 200 (Contains 36)	£20.80 £17.33
35	ST6105 700 0491 Available to backorder	Wheel (Contains 36)	£22.44 £18.70
36	ST9503 003 9011 Available to backorder	Grooved ball bearing 27M-36x12	£6.04 £5.03
39	ST6100 704 0303 Available to backorder	Wheel cap	£9.86 £8.22
40	ST6118 704 1200 Available to backorder	Axle bracket	£3.06 £2.55
44	ST9291 021 0180 Available to backorder	Washer 8.4	£0.48 £0.40
45	ST9307 020 0120 Available to backorder	Washer 53	£0.48 £0.40
106	ST9460 624 4028 Available to backorder	E-clip 6.4	£0.48 £0.40
108	ST9075 478 4610 Available to backorder	Pan head screw IS D6x16	£0.88 £0.73
109	ST9307 021 0140 In stock	Washer 64	£0.34 £0.28
114	ST6103 704 8300 Available to backorder	Freewheel key	£1.66 £1.38
117	ST6105 704 0320 Available to backorder	Cover	£12.44 £10.37
118	ST9296 021 1280 Available to backorder	Washer 12x18x1	£0.48 £0.40
