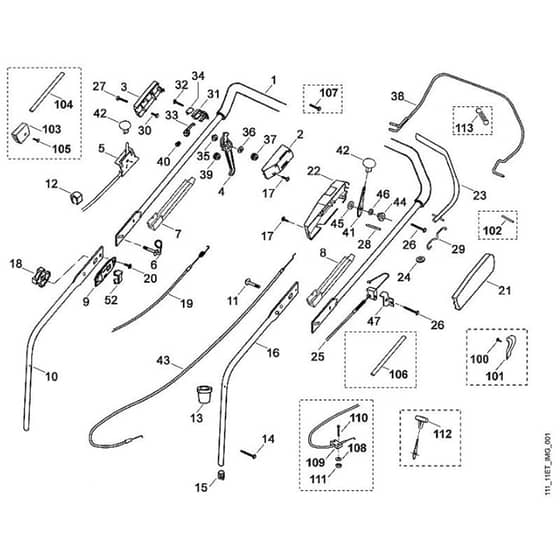

Viking MB505 S - Handle - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	ST6105 700 9455 Available to backorder	Upper handlebar	£89.64 £74.70
2	ST6105 182 1306 Available to backorder	Housing left	£7.06 £5.88
3	ST6105 182 1301 Available to backorder	Housing right	£7.20 £6.00
3	ST6105 182 1300 Available to backorder	Housing right	£3.98 £3.32
6	ST6105 760 3805 Available to backorder	Cable guide	£4.70 £3.92
7	ST6105 706 6615 Available to backorder	Guide right	£1.70 £1.42
9	ST6105 706 6600 Available to backorder	Guide	£1.00 £0.83
11	ST6105 703 3706 Available to backorder	Screw M8x35	£0.48 £0.40
11	ST9027 068 1880 Available to backorder	Screw M8x35	£1.42 £1.18
12	ST6100 703 3100 Available to backorder	Cable Clips	£3.64 £3.03
13	ST6103 708 7500 Available to backorder	Insert	£2.04 £1.70
14	ST9039 488 1400 Available to backorder	Self-tapping screw M6x40	£0.68 £0.57
15	ST6118 703 2800 Available to backorder	Plug	£1.10 £0.92
17	ST9104 007 4465 Available to backorder	Self-tapping screw P6x40	£1.30 £1.08
23	ST6103 760 1501 Available to backorder	Switch lever	£19.38 £16.15
23	ST6103 760 1500 Available to backorder	Switch lever	£30.22 £25.18
24	ST6101 704 4700 Available to backorder	Rope pulley	£2.74 £2.28
26	ST9104 007 4295 Available to backorder	Self-tapping screw P5x35	£1.22 £1.02
27	ST9027 068 1090 Available to backorder	Flat head screw M5x40	£0.48 £0.40
29	ST6103 703 5100 Available to backorder	Tension spring	£1.88 £1.57
30	ST9104 007 4260 In stock	Self-tapping screw P5x12	£0.76 £0.63
32	ST9104 007 4294 Available to backorder	Self-tapping screw P5x30	£1.00 £0.83
34	ST6105 162 7800 Available to backorder	Flat spring	£1.32 £1.10
36	ST9291 021 0140 In stock	Washer 6.4	£0.36 £0.30
38	ST6105 760 1506 Available to backorder	Switch lever	£24.60 £20.50
40	ST6105 708 0805 Available to backorder	Compression spring 9x11x26	£0.48 £0.40
41	ST6105 764 0210 Available to backorder	Switch lever	£1.00 £0.83
42	ST0000 989 8100 Available to backorder	Handle	£7.16 £5.97
44	ST6105 704 8200 Available to backorder	Bearing bushing	£1.01 £0.84
45	ST9291 021 0200 In stock	Washer 10.5	£0.48 £0.40
46	ST9485 648 1534 Available to backorder	Cup spring 25x12.2x0.9	£1.04 £0.87
47	ST6105 704 2750 Available to backorder	Bracket	£0.74 £0.62
102	ST6105 704 2740 Available to backorder	Support	£2.54 £2.12
105	ST9104 007 4270 In stock	Self-tapping screw P5x16 ( Up to Serial Number 047227087 )	£0.88 £0.73
107	ST9104 007 4291 Available to backorder	Self-tapping screw P5x25 ( Up to Serial Number 044966679 )	£1.00 £0.83
109	ST9307 021 0120 Available to backorder	Washer 5.3 ( Up to Serial Number 040564372 )	£0.48 £0.40
111	ST9212 260 0700 Available to backorder	Hexagon nut M5	£0.48 £0.40
113	ST6105 708 0800 Available to backorder	Tension spring ( Up to Serial Number 040568718 )	£1.32 £1.10
