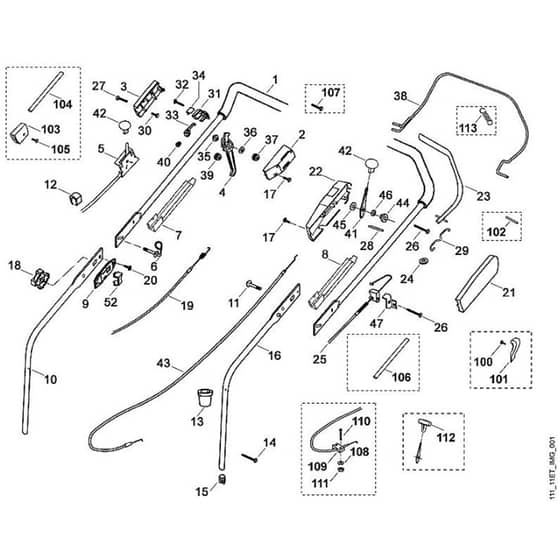

Viking MB505 C - Handle - Parts Diagram

Name: Viking MB505 C - Handle - Parts Diagram
SKU: mb505_c_handle-group
Price: 0.29 GBP
Availability: InStock

Part No. mb505_c_handle-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Viking MB505 C - Handle - Parts Diagram

	Part No.	Details
1	ST6105 700 9455 Available to backorder	Upper handlebar	£85.32 £71.10
2	ST6105 182 1306 Available to backorder	Housing left	£7.31 £6.09
3	ST6105 182 1300 Available to backorder	Housing right	£4.12 £3.43
3	ST6105 182 1301 Available to backorder	Housing right	£7.45 £6.21
5	ST6105 180 1110 Available to backorder	Throttle cable	£14.54 £12.12
6	ST6105 760 3805 Available to backorder	Cable guide	£4.86 £4.05
7	ST6105 706 6615 Available to backorder	Guide right	£1.76 £1.47
9	ST6105 706 6600 Available to backorder	Guide	£1.03 £0.86
11	ST9027 068 1880 Available to backorder	Screw M8x35	£1.46 £1.22
11	ST6105 703 3706 Available to backorder	Screw M8x35	£0.48 £0.40
12	ST6100 703 3100 Available to backorder	Cable Clips	£3.77 £3.14
13	ST6103 708 7500 Available to backorder	Insert	£1.94 £1.62
14	ST9039 488 1400 Available to backorder	Self-tapping screw M6x40	£0.71 £0.59
15	ST6118 703 2800 Available to backorder	Plug	£1.14 £0.95
17	ST9104 007 4465 Available to backorder	Self-tapping screw P6x40	£1.34 £1.12
24	ST6101 704 4700 Available to backorder	Rope pulley	£2.83 £2.36
26	ST9104 007 4295 Available to backorder	Self-tapping screw P5x35	£1.26 £1.05
27	ST9027 068 1090 Available to backorder	Flat head screw M5x40	£0.48 £0.40
29	ST6103 703 5100 Available to backorder	Tension spring	£1.94 £1.62
30	ST9104 007 4260 In stock	Self-tapping screw P5x12	£0.83 £0.69
32	ST9104 007 4294 Available to backorder	Self-tapping screw P5x30	£1.03 £0.86
34	ST6105 162 7800 Available to backorder	Flat spring	£1.37 £1.14
36	ST9291 021 0140 In stock	Washer 6.4	£0.37 £0.31
38	ST6105 760 1506 Available to backorder	Switch lever	£25.45 £21.21
40	ST6105 708 0805 Available to backorder	Compression spring 9x11x26	£0.48 £0.40
41	ST6105 764 0210 Available to backorder	Switch lever	£1.03 £0.86
42	ST0000 989 8100 Available to backorder	Handle	£7.40 £6.17
44	ST6105 704 8200 Available to backorder	Bearing bushing	£1.06 £0.88
45	ST9291 021 0200 In stock	Washer 10.5	£0.48 £0.40
46	ST9485 648 1534 Available to backorder	Cup spring 25x12.2x0.9	£1.08 £0.90
47	ST6105 704 2750 Available to backorder	Bracket	£0.77 £0.64
102	ST6105 704 2740 Available to backorder	Support ( Up to Serial Number 046910094 )	£2.63 £2.19
105	ST9104 007 4270 In stock	Self-tapping screw P5x16 ( Up to Serial Number 047227087 )	£0.95 £0.79
107	ST9104 007 4291 Available to backorder	Self-tapping screw P5x25 ( Up to Serial Number 044966679 )	£1.03 £0.86
109	ST9307 021 0120 Available to backorder	Washer 5.3 ( Up to Serial Number 040564372 )	£0.35 £0.29
111	ST9212 260 0700 Available to backorder	Hexagon nut M5 ( Up to Serial Number 040564372 )	£0.35 £0.29
113	ST6105 708 0800 Available to backorder	Tension spring ( Up to Serial Number 040568718 )	£1.37 £1.14
