Viking MB455 BC - Engine - Blade - Parts Diagram

Name: Viking MB455 BC - Engine - Blade - Parts Diagram
SKU: mb455_bc_engine_blade-group
Price: 0.28 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Viking MB455 BC - Engine - Blade - Parts Diagram

Description

Viking MB455 BC - Engine - Blade - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
3	ST6340 702 0100 In stock	Blade	£29.92 £24.93
4	ST0000 702 6600 Available to backorder	Washer	£4.18 £3.48
6	ST9007 319 2010 Available to backorder	Hexagon head screw M8x80	£2.42 £2.02
7	ST9008 341 2360 Available to backorder	Hexagon head screw M10x20	£1.22 £1.02
8	ST0000 400 7100 Available to backorder	Spark plug boot	£7.42 £6.18
9	ST9007 319 2060 Available to backorder	Hexagon head screw M8x110	£3.08 £2.57
10	ST9307 021 0180 Available to backorder	Washer 84	£0.48 £0.40
14	ST9212 260 1100 In stock	Hexagon nut M8	£0.66 £0.55
14	ST9214 320 1105 Available to backorder	Lock nut M8	£0.66 £0.55
15	ST9309 021 0180 Available to backorder	Washer 8.4	£0.48 £0.40
17	ST9104 003 0820 Available to backorder	Screw IS P4x30	£0.88 £0.73
18	ST6107 162 3510 Available to backorder	Coupling flange	£25.52 £21.27
19	ST9008 345 1280 Available to backorder	Hexagon head screw M6x16	£0.88 £0.73
21	ST9214 263 0900 Available to backorder	Lock nut M6	£0.48 £0.40
23	ST9296 021 1569 Available to backorder	Washer 10x16x0.5	£0.48 £0.40
24	ST6107 160 5000 Available to backorder	Lever	£9.58 £7.98
25	ST6107 162 7900 Available to backorder	Tension spring	£3.74 £3.12
26	ST6107 162 8200 Available to backorder	Bushing	£9.24 £7.70
27	ST9008 318 1320 Available to backorder	Hexagon head screw M6x20	£0.88 £0.73
29	ST9075 478 4117 Available to backorder	Pan head screw IS D5x16	£0.88 £0.73
30	ST9007 319 1090 Available to backorder	Hexagon head screw M5x40	£1.22 £1.02

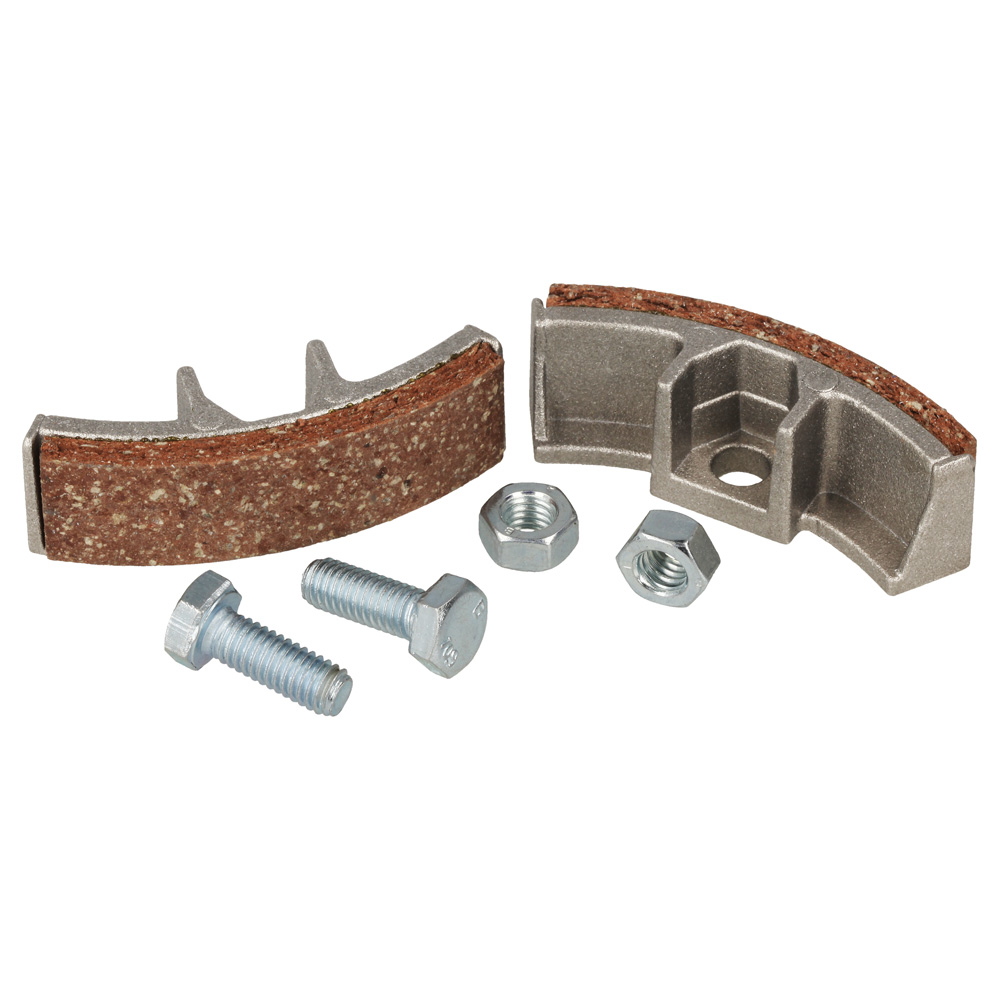

32	ST6107 007 1035 Available to backorder	Set clutch facing (Contains 31+36)	£26.96 £22.47
33	ST6375 162 2000 Available to backorder	Stop plate	£21.02 £17.52
34	ST6107 162 7700 Available to backorder	Compression spring	£1.32 £1.10

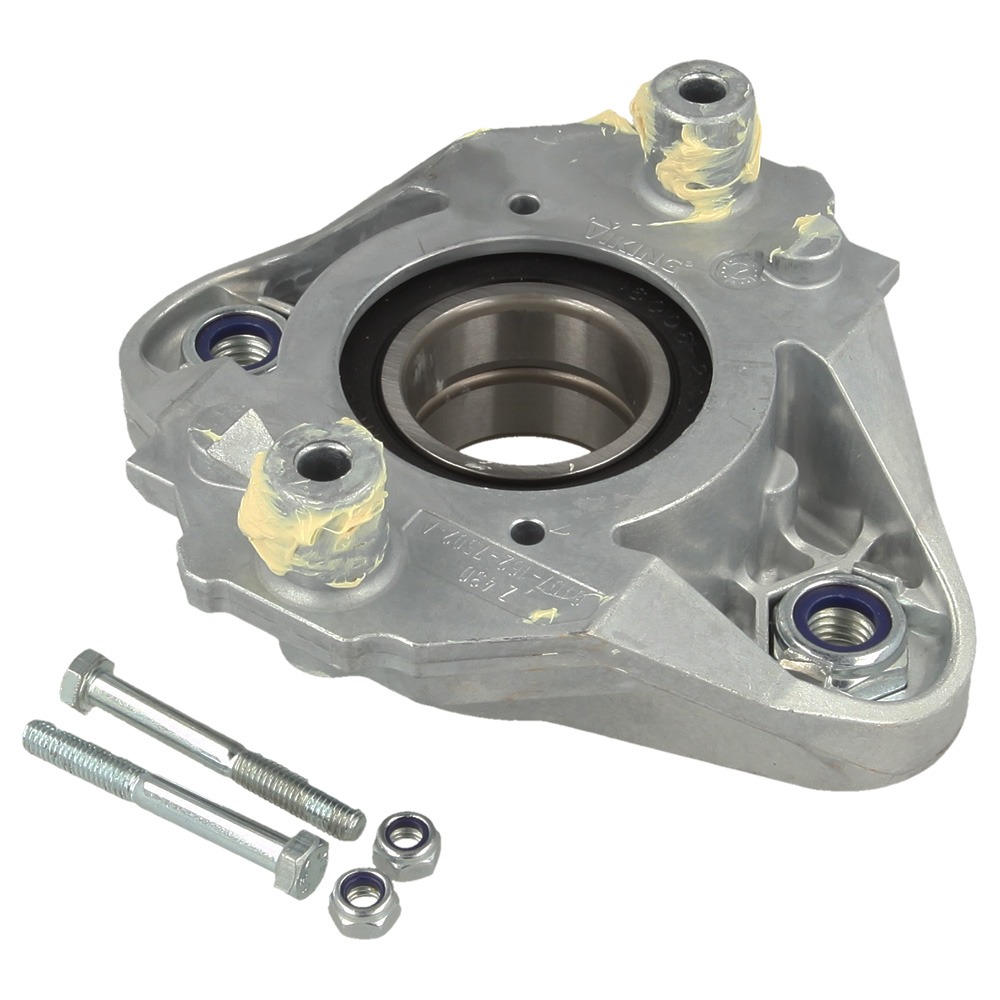

37	ST6107 160 2601 Available to backorder	Mounting device (Contains 38+39+40)	£30.36 £25.30
38	ST9503 003 5632 Available to backorder	Grooved ball bearing 6006-2RSD EMQ	£9.58 £7.98
40	ST9212 260 1300 Available to backorder	Hexagon nut M10	£0.88 £0.73
41	ST6107 706 8210 Available to backorder	Guard plate	£4.84 £4.03
42	ST9212 260 0705 In stock	Hexagon nut M5	£0.34 £0.28
43	ST6375 140 7290 Available to backorder	Protective grating (Contains 44)	£35.42 £29.52
44	ST9039 488 9072 Available to backorder	Screw 10-32x3/8"	£1.42 £1.18
100	ST9075 478 4105 Available to backorder	Pan head screw IS D5x12	£0.48 £0.40
101	ST6375 007 1050 Available to backorder	Set Clutch shoe (Contains 32)	£61.60 £51.33
