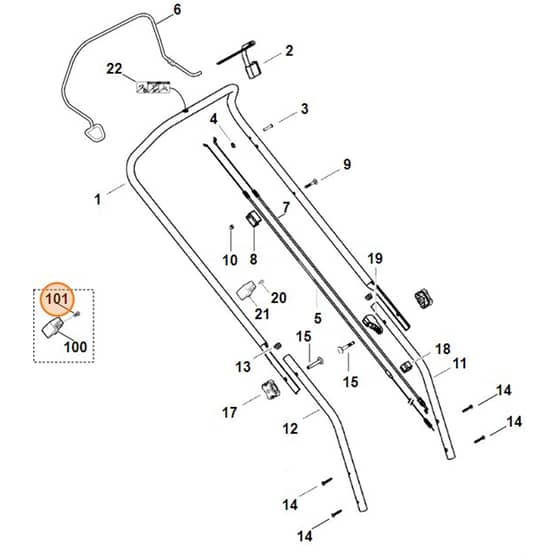

Viking MB448.0 TX - Handle - Parts Diagram

Ref. Img. Part No. Details
  1 Upper handlebar
Upper handlebar
ST6336 703 1215 Out of stock
Upper handlebar
£57.74 £48.12

  2 Switch lever
Switch lever
ST6336 760 1500 Out of stock
Switch lever
£20.08 £16.73

  4 Retaining ring
Retaining ring
ST6100 708 7700 Out of stock
Retaining ring
£1.26 £1.05

  5 Cable
Cable
ST6336 700 7510 Out of stock
Cable
£18.98 £15.82

  6 Switch lever
Switch lever
ST6336 764 0210 Out of stock
Switch lever
£25.68 £21.40

  8 Bracket
Bracket
ST6336 703 6900 Out of stock
Bracket
£3.89 £3.24

  9 Flat head screw M6x40
Flat head screw M6x40
ST9027 068 1400 Out of stock
Flat head screw M6x40
£1.28 £1.07

  10 Cap nut M6
Cap nut M6
ST9240 216 0900 Out of stock
Cap nut M6
£0.50 £0.42

  11 Lower handlebar
Lower handlebar
ST6356 763 4800 Out of stock
Lower handlebar
£20.33 £16.94

  12 Lower handlebar
Lower handlebar
ST6356 763 4805 Out of stock
Lower handlebar
£21.20 £17.67

  13 Plug
Plug
ST6101 703 2800 Out of stock
Plug
£0.76 £0.63

  14 Self-tapping screw P5x30
Self-tapping screw P5x30
ST9104 007 4294 Out of stock
Self-tapping screw P5x30
£1.15 £0.96

  15 Screw M8x50
Screw M8x50
ST0000 703 3705 Out of stock
Screw M8x50
£2.02 £1.68

  17 Rotary handle
Rotary handle
ST0000 760 1800 Out of stock
Rotary handle
£9.60 £8.00

  18 Cable Clips
Cable Clips
ST6100 703 3100 Out of stock
Cable Clips
£4.02 £3.35

  19 Guide
Guide
ST6320 706 6610 Out of stock
Guide
£2.02 £1.68

  20 Self-tapping screw M5x16
Self-tapping screw M5x16
ST9039 488 0984 Out of stock
Self-tapping screw M5x16
£1.00 £0.83

  21 Cable guide (Contains 20)
Cable guide (Contains 20)
ST0000 760 3811 Out of stock
Cable guide (Contains 20)
£10.32 £8.60

  22 Label
Label
ST6336 967 4400 Out of stock
Label
£2.36 £1.97

  100 Cable guide (Contains 101)
Cable guide (Contains 101)
ST0000 760 3810 Out of stock
Cable guide (Contains 101)
£6.46 £5.38

  101 Pan head screw IS D5x16
Pan head screw IS D5x16
ST9075 478 4117 Out of stock
Pan head screw IS D5x16
£1.00 £0.83


Description

Viking MB448.0 TX - Handle - Parts Diagram
