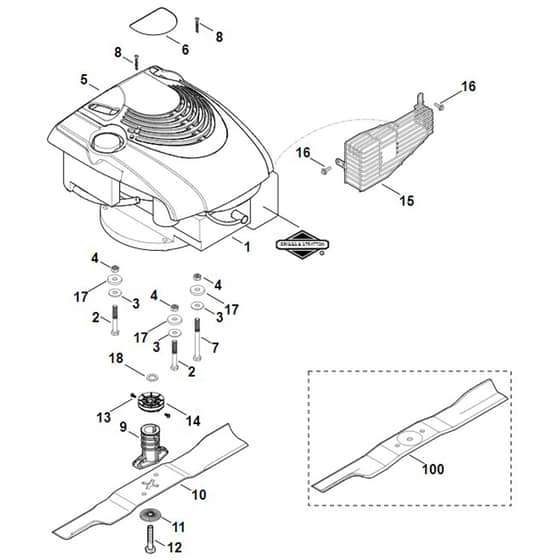

Viking MB448.0 T - Engine - Blade - Parts Diagram

Description

	Part No.	Details
2	ST9007 319 1970 Available to backorder	Hexagon head screw M8x60	£2.20 £1.83
3	ST9307 021 0180 Available to backorder	Washer 84	£0.48 £0.40
4	ST9214 320 1105 Available to backorder	Lock nut M8	£0.66 £0.55
5	ST0000 082 0413 Available to backorder	Cover assy.	£42.80 £35.67
8	ST9104 003 0820 Available to backorder	Screw IS P4x30	£0.88 £0.73
9	ST6105 702 5021 Available to backorder	Blade bushing	£15.94 £13.28
10	ST6356 702 0101 Available to backorder	Blade	£34.46 £28.72
11	ST0000 702 6600 Available to backorder	Washer	£4.18 £3.48
12	ST9008 341 9076 Available to backorder	Hexagon head screw 3/8"x2"	£1.98 £1.65
13	ST9104 007 4260 In stock	Self-tapping screw P5x12	£0.76 £0.63
14	ST6336 704 1000 Available to backorder	V-belt pulley	£11.00 £9.17
15	ST6375 140 7290 Available to backorder	Protective grating (Contains 17)	£35.42 £29.52
16	ST9039 488 9072 Available to backorder	Screw 10-32x3/8"	£1.42 £1.18
17	ST6356 708 9300 Available to backorder	Washer 105x24x2	£1.20 £1.00
18	ST6336 702 1800 Available to backorder	Washer 13x196x2	£1.32 £1.10
