Viking MB443.1 T - Rear Axle - Height Adjustment - Parts Diagram

Description

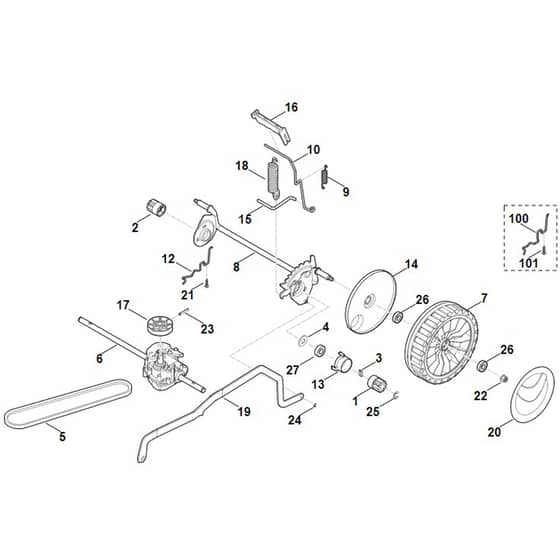

Viking MB443.1 T - Rear Axle - Height Adjustment - Parts Diagram

	Part No.	Details
1	ST6105 704 7400 In stock	Pinion	£14.75 £12.29
2	ST6105 704 7410 In stock	Pinion	£14.95 £12.46
3	ST0000 704 8300 In stock	Freewheel key	£1.76 £1.47
4	ST6103 704 7910 In stock	Protection disk	£1.19 £0.99
5	ST6336 704 2100 In stock	V-belt	£20.99 £17.49
6	ST6338 640 0100 Available to backorder	Gear box assy. (Contains 17+23)	£97.32 £81.10
7	ST0000 700 0415 In stock	Drive wheel 200 (Contains 14+26)	£27.47 £22.89
8	ST6338 700 2415 In stock	Axle	£50.06 £41.72
9	ST6338 703 5100 In stock	Tension spring	£2.02 £1.68
10	ST6338 703 6700 Available to backorder	Lever	£9.91 £8.26
12	ST6338 704 1205 Available to backorder	Axle bracket right	£4.45 £3.71
13	ST6338 704 3200 Available to backorder	Sleeve	£3.41 £2.84
14	ST6338 704 3600 Available to backorder	Cover	£13.76 £11.47
15	ST6338 763 6000 Available to backorder	Interlock lever	£1.72 £1.43
16	ST6338 791 4800 Available to backorder	Triggering lever	£1.37 £1.14
17	ST6350 704 1000 Available to backorder	V-belt pulley	£10.14 £8.45
18	ST6358 703 5100 Available to backorder	Tension spring	£11.51 £9.59
19	ST6338 703 8810 Available to backorder	Translation lever	£45.74 £38.12
20	ST6375 704 0301 In stock	Wheel cap	£7.08 £5.90
22	ST9216 261 1100 In stock	Hexagon nut M8	£0.79 £0.66
23	ST9380 620 2660 Available to backorder	Roll pin 5x26	£0.86 £0.72
24	ST9460 624 0400 In stock	E-clip 4	£0.53 £0.44
25	ST9460 624 1001 In stock	E-clip 10	£0.37 £0.31
26	ST9503 003 5297 Available to backorder	Grooved ball bearing 6001-2TRS	£5.77 £4.81
100	ST6338 704 1200 Available to backorder	Axle bracket left ( Up to Serial Number 434428694 )	£4.20 £3.50
101	ST9104 007 4289 In stock	Self-tapping screw P5x20 ( Up to Serial Number 434428694 )	£0.95 £0.79
