Viking MB443.0 - Engine - Blade - Parts Diagram

Description

	Part No.	Details
2	ST9007 319 1970 Available to backorder	Hexagon head screw M8x60	£2.20 £1.83
3	ST9307 021 0180 Available to backorder	Washer 84	£0.48 £0.40
4	ST9214 320 1105 Available to backorder	Lock nut M8	£0.66 £0.55

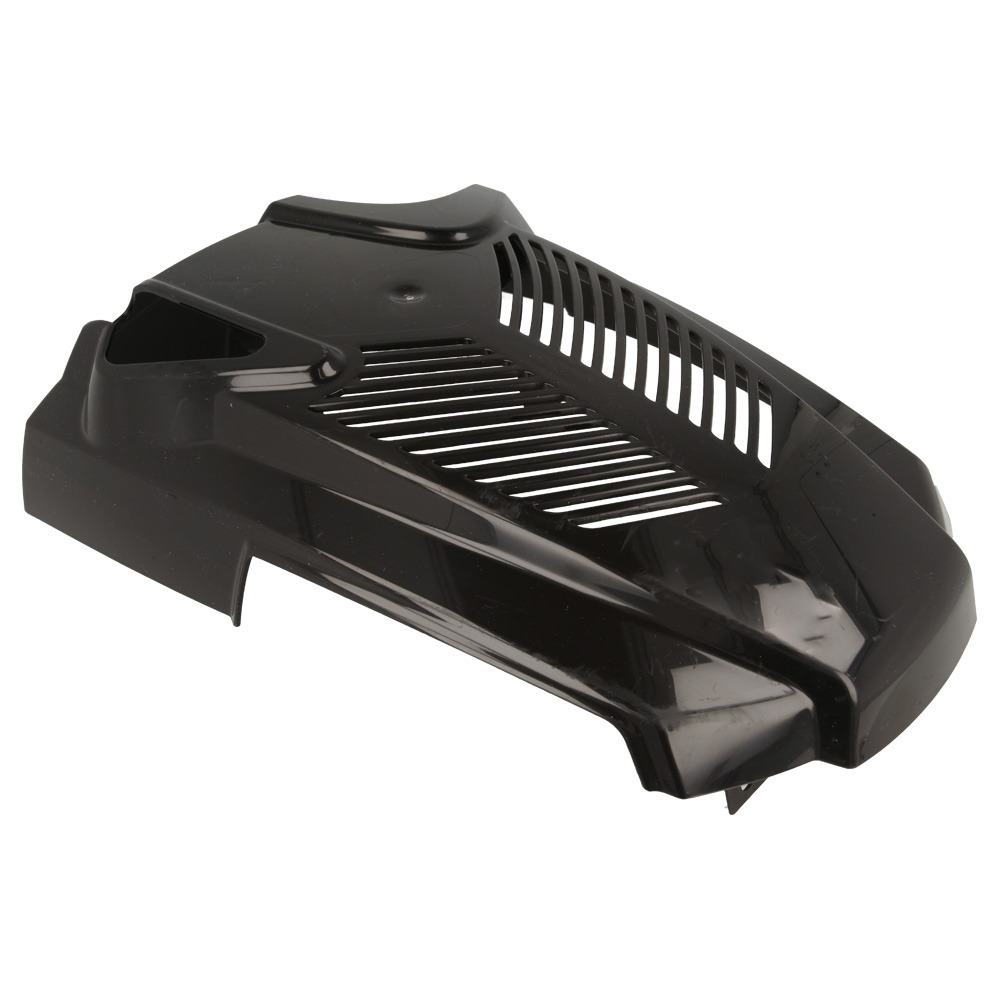

5	ST0000 082 0417 Available to backorder	Cover	£24.42 £20.35
8	ST9039 488 9072 Available to backorder	Screw 10-32x3/8"	£1.42 £1.18
9	ST6105 702 5021 Available to backorder	Blade bushing	£15.94 £13.28
10	ST6336 702 0100 Available to backorder	Blade	£28.60 £23.83
11	ST0000 702 6600 Available to backorder	Washer	£4.18 £3.48
12	ST9008 341 9076 Available to backorder	Hexagon head screw 3/8"x2"	£1.98 £1.65
13	ST6356 708 9300 Available to backorder	Washer 105x24x2	£1.20 £1.00
101	ST0000 082 0400 Available to backorder	Cover ( Up to Serial Number 432251554 )	£30.48 £25.40
103	ST9307 020 0120 Available to backorder	Washer 53 ( Up to Serial Number 432352926 )	£0.48 £0.40
104	ST9101 021 3780 Available to backorder	Self-tapping screw 4.8x16 ( Up to Serial Number 432352926 )	£0.88 £0.73
