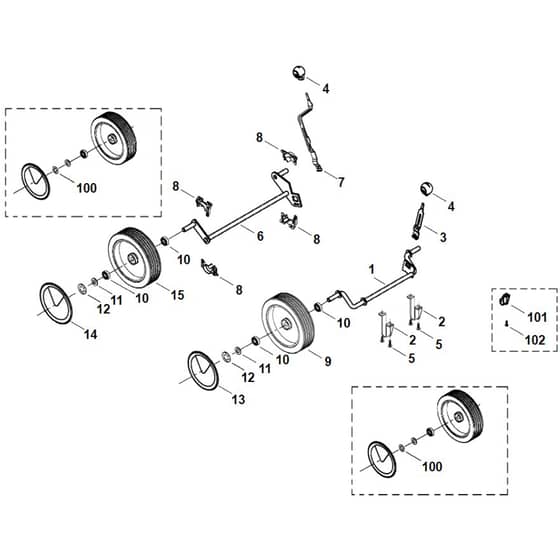

Viking MB410 - Chassis - Parts Diagram

Part No. mb410_chassis-group

Description

	Part No.	Details
1	ST6336 700 2400 Available to backorder	Axle	£38.14 £31.78
2	ST6356 704 1200 Available to backorder	Axle bracket	£4.20 £3.50
3	ST6336 703 6700 Available to backorder	Adjusting lever	£10.46 £8.72
4	ST0000 989 8100 Available to backorder	Handle	£7.40 £6.17
5	ST9104 007 4260 In stock	Self-tapping screw P5x12	£0.83 £0.69
7	ST6336 703 6710 Available to backorder	Adjusting lever	£14.34 £11.95
8	ST6336 704 1210 Available to backorder	Axle bracket	£4.00 £3.33
10	ST9503 003 9011 Available to backorder	Grooved ball bearing 27M-36x12	£6.25 £5.21
12	ST6106 704 5110 Available to backorder	Retaining ring	£1.14 £0.95

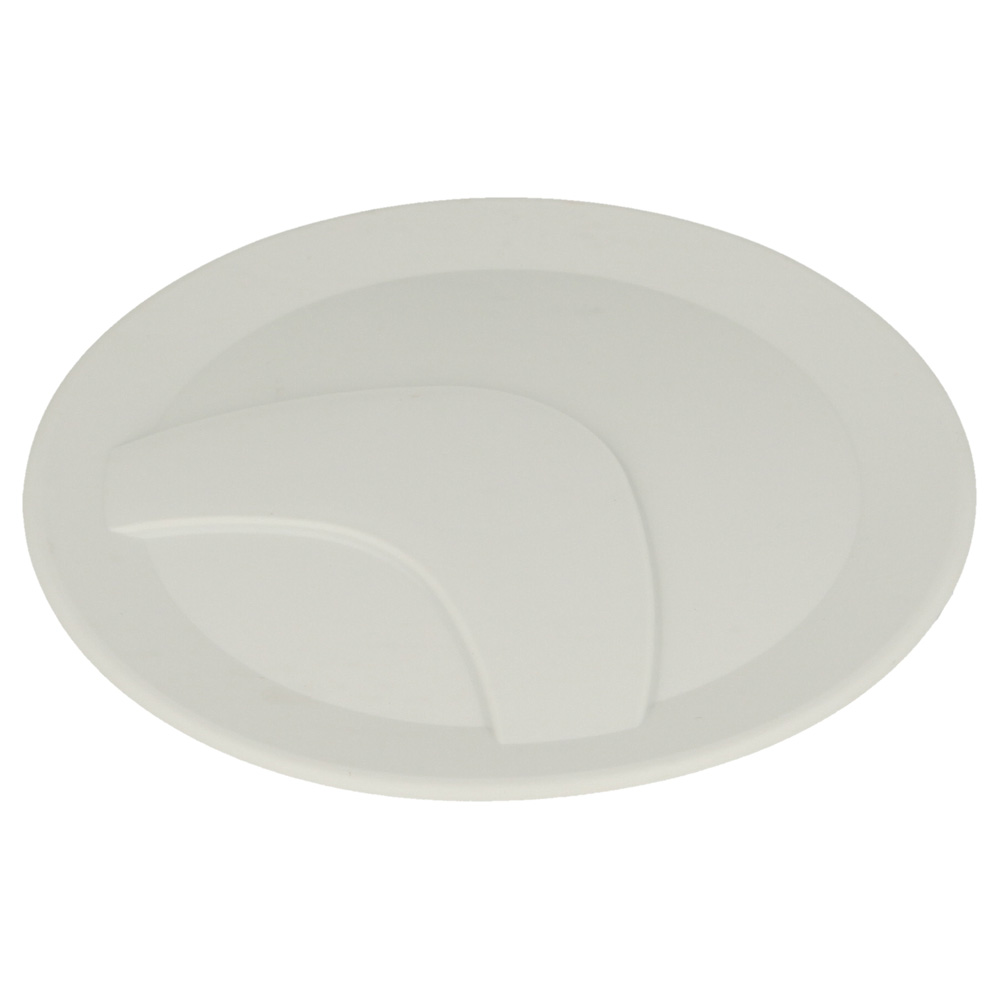

13	ST6340 704 0301 Available to backorder	Wheel cap	£5.42 £4.52
15	ST6100 700 0401 In stock	Wheel (Contains 10)	£20.16 £16.80
100	ST9991 003 1120 Available to backorder	Quick-fixing device ( Up to Serial Number 430343760 )	£1.72 £1.43
102	ST9104 007 4270 In stock	Self-tapping screw P5x16 ( Up to Serial Number 430524923 )	£0.95 £0.79
