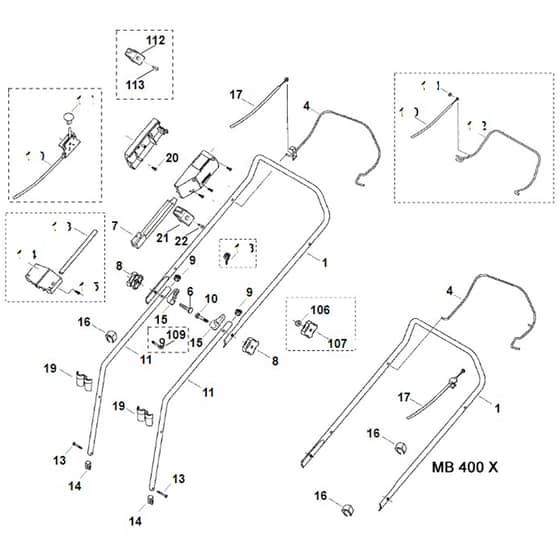

Viking MB400 X - Handle - Parts Diagram

Ref. Img. Part No. Details
  1 Upper handlebar ST6103 703 1251
Upper handlebar
Out of stock
£57.46 £47.88

  4 Switch lever ST6103 760 1520
Switch lever
Out of stock
£22.76 £18.97

  7 Guide right ST6103 706 6605
Guide right
Out of stock
£1.56 £1.30

  8 Rotary handle ST0000 760 1800
Rotary handle
Out of stock
£9.60 £8.00

  9 Plug ST6101 703 2800
Plug
Out of stock
£0.76 £0.63

  10 Screw M8x50 ST0000 703 3705
Screw M8x50
Out of stock
£2.02 £1.68

  13 Self-tapping screw P6x40 ST9104 007 4465
Self-tapping screw P6x40
Out of stock
£1.43 £1.19

  14 Plug ST6118 703 2800
Plug
Out of stock
£1.26 £1.05

  15 Guide ST6320 706 6610
Guide
Out of stock
£2.02 £1.68

  16 Cable Clips ST6100 703 3100
Cable Clips
Out of stock
£4.02 £3.35

  17 Cable ST6118 700 7520
Cable
Out of stock
£17.47 £14.56

  19 Insert ST6103 708 7500
Insert
Out of stock
£2.04 £1.70

  20 Self-tapping screw P5x12 ST9104 007 4260
Self-tapping screw P5x12
Out of stock
£0.86 £0.72

  21 Cable guide (Contains 22) ST0000 760 3811
Cable guide (Contains 22)
Out of stock
£10.32 £8.60

  22 Self-tapping screw M5x16 ST9039 488 0984
Self-tapping screw M5x16
Out of stock
£1.00 £0.83

  109 Cable guide ST6105 760 3801
Cable guide
Out of stock
£5.68 £4.73

  112 Cable guide (Contains 113) ST0000 760 3810
Cable guide (Contains 113)
Out of stock
£6.46 £5.38

  113 Pan head screw IS D5x16 ST9075 478 4117
Pan head screw IS D5x16
Out of stock
£1.00 £0.83


Description

Viking MB400 X - Handle - Parts Diagram
