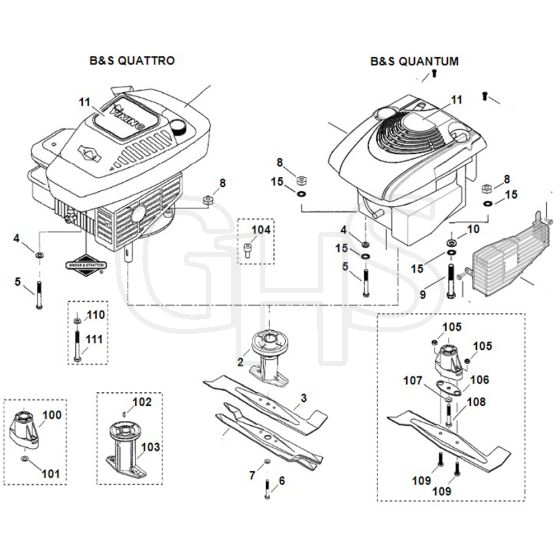

Viking MB400 M - Engine - Blade - Parts Diagram

Name: Viking MB400 M - Engine - Blade - Parts Diagram
SKU: mb400_m_engine_blade-group
Price: 0.4 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Viking MB400 M - Engine - Blade - Parts Diagram

Description

Viking MB400 M - Engine - Blade - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	ST6118 702 5001 Available to backorder	Blade bushing	£18.92 £15.77
3	ST6118 702 0100 Available to backorder	Blade	£26.50 £22.08
4	ST9307 021 0180 Available to backorder	Washer 84	£0.48 £0.40
5	ST9007 319 2010 Available to backorder	Hexagon head screw M8x80	£2.42 £2.02
6	ST9008 319 9075 Available to backorder	Hexagon head screw 3/8"x85	£2.86 £2.38
7	ST0000 702 6600 Available to backorder	Washer	£4.18 £3.48
8	ST9214 320 1105 Available to backorder	Lock nut M8	£0.66 £0.55
9	ST9007 319 2060 Available to backorder	Hexagon head screw M8x110	£3.08 £2.57
10	ST9289 021 0190 Available to backorder	Washer 9	£0.48 £0.40
10	ST9309 021 0180 Available to backorder	Washer 8.4	£0.48 £0.40
12	ST6118 702 0110 Available to backorder	Blade	£31.24 £26.03
13	ST0000 082 0413 Available to backorder	Cover assy.	£42.80 £35.67
14	ST9104 003 0820 Available to backorder	Screw IS P4x30	£0.88 £0.73
15	ST9460 624 4030 Available to backorder	E-clip 8.4	£0.48 £0.40
16	ST6375 140 7290 Available to backorder	Protective grating (Contains 17)	£35.42 £29.52
17	ST9039 488 9072 Available to backorder	Screw 10-32x3/8"	£1.42 £1.18
102	ST9482 435 0820 Available to backorder	Woodruff key 4x6.5 ( Up to Serial Number 048471590 )	£1.00 £0.83
105	ST9212 260 1100 In stock	Hexagon nut M8	£0.66 £0.55
109	ST9008 319 1860 Available to backorder	Hexagon head screw M8x30 ( Up to Serial Number 032077808 )	£1.32 £1.10
110	ST9307 020 0200 Available to backorder	Washer 105 ( Up to Serial Number 035905075 )	£0.48 £0.40
111	ST9075 478 4850 Available to backorder	Pan head screw D9x70 ( Up to Serial Number 035905075 )	£1.36 £1.13
