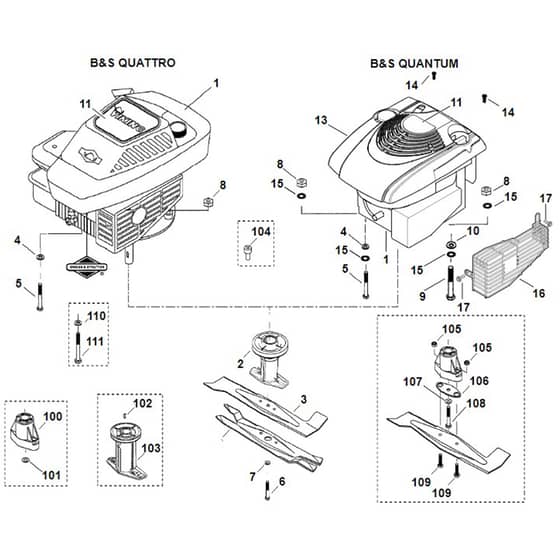

Viking MB400 - Engine - Blade - Parts Diagram

Part No. mb400_engine_blade-group

Description

	Part No.	Details
2	ST6118 702 5001 In stock	Blade bushing	£20.26 £16.88
3	ST6118 702 0100 Available to backorder	Blade	£27.41 £22.84
4	ST9307 021 0180 Available to backorder	Washer 84	£0.35 £0.29
5	ST9007 319 2010 Available to backorder	Hexagon head screw M8x80	£2.51 £2.09
6	ST9008 319 9075 In stock	Hexagon head screw 3/8"x85	£3.07 £2.56
7	ST0000 702 6600 In stock	Washer	£4.48 £3.73
8	ST9214 320 1105 In stock	Lock nut M8	£0.68 £0.57
9	ST9007 319 2060 Available to backorder	Hexagon head screw M8x110	£3.19 £2.66
10	ST9289 021 0190 Available to backorder	Washer 9	£0.35 £0.29
10	ST9309 021 0180 Available to backorder	Washer 8.4	£0.35 £0.29
13	ST0000 082 0413 Available to backorder	Cover assy.	£44.28 £36.90
14	ST9104 003 0820 Available to backorder	Screw IS P4x30	£0.91 £0.76
15	ST9460 624 4030 Available to backorder	E-clip 8.4	£0.35 £0.29
16	ST6375 140 7290 Available to backorder	Protective grating (Contains 17)	£36.64 £30.53
17	ST9039 488 9072 In stock	Screw 10-32x3/8"	£1.46 £1.22
102	ST9482 435 0820 Available to backorder	Woodruff key 4x6.5 ( Up to Serial Number 048471590 )	£1.03 £0.86
105	ST9212 260 1100 In stock	Hexagon nut M8	£0.72 £0.60
109	ST9008 319 1860 Available to backorder	Hexagon head screw M8x30 ( Up to Serial Number 032077808 )	£1.37 £1.14
110	ST9307 020 0200 Available to backorder	Washer 105 ( Up to Serial Number 035905075 )	£0.46 £0.38
111	ST9075 478 4850 Available to backorder	Pan head screw D9x70 ( Up to Serial Number 035905075 )	£1.40 £1.17
