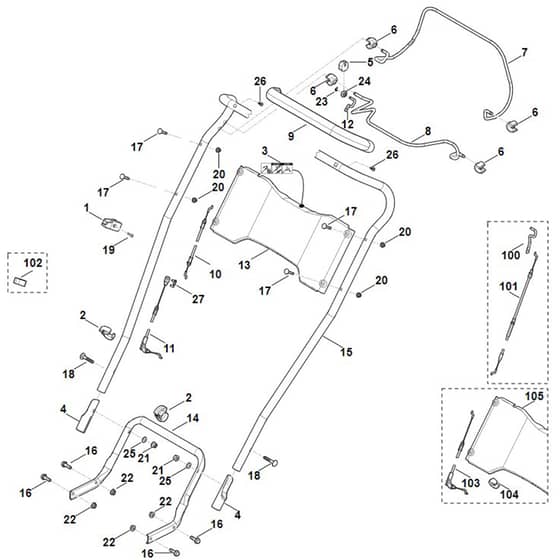

Viking MB4.1 RTP - Handle - Parts Diagram

Ref. Img. Part No. Details
  1 Cable guide (Contains 19)
Cable guide (Contains 19)
ST0000 760 3801 Out of stock
Cable guide (Contains 19)
£9.56 £7.97

  2 Cable Clips
Cable Clips
ST0000 703 3100 Out of stock
Cable Clips
£3.48 £2.90

  2 Cable Clips
Cable Clips
ST0000 703 3101 Out of stock
Cable Clips
£3.48 £2.90

  3 Label
Label
ST6336 967 4400 Out of stock
Label
£2.36 £1.97

  4 Sleeve
Sleeve
ST6375 703 3800 Out of stock
Sleeve
£7.43 £6.19

  5 Guide
Guide
ST6378 704 3510 Out of stock
Guide
£3.89 £3.24

  6 Bearing piece
Bearing piece
ST6364 763 4000 Out of stock
Bearing piece
£3.89 £3.24

  7 Switch lever
Switch lever
ST6378 764 0201 Out of stock
Switch lever
£25.32 £21.10

  8 Switch lever
Switch lever
ST6378 764 0210 Out of stock
Switch lever
£23.03 £19.19

  9 Handle
Handle
ST6378 790 0500 Out of stock
Handle
£17.24 £14.37

  10 Cable
Cable
ST6383 700 7521 Out of stock
Cable
£29.54 £24.62

  11 Cable
Cable
ST6383 700 7533 In stock
Cable
£32.28 £26.90

  12 Adjusting device
Adjusting device
ST6378 704 4011 Out of stock
Adjusting device
£4.02 £3.35

  13 Panel
Panel
ST6383 760 1721 Out of stock
Panel
£77.04 £64.20

  14 Lower handlebar
Lower handlebar
ST6383 763 4816 Out of stock
Lower handlebar
£39.96 £33.30

  15 Upper handlebar (Contains 9+26)
Upper handlebar (Contains 9+26)
ST6383 780 3011 Out of stock
Upper handlebar (Contains 9+26)
£56.99 £47.49

  16 Pan head screw M8x25
Pan head screw M8x25
ST9025 313 5010 Out of stock
Pan head screw M8x25
£1.39 £1.16

  17 Flat head screw M6x35
Flat head screw M6x35
ST9027 068 1380 Out of stock
Flat head screw M6x35
£1.39 £1.16

  18 Flat head screw M8x50
Flat head screw M8x50
ST9027 318 1950 Out of stock
Flat head screw M8x50
£2.02 £1.68

  19 Self-tapping screw M5x16
Self-tapping screw M5x16
ST9039 488 0984 Out of stock
Self-tapping screw M5x16
£1.00 £0.83

  20 Hexagon nut M6
Hexagon nut M6
ST9216 261 0901 Out of stock
Hexagon nut M6
£0.76 £0.63

  21 Lock nut M8
Lock nut M8
ST9214 320 1105 Out of stock
Lock nut M8
£0.72 £0.60

  22 Hexagon nut M8
Hexagon nut M8
ST9220 263 1100 Out of stock
Hexagon nut M8
£0.86 £0.72

  23 E-clip 5
E-clip 5
ST9460 624 0500 Out of stock
E-clip 5
£0.48 £0.40

  24 Grooved ball bearing 626-2Z
Grooved ball bearing 626-2Z
ST9503 003 9543 Out of stock
Grooved ball bearing 626-2Z
£4.78 £3.98

  25 Washer 84
Washer 84
ST9291 020 0180 Out of stock
Washer 84
£0.40 £0.33

  26 Self-tapping screw P5x16
Self-tapping screw P5x16
ST9104 007 4270 In stock
Self-tapping screw P5x16
£1.00 £0.83

  27 Bolt
Bolt
ST9666 003 9060 Out of stock
Bolt
£1.26 £1.05

  100 Adjusting device ( Up to Serial Number
435613124 )
Adjusting device ( Up to Serial Number
435613124 )
ST6383 704 4000 Out of stock
Adjusting device ( Up to Serial Number 435613124 )
£6.67 £5.56

  101 Cable ( Up to Serial Number
435613124 )
Cable ( Up to Serial Number
435613124 )
ST6383 700 7531 Out of stock
Cable ( Up to Serial Number 435613124 )
£33.19 £27.66

  102 Cable Clips ( Up to Serial Number
436492702 )
Cable Clips ( Up to Serial Number
436492702 )
ST6100 703 3100 Out of stock
Cable Clips ( Up to Serial Number 436492702 )
£4.02 £3.35

  103 Cable ( Up to Serial Number
437208794 )
Cable ( Up to Serial Number
437208794 )
ST6383 700 7532 Out of stock
Cable ( Up to Serial Number 437208794 )
£33.19 £27.66

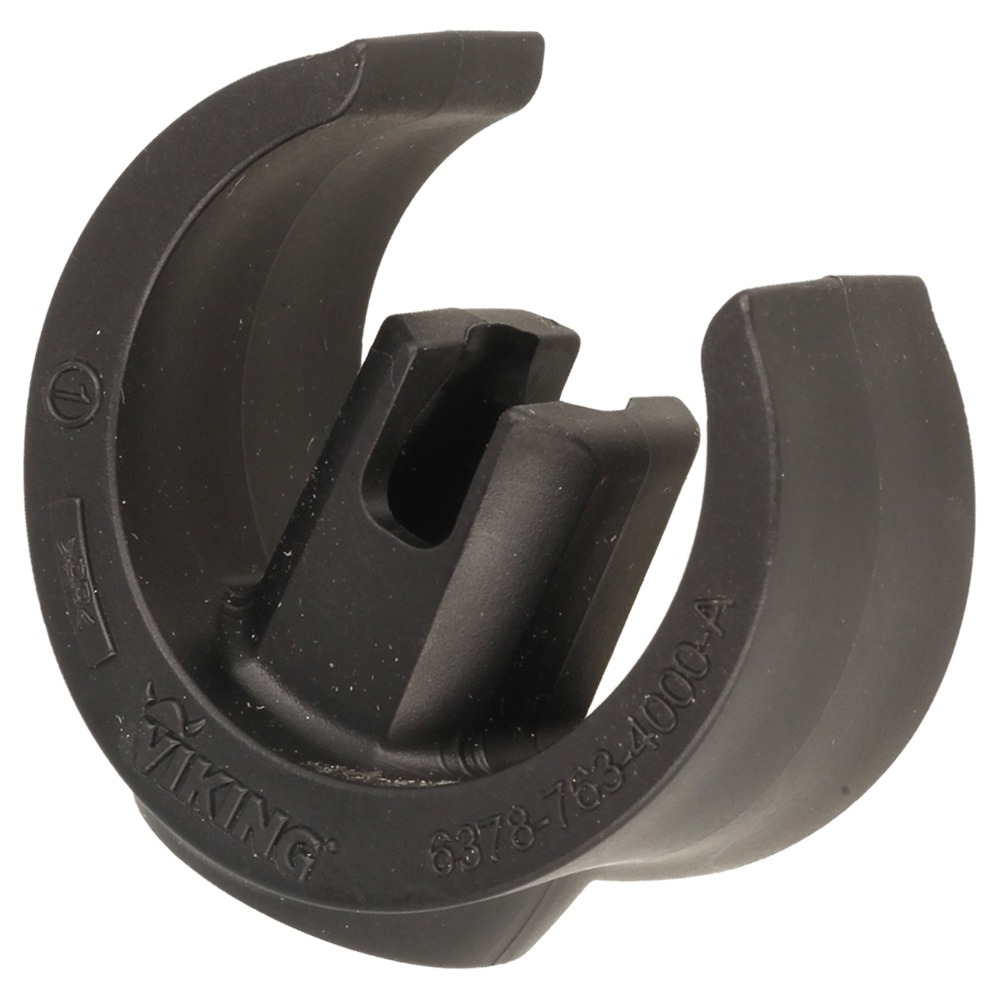

  104 Bearing piece ( Up to Serial Number
437208794 )
Bearing piece ( Up to Serial Number
437208794 )
ST6378 763 4000 Out of stock
Bearing piece ( Up to Serial Number 437208794 )
£3.65 £3.04

  105 Panel ( Up to Serial Number
437208794 )
Panel ( Up to Serial Number
437208794 )
ST6383 760 1720 Out of stock
Panel ( Up to Serial Number 437208794 )
£53.48 £44.57
