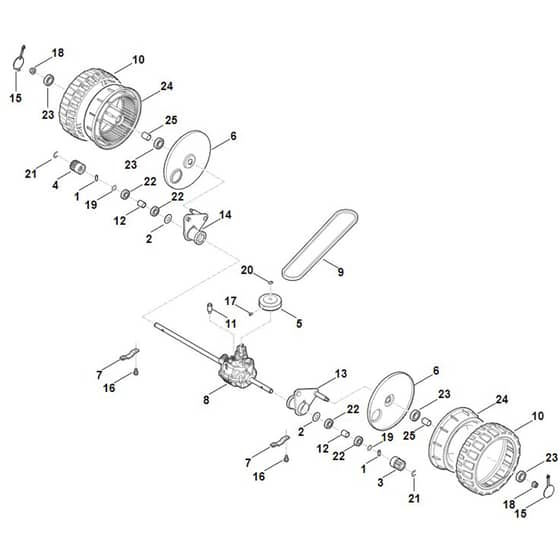

Viking MB4.0 RTP - Front Axle - Gear Box - Parts Diagram

Viking MB4.0 RTP - Front Axle - Gear Box - Parts Diagram
Viking MB4.0 RTP - Front Axle - Gear Box - Parts Diagram

Description

Viking MB4.0 RTP - Front Axle - Gear Box - Parts Diagram

Ref. Img. Part No. Details

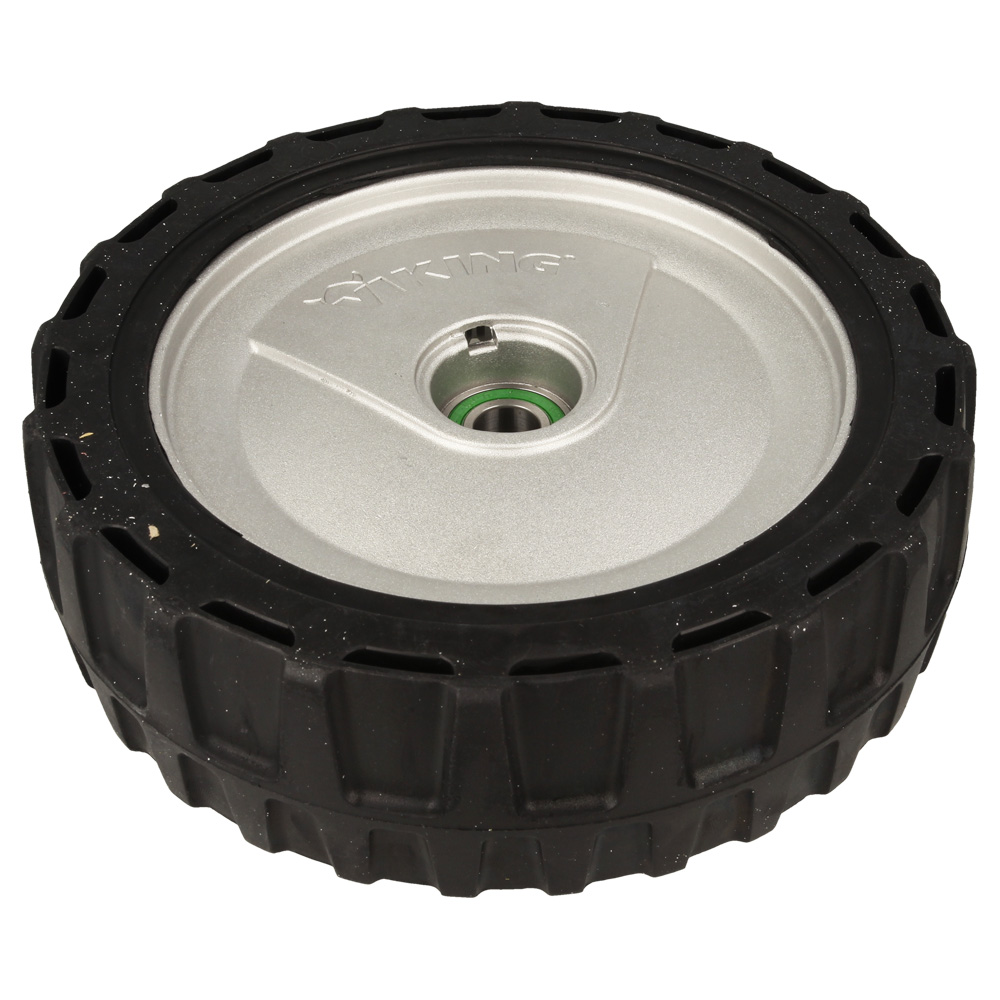

  -1 Wheel assy. (Contains 10+23-25)
Wheel assy. (Contains 10+23-25)
ST6383 700 0400
Available to backorder
Wheel assy. (Contains 10+23-25)
£56.66 £47.22

  1 Freewheel key
Freewheel key
ST0000 704 8300
In stock
Freewheel key
£1.66 £1.38

  2 Protection disk
Protection disk
ST6103 704 7910
Available to backorder
Protection disk
£1.10 £0.92

  3 Pinion
Pinion
ST6105 704 7410
In stock
Pinion
£13.96 £11.63

  4 Pinion
Pinion
ST6105 704 7400
In stock
Pinion
£13.76 £11.47

  5 V-belt pulley assy. (Contains 17)
V-belt pulley assy. (Contains 17)
ST6375 700 2501
Available to backorder
V-belt pulley assy. (Contains 17)
£54.02 £45.02

  6 Cover
Cover
ST6375 704 3600
Available to backorder
Cover
£14.62 £12.18

  7 Axle guard
Axle guard
ST6375 763 2810
Available to backorder
Axle guard
£3.08 £2.57

  8 Gear box assy.
Gear box assy.
ST6383 640 0120
Available to backorder
Gear box assy.
£145.20 £121.00

  9 V-belt
V-belt
ST6383 704 2110
Available to backorder
V-belt
£22.00 £18.33

  10 Tyre
Tyre
ST6383 704 9500
Available to backorder
Tyre
£33.34 £27.78

  11 Support
Support
ST6383 763 3800
Available to backorder
Support
£0.88 £0.73

  12 Distance sleeve
Distance sleeve
ST6383 764 2800
Available to backorder
Distance sleeve
£2.64 £2.20

  13 Swivel plate left
Swivel plate left
ST6383 780 4920
Available to backorder
Swivel plate left
£54.02 £45.02

  14 Swivel plate right
Swivel plate right
ST6383 780 4925
Available to backorder
Swivel plate right
£54.02 £45.02

  15 Cover
Cover
ST6395 706 3410
Available to backorder
Cover
£3.20 £2.67

  16 Self-tapping screw M6x12
Self-tapping screw M6x12
ST9039 488 0996
Available to backorder
Self-tapping screw M6x12
£0.76 £0.63

  17 Grub screw M6x10
Grub screw M6x10
ST9132 216 1250
Available to backorder
Grub screw M6x10
£0.76 £0.63

  18 Hexagon nut M8
Hexagon nut M8
ST9216 261 1100
Available to backorder
Hexagon nut M8
£0.76 £0.63

  19 Washer 12x18x0.5
Washer 12x18x0.5
ST9296 021 1608
Available to backorder
Washer 12x18x0.5
£0.66 £0.55

  20 Circlip 10x1
Circlip 10x1
ST9455 621 0850
In stock
Circlip 10x1
£0.72 £0.60

  21 E-clip 10
E-clip 10
ST9460 624 1000
In stock
E-clip 10
£0.34 £0.28

  22 Grooved ball bearing 6001-2TRS
Grooved ball bearing 6001-2TRS
ST9503 003 5297
In stock
Grooved ball bearing 6001-2TRS
£5.38 £4.48

  23 Grooved ball bearing 6002-2RS
Grooved ball bearing 6002-2RS
ST9503 003 5295
In stock
Grooved ball bearing 6002-2RS
£5.84 £4.87

  23 Grooved ball bearing 6002-2RS
Grooved ball bearing 6002-2RS
ST9503 003 5292
Available to backorder
Grooved ball bearing 6002-2RS
£5.84 £4.87
