Viking MB4.0 RT - Front Axle - Gear Box - Parts Diagram

Name: Viking MB4.0 RT - Front Axle - Gear Box - Parts Diagram
SKU: mb4_0_rt_front_axle_gear_box-group
Price: 0.31 GBP
Availability: InStock

Part No. mb4_0_rt_front_axle_gear_box-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Viking MB4.0 RT - Front Axle - Gear Box - Parts Diagram

Description

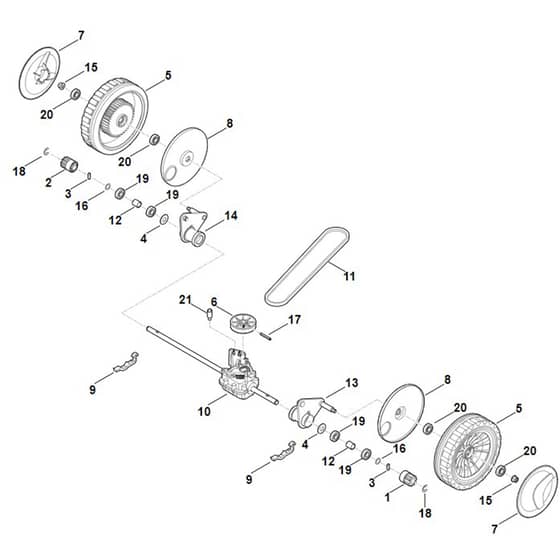

Viking MB4.0 RT - Front Axle - Gear Box - Parts Diagram

	Part No.	Details
1	ST6105 704 7400 In stock	Pinion	£14.75 £12.29
2	ST6105 704 7410 In stock	Pinion	£14.95 £12.46
2	ST0000 640 2505 In stock	Pinion	£13.20 £11.00
3	ST0000 704 8300 In stock	Freewheel key	£1.76 £1.47
4	ST6103 704 7910 In stock	Protection disk	£1.19 £0.99
5	ST0000 700 0425 In stock	Wheel assy. 200 (Contains 8+20)	£27.47 £22.89
6	ST6360 704 1000 Available to backorder	V-belt pulley	£11.83 £9.86
7	ST6375 704 0301 In stock	Wheel cap	£7.08 £5.90
8	ST6375 704 3611 Available to backorder	Cover	£12.86 £10.72
9	ST6375 763 2800 In stock	Axle guard	£2.84 £2.37

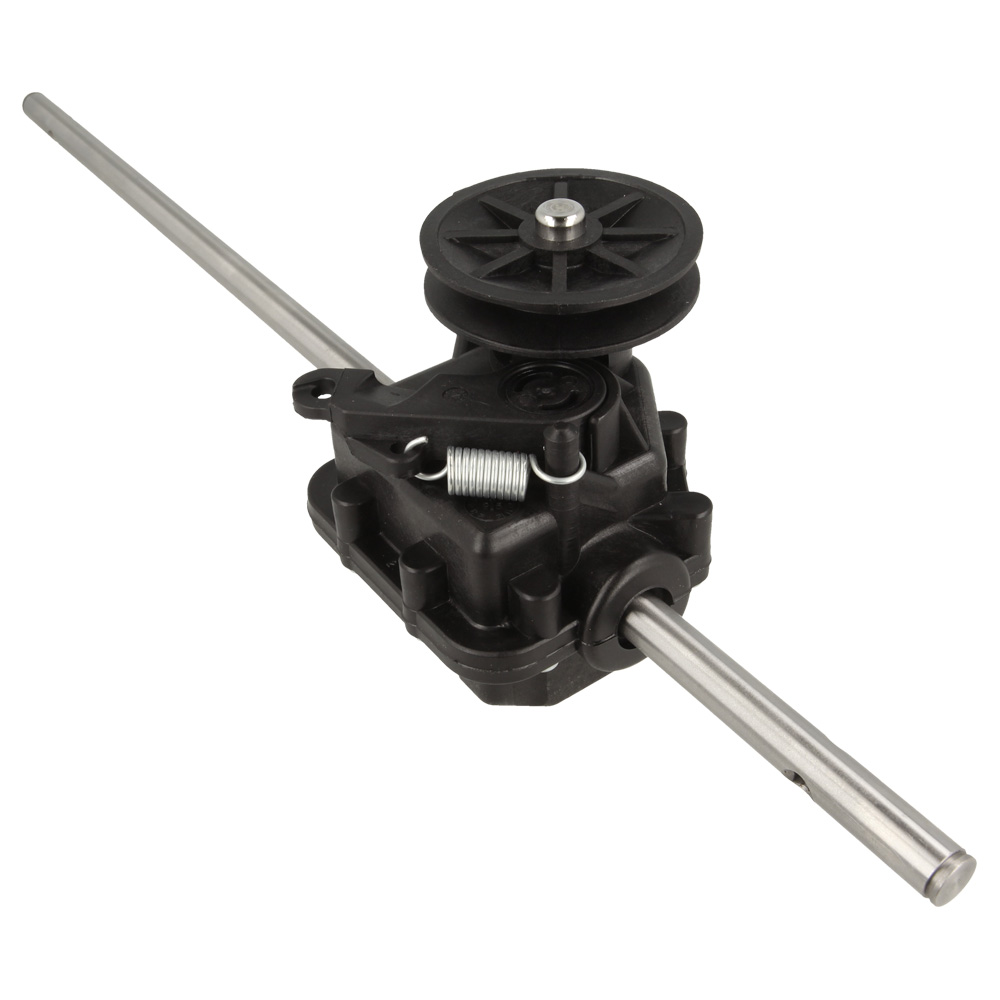

10	ST6383 640 0100 Available to backorder	Gear box assy. (Contains 6+17)	£108.96 £90.80
11	ST6383 704 2100 Available to backorder	V-belt	£22.76 £18.97
12	ST6383 764 2800 Available to backorder	Distance sleeve	£2.84 £2.37
13	ST6383 780 4910 Available to backorder	Swivel plate left	£53.36 £44.47
14	ST6383 780 4915 Available to backorder	Swivel plate right	£53.36 £44.47
15	ST9216 261 1100 In stock	Hexagon nut M8	£0.79 £0.66
16	ST9296 021 1608 In stock	Washer 12x18x0.5	£0.72 £0.60
17	ST9380 620 2730 Available to backorder	Roll pin 5x36	£0.91 £0.76
18	ST9460 624 1000 In stock	E-clip 10	£0.37 £0.31
19	ST9503 003 5297 Available to backorder	Grooved ball bearing 6001-2TRS	£5.77 £4.81
21	ST6383 763 3800 Available to backorder	Support	£0.91 £0.76
