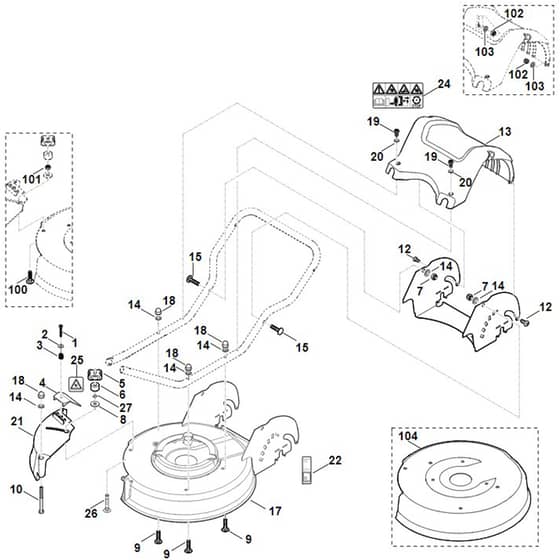

Viking MB3 RC - Housing - Parts Diagram

Name: Viking MB3 RC - Housing - Parts Diagram
SKU: mb3_rc_housing-group
Price: 0.28 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Viking MB3 RC - Housing - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	ST9104 013 4294 Available to backorder	Self-tapping screw P5x30	£1.00 £0.83
1	ST9104 007 4294 Available to backorder	Self-tapping screw P5x30	£1.00 £0.83
2	ST9307 020 0120 Available to backorder	Washer 53	£0.48 £0.40
4	ST6361 706 4400 Available to backorder	Deflector	£5.06 £4.22
5	ST0000 760 1800 In stock	Rotary handle	£9.02 £7.52
6	ST6361 706 7100 Available to backorder	Clamping ring	£4.52 £3.77
8	ST9307 021 0180 Available to backorder	Washer 84	£0.48 £0.40
10	ST9007 318 2040 Available to backorder	Hexagon head screw M8x100	£2.86 £2.38
12	ST9039 488 0974 In stock	Self-tapping screw M5x12	£0.76 £0.63
13	ST6361 706 2105 Available to backorder	Shroud	£57.76 £48.13
14	ST9291 020 0180 Available to backorder	Washer 84	£0.48 £0.40
15	ST9027 068 1900 Available to backorder	Flat head screw M8x40	£1.58 £1.32
15	ST9027 068 1901 Available to backorder	Flat head screw M8x38	£1.42 £1.18
17	ST6361 700 8590 Available to backorder	Housing set (Contains E 16)	£325.32 £271.10
18	ST9240 216 1100 Available to backorder	Cap nut M8	£0.66 £0.55

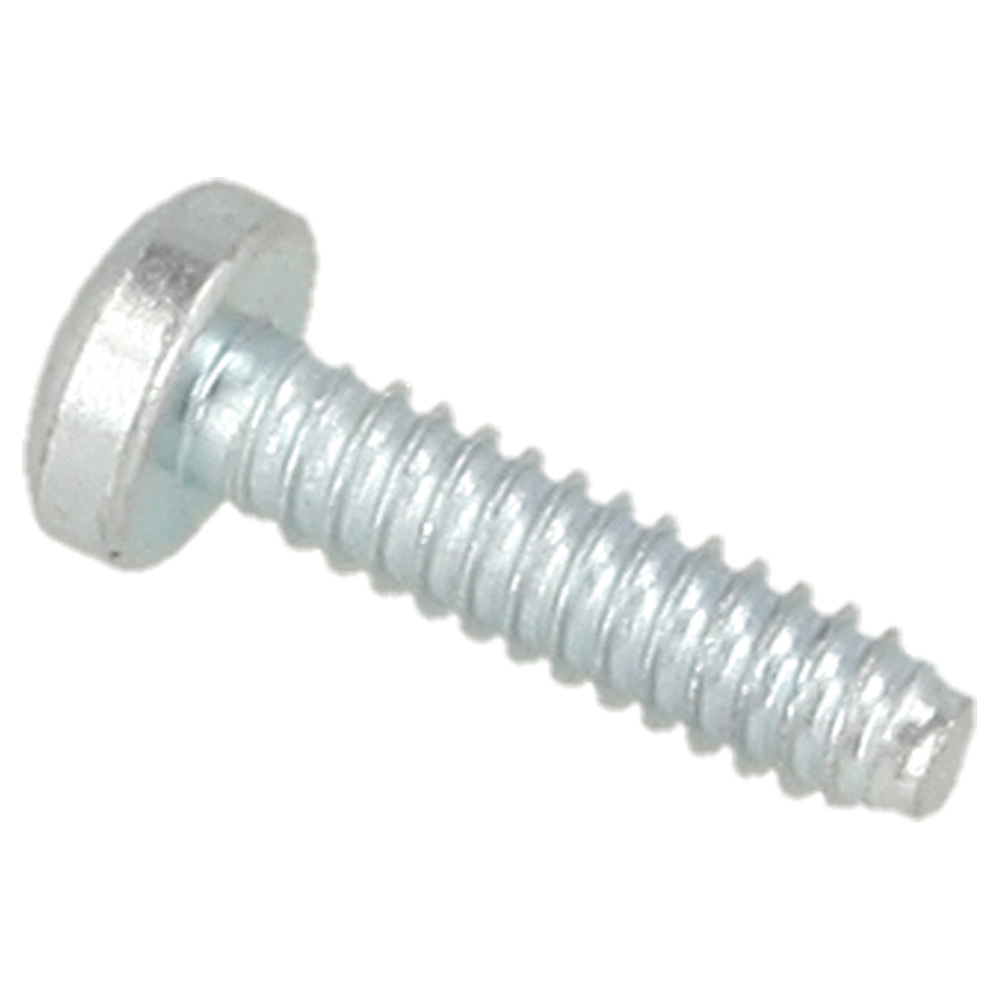

19	ST9075 478 4137 Available to backorder	Pan head screw IS D5x20	£0.88 £0.73
21	ST6361 706 2400 Available to backorder	Flap	£32.90 £27.42
21	ST6361 706 2401 Available to backorder	Flap	£32.90 £27.42
24	ST0000 967 3679 Available to backorder	Warning note	£2.08 £1.73
25	ST0000 967 7218 Available to backorder	Warning note	£2.08 £1.73
26	ST0000 703 3710 Available to backorder	Screw M8x50	£1.76 £1.47
27	ST9460 624 0600 In stock	E-clip 6	£0.34 £0.28
100	ST9027 068 1880 Available to backorder	Screw M8x35	£1.42 £1.18
100	ST9027 068 1881 Available to backorder	Flat head screw M8x35	£1.42 £1.18
101	ST9212 260 1100 In stock	Hexagon nut M8	£0.66 £0.55
102	ST9212 260 0705 In stock	Hexagon nut M5 ( Up to Serial Number 432596062 )	£0.34 £0.28
103	ST9291 020 0120 Available to backorder	Washer 53 ( Up to Serial Number 432596062 )	£0.48 £0.40
