Viking MB3.1 RT - Chassis - Parts Diagram

Name: Viking MB3.1 RT - Chassis - Parts Diagram
SKU: mb3_1_rt_chassis-group
Price: 0.28 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Viking MB3.1 RT - Chassis - Parts Diagram

Description

Viking MB3.1 RT - Chassis - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	ST0000 704 8300 In stock	Freewheel key	£1.66 £1.38
2	ST6103 704 1015 Available to backorder	V-belt pulley	£9.58 £7.98
3	ST6103 704 7910 Available to backorder	Protection disk	£1.10 £0.92
4	ST6105 704 7400 Available to backorder	Pinion	£13.76 £11.47
5	ST6105 704 7410 Available to backorder	Pinion	£13.96 £11.63
6	ST6361 640 0100 Available to backorder	Gear box (Contains 2+39)	£89.10 £74.25
7	ST6336 704 1210 Available to backorder	Axle bracket	£3.86 £3.22
8	ST6364 700 0400 Available to backorder	Wheel assy. 200 (Contains 46)	£20.80 £17.33
9	ST0000 700 0425 In stock	Wheel assy. 200 (Contains 24+42)	£25.64 £21.37
10	ST6361 700 2401 Available to backorder	Axle	£54.22 £45.18
11	ST6361 700 2900 Available to backorder	Adjusting lever assy.	£19.38 £16.15
12	ST6361 703 5100 Available to backorder	Tension spring	£1.54 £1.28
13	ST6361 703 6710 Available to backorder	Lever	£12.22 £10.18
14	ST6361 703 9500 Available to backorder	Notched plate	£1.98 £1.65
15	ST6361 704 2100 Available to backorder	V-belt	£22.00 £18.33
16	ST6361 704 2702 Available to backorder	Support	£13.96 £11.63
17	ST6361 706 3300 Available to backorder	Tube	£8.92 £7.43
18	ST6361 708 6400 Available to backorder	Spacer	£3.20 £2.67
19	ST6361 760 8900 Available to backorder	Adjusting device	£58.84 £49.03
20	ST6361 763 3000 Available to backorder	Bearing bushing	£4.96 £4.13
21	ST6361 780 1000 Available to backorder	Lock	£21.78 £18.15
22	ST6361 780 2101 Available to backorder	Fork for wheel	£68.74 £57.28
23	ST6375 704 0301 In stock	Wheel cap	£6.60 £5.50
24	ST6375 704 3611 Available to backorder	Cover	£12.44 £10.37
25	ST9008 318 1270 Available to backorder	Hexagon head screw M6x14	£0.88 £0.73
26	ST9027 068 1930 Available to backorder	Flat head screw M8x45	£1.54 £1.28
27	ST9039 488 0974 In stock	Self-tapping screw M5x12	£0.76 £0.63
28	ST9039 488 0983 Available to backorder	Self-tapping screw M5x25	£1.00 £0.83
29	ST9104 007 4255 Available to backorder	Self-tapping screw P5x8	£0.76 £0.63
30	ST9104 007 4270 In stock	Self-tapping screw P5x16	£0.88 £0.73
31	ST9212 260 0900 In stock	Hexagon nut M6	£0.48 £0.40
32	ST9214 320 1105 Available to backorder	Lock nut M8	£0.66 £0.55

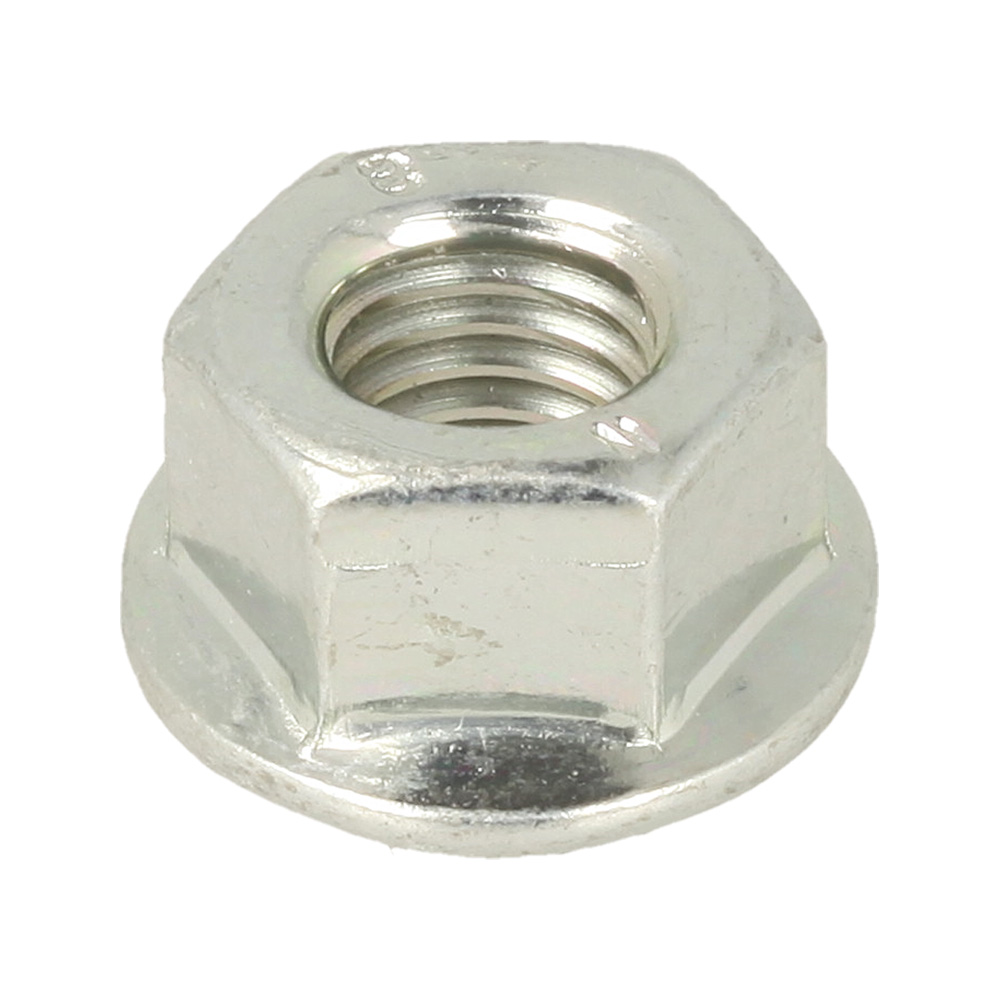

33	ST9216 261 1100 Available to backorder	Hexagon nut M8	£0.76 £0.63
34	ST9291 020 0180 Available to backorder	Washer 84	£0.48 £0.40
37	ST9302 929 4512 Available to backorder	Cap	£0.66 £0.55
38	ST9307 020 0120 Available to backorder	Washer 53	£0.48 £0.40
39	ST9380 620 2700 Available to backorder	Roll pin 5x30	£0.76 £0.63
40	ST9460 624 1000 In stock	E-clip 10	£0.34 £0.28
41	ST9458 621 2200 Available to backorder	Snap ring A20	£0.88 £0.73
42	ST9503 003 5297 In stock	Grooved ball bearing 6001-2TRS	£5.38 £4.48
44	ST9516 003 9500 Available to backorder	Ball 127	£0.66 £0.55
45	ST9691 003 2520 Available to backorder	Compression spring 70x10x204	£1.32 £1.10
47	ST9533 003 9246 Available to backorder	Flange sleeve	£7.26 £6.05
100	ST6336 640 0102 Available to backorder	Gear box ( Up to Serial Number 435490928 ) (Contains 2+39)	£89.10 £74.25
101	ST9455 621 1130 In stock	Circlip 12x1 ( Up to Serial Number 435490928 )	£0.66 £0.55
102	ST9296 021 1608 Available to backorder	Washer 12x18x0.5	£0.66 £0.55
